• Model NO.：Cone Crusher
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：Based on Customer′s Needs
• Finished Size：6-38mm
• Transport Package：Standard Packaging
• Specification：Capacity: 36-2181t,h
• Trademark：CHAENG
• Origin：Xinxiang City, Henan Province, China
• Production Capacity：5000 PCS , Year

Basic Info.

Model NO. Cone Crusher Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Based on Customer′s Needs Finished Size 6-38mm Transport Package Standard Packaging Specification Capacity: 36-2181t/h Trademark CHAENG Origin Xinxiang City, Henan Province, China Production Capacity 5000 PCS / Year

Product Description

Product description

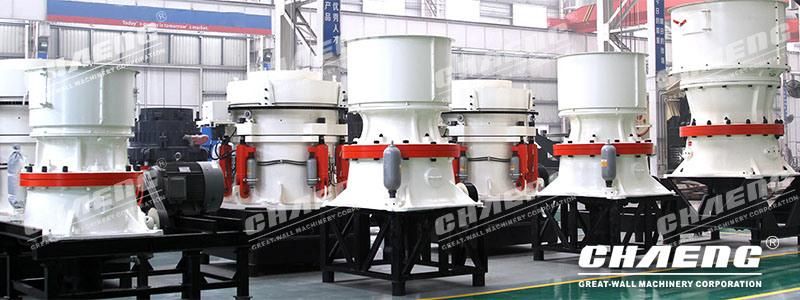

China Single Cylinder Hydraulic Cone Crusher Stone Crusher is a new type of crusher independently developed by CHAENG on the basis of summing up the requirements for sandstone aggregates in cement and concrete for more than 60 years. It can break the materials with medium hard strength and above such as iron ore, river pebbles, granite, etc., and it is the ideal equipment for medium and fine crushing Sand Making Plant.
The single cylinder hydraulic cone crusher made by Xinxiang Great Wall is superior to the ordinary cone crusher on production capacity, particle size, production shape, equipment weight, maintenance and operation.
Capacity    36-2181t/h
Finished size    6-38mm
Application fields    metallurgy, construction, road paving, chemistry and silicate industry

Working Principles

The motor drives the eccentric sleeve by coupling or triangle belt, tansmission shaft and bevel gear. Under the force from the eccentric sleeve, crushing cone part does rotary swing movement around one fixed point. The mantle installed on the movable cone sometime goes close to and sometimes leave the surface of the concave installed on the adjusting sleeve to make the stone be impacted, squeezed, bended and finally be crushed in the crushing cavity. The crushed mineral ore is discharged from the crushing cavity via outlet with the help of its gravity (Stone Crusher Price).

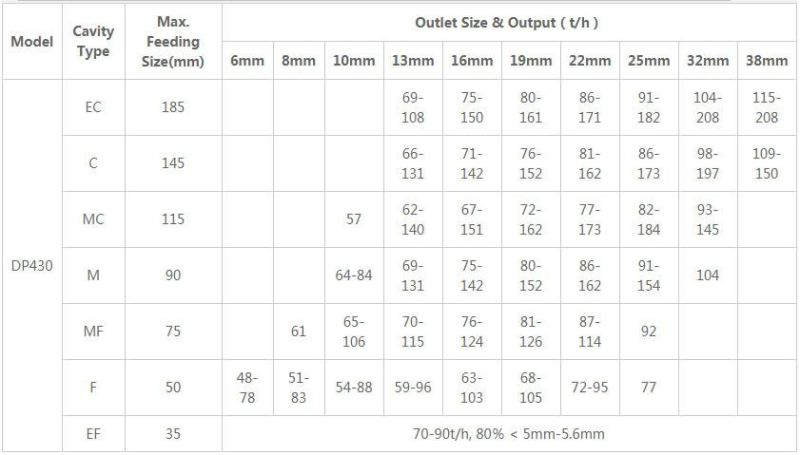

 Stone Cone Crusher Technical Parameters



Stone cone crusher Advantages

1.Strong crushing force, large output

2.There are manifold crushing cavities for medium and fine crushing. Only the fixed cone needs to be changed and the operation is easy.

3.Good shape and high quality

4.Stable performance
 CHAENG's Strength

1.Based on high-end and advanced equipment

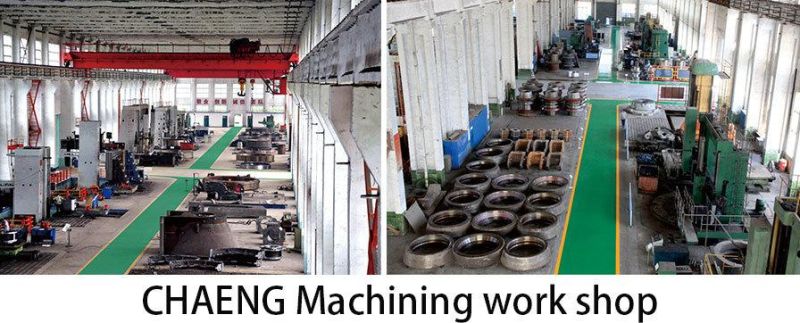

With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.

2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
