Stone Laser Bridge Cutting Machine
Fujian Wanlong Diamond Tool Co., Ltd.- Type：Laser Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：PLC-400,600
- Control：CNC
- Certification：ISO, CE
- Transport Package：Waterproof Pearl Cotton
- Specification：Waterproof pearl cotton
- Trademark：Wanlong
- Origin：China
- HS Code：8464109000
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. PLC-400/600 Control CNC Certification ISO, CE Transport Package Waterproof Pearl Cotton Specification Waterproof pearl cotton Trademark Wanlong Origin China HS Code 8464109000 Production Capacity 50 Sets Per MonthProduct Description

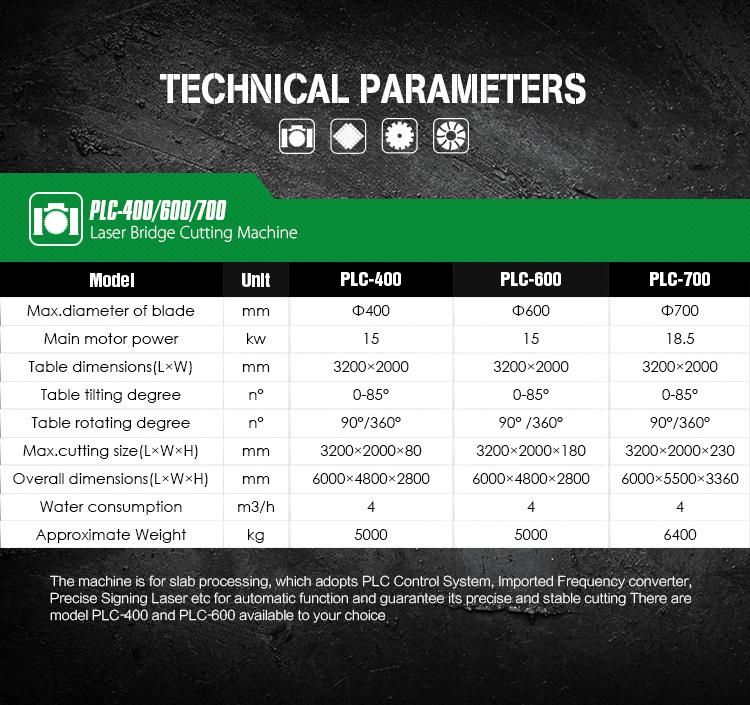

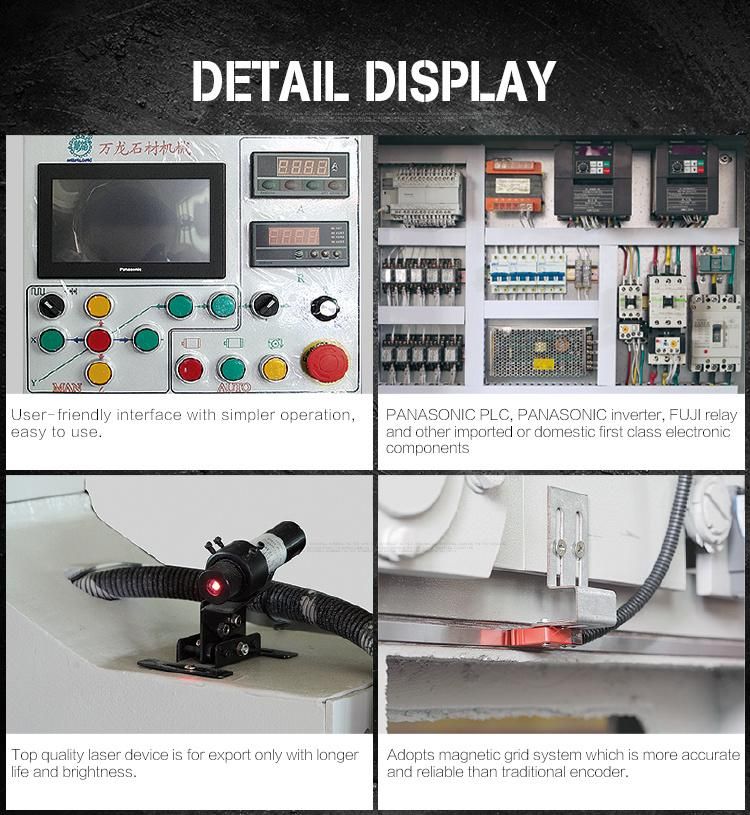

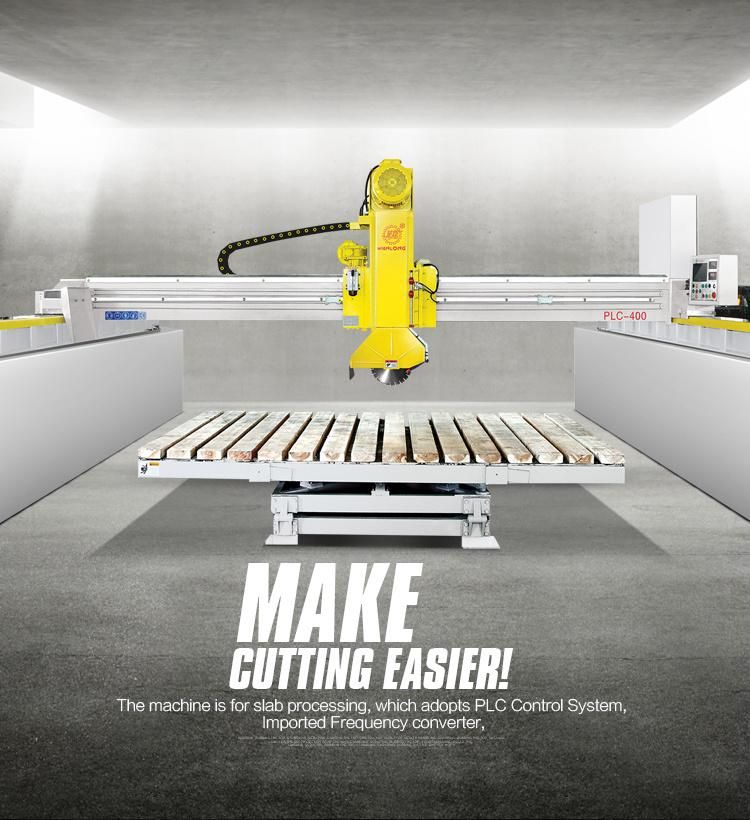

The machine is for slab processing, which adopts PLC Control System, Imported Frequency converter, Precise Signing Laser etc for automatic function and guarantee its precise and stable cutting There are model PLC-400 and PLC-600 available to your choice| PLC-400 | PLC-600 | ||
|---|---|---|---|
| Max.diameter of blade | mm | 350-400 | 600 |
| Main motor power | KW | 15 | 15 |
| Table dimensions(L x W) | mm | 3200*2000 | 3200*2000 |

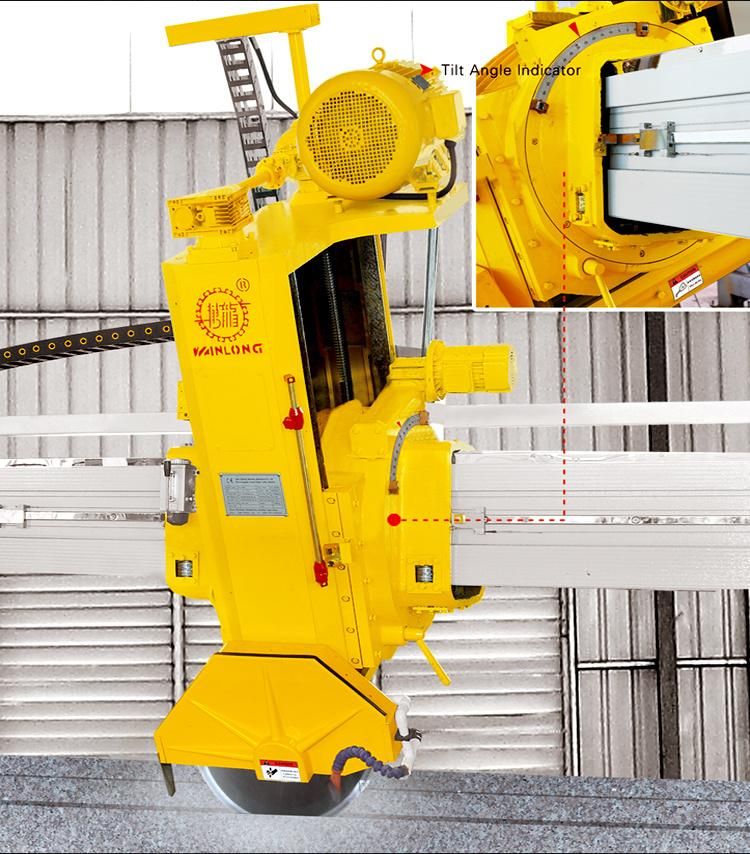

| Table tilting degree | n° | 0-85° | 0-85° |
| Table rotating degree | n° | 90°-360° | 90°-360° |
| Max.cutting size(L x W x H) | mm | 3200*2000*80 | 3200*2000*180 |
| Overall dimensions(L x W x H) | mm | 6000*5000*2800 | 6000*5000*2800 |
| Water consumption | m³/h | 4 | 4 |
| Approximate Weight | Kg | 5000 | 6000 |
