1325 CNC Router for Marble Stone Granite Engraving Machine
Jinan Dwin Technology Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Stone, Granite, Marble etc.
- Automation：Automatic
- Control：CNC
- Motor Power：380V,50Hz
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：DW1325
- Certification：CE, ISO, CCC
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- X,Y Working Area：1300mmx2500mm
- Z Working Area：>120mm
- Resolution Ratio：0.005mm
- Drive Motor：Stepper
- Tramsmission：Xy Gear Rack, Z Ball Screw
- Machine Warranty：2 Years for Machine Body
- Max Speed：8000mm,Min
- Command：G Code
- Table Structure：Aluminium
- Model Number：Dw9015,1218,1224
- Transport Package：Plywood Box, Free of Fumigation
- Specification：Machine can be customized
- Trademark：Dwin
- Origin：Jinan City, China
- Production Capacity：500 Sets Every Year
Description
Basic Info.
Model NO. DW1325 Certification CE, ISO, CCC Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized X,Y Working Area 1300mmx2500mm Z Working Area >120mm Resolution Ratio 0.005mm Drive Motor Stepper Tramsmission Xy Gear Rack, Z Ball Screw Machine Warranty 2 Years for Machine Body Max Speed 8000mm/Min Command G Code Table Structure Aluminium Model Number Dw9015/1218/1224 Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China Production Capacity 500 Sets Every YearProduct Description
1325 CNC Router for Marble Stone granite Engraving Machine
Machine Feature
1.Machine structure is simple, pragmatic, clean appearance.
2.Machine Table adopts heavy and thick steel, which improve load-bearing of the whole machine, it can bear 3 ton heavy stone.
3.Machine sides use heavy steel, it can reduce vibration during work, then improve processing accuracy.
4.Gear wheel for X Y axis, ball screw are uncovered, so it is very easy to clean it, after work, ball screw can be cleaned for many times.
5.Water tank can be moved, it is easy to clear
Machine parameter
| Performance parameter | DW-S1325 stone cnc carving machine |
| X,Y Working area | 1300mmx2500mm |
| Z Working area | 250mm |
| Table size | 1800mmx2900mm |
| Processing precision | 0.05mm |
| Reposition precision | 0.05mm |
| Table structure | Whole iron |
| X,Y,Z structure | X,Y,Z square orbit |
| Command | G CODE |
| Machine power | 2KW |
| Max processing speed | 6000mm/min |
| Max speed | 8000mm/min |
| Working voltage | AC380V/50Hz |
| Spindle power | 5.5KW china water cooling |
| Spindle rotating speed | 0-24000rpm/min |
| Drive motor | Stepper motor |
| Operation system | NC Studio |
Machine application

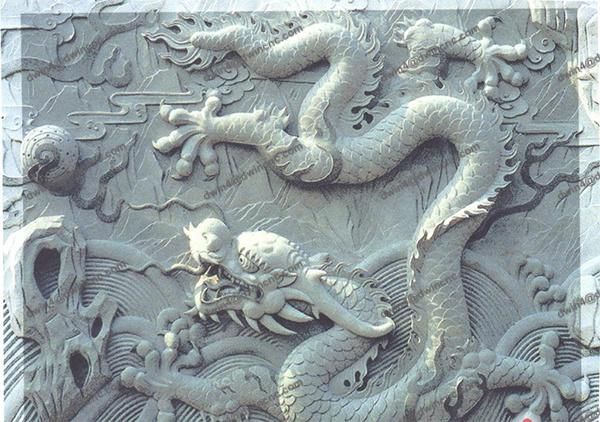

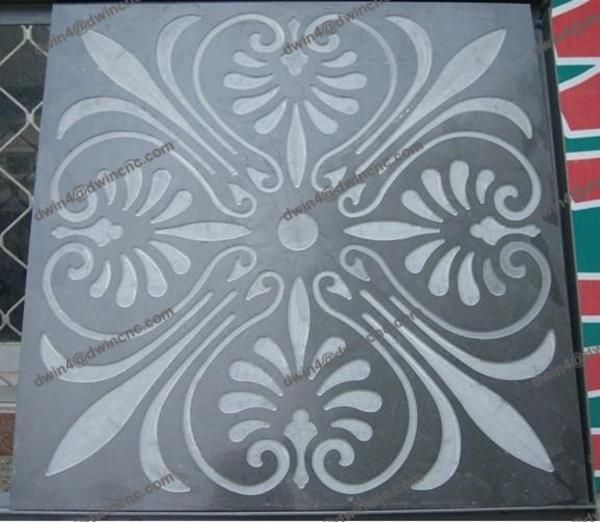

Marble/stone: engraving on various granite, bluestone, marble, grit stone, ceramic tile,
soapstone, etc.
Metal: light metal like aluminum and brass
Woodworking: wood, plastic, PVC, density board, acrylic, etc.
