• Model NO.：SH-XE04-04

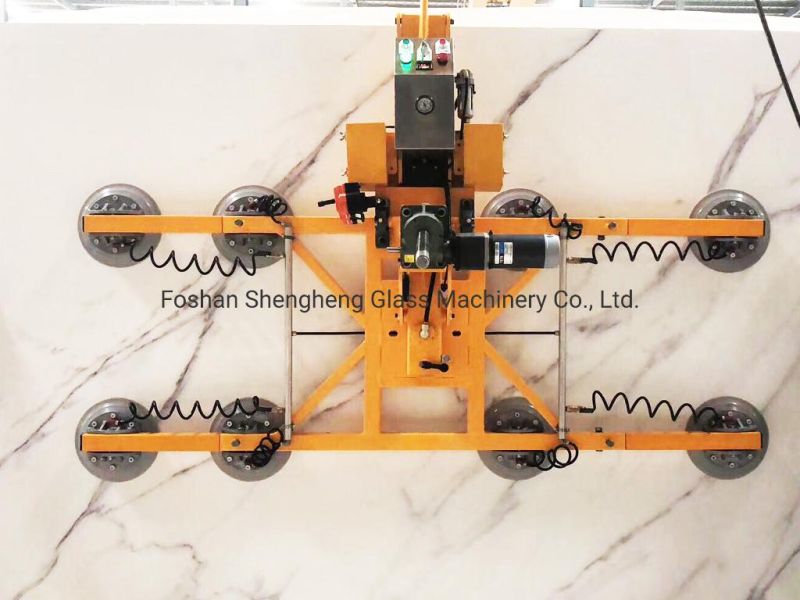

• Suction Pad：Round Shape, Silicone Material
• Pad Number：8 PCS, 250mm Diameter
• Performance：Tilting or,and Rotation
• Transport Package：Plywood Case
• Trademark：SHENGHENG
• Origin：China
• HS Code：842890
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. SH-XE04-04 Suction Pad Round Shape, Silicone Material Pad Number 8 PCS, 250mm Diameter Performance Tilting or/and Rotation Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 500 Sets/Year

Product Description

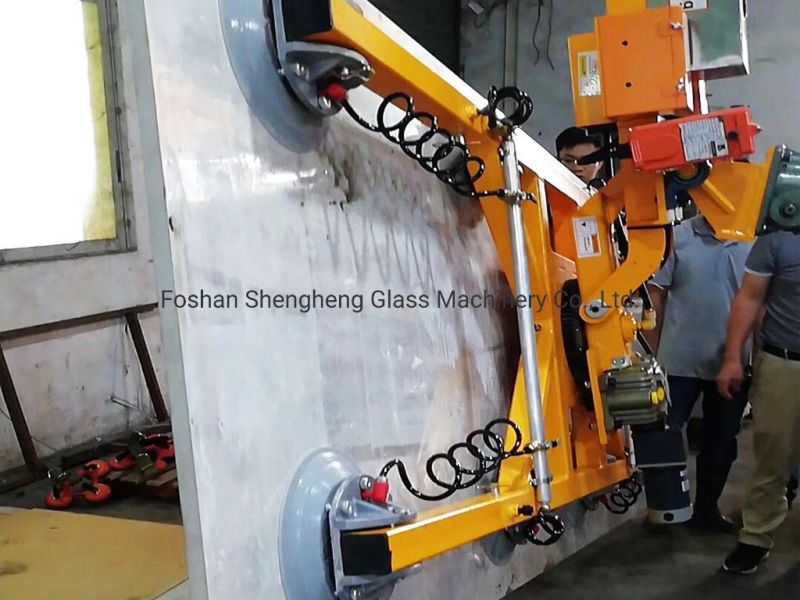

These electric vacuum lifters are designed to adopt vacuum to support the loads, hanging under the hoist equipment for moving and transporting. With powered or manual movements, it can handle and lift the stone slabs and tiles to the specified positions.

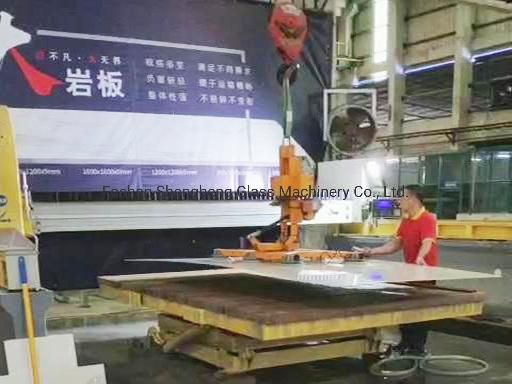

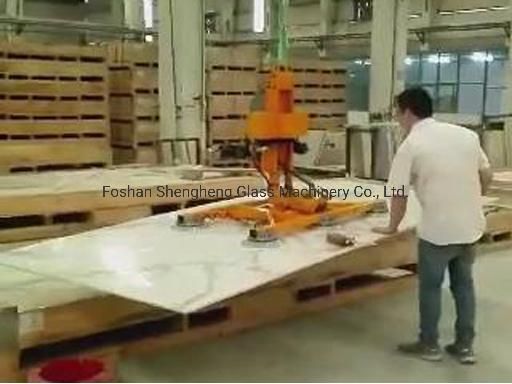

They are the good choice for handling and transporting stone slabs and ceramic tiles from storage/racks to the cutting table, engraving machine, drilling machine and other processing machines.

Also they can help to stack and pack slabs and tiles actively and orderly.

As required to be designed with attachment mounted on forklift for operation.



Features

1. DC power as main energy source provided. AC power is available for option.
2. Executions of tilt and/or rotation movements are effected electrically or manually.
3. A variety of structures are provided to match up with different dimension and weight of the loads.
4. Energy saving system assures of the enough working time.
5. Vacuum compensation function automatically sensors and restarts pump to supplement vacuum.
6. Customized lifting equipment solution can be mounted or attached on the forklift.

Technical Data

ITEM	DATA
Stone Type	Marble, granite, quartz, limestone, artificial slabs and ceramic tiles
Load Capacity	Up to 1000 kg
Vacuum Pad	250mm / 300mm diameter, silicone material, with adjustable spring mounted base
Max. Slab Size	Depending on the dimension of the suction frame and slabs thickness, suggested up to 4800 x 1600 mm
Hoist Device	Chain hoist, wire-rope hoist or forklift (customer provided)
Hoist Movement	Crane hook 360°manually or fork motions
Suction Frame	Rectangular or X-shaped with/without telescopic extensions
Suction Frame Movements	Rotating 360°, manually / electrically Tilting 0-90°, manually / electrically
Vacuum Generation	Oil-free rotary vacuum pump
Energy Supply	D.C power 12V / 24V battery A.C power 220~240V, 380-400V, others
Option	Acoustic & optical alarm Radio remote control Dual power Vacuum reservoir Telescopic extensions / beams Crane hook Attachment for forklift or cranes
