Laser Granite Marbe Bridge Saw Stone Cutting Machine
Xiamen Great Base Imp & Exp Co., Ltd.- Type：Laser Cutting Machine
- Usage：Granite, Marble
- Application：Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：GBHW-1200,1400

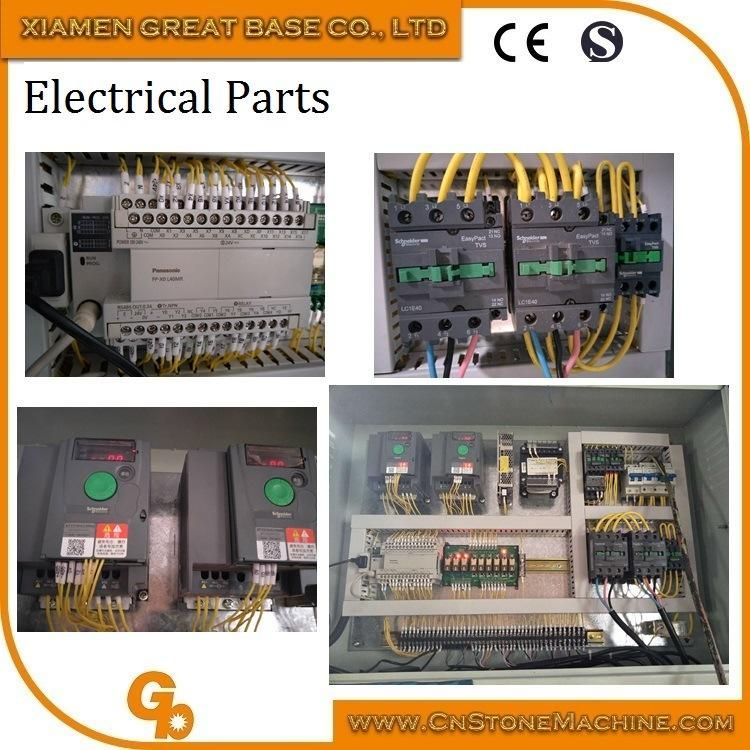

- Control：PLC cutting machine
- Certification：ISO, CE
- function：cut slabs
- Operation：Auto and easy
- Name：stone bridge cutting machine
- main motor：22,30kw
- Weight：7000kg
- Transport Package：One Machine Needs One 20′ Container
- Specification：6300*4700*2900mm
- Trademark：Great Base
- Origin：Fujian, China
- HS Code：84641090
- Production Capacity：400sets,Year
Description
Name
unit
GBHW-1200
GBHW-1400
Blade diameter
mm
Φ1200
Φ1400
Main motor
kw
22
30
Blade up/down stroke
mm
700
700
Worktable size (Max. cutting size)
mm
3200×2000
3200×2000
Worktable rotation angle (by hydraulic)
°
90°
90°
Max. cutting size (L*W*H)
mm
3200*2000*450
3200*2000*550
Dimension (L×W×H)
mm
6300×4700×2800
6300×4700×2900
Weight
Kg
6500
7000
