• Model NO.：es3250
• Control：CNC
• Certification：CE, SGS
• Customized：Customized
• Color：Yellow
• Total Power：Avg.600kw
• Customer Factory：Shuitou, Guangxi, Iran, Turkey, Vietna, Oman,etc
• Material：CaCO3 and Resin
• Polution Level：No
• Transport Package：12-16 Container
• Specification：3250*1650*800mm
• Trademark：Eaststar
• Origin：Quanzhou, China
• HS Code：846400
• Production Capacity：1800000 Sq Meter, Year

Basic Info.

Model NO. es3250 Control CNC Certification CE, SGS Customized Customized Color Yellow Total Power Avg.600kw Customer Factory Shuitou, Guangxi, Iran, Turkey, Vietna, Oman,etc Material CaCO3 and Resin Polution Level No Transport Package 12-16 Container Specification 3250*1650*800mm Trademark Eaststar Origin Quanzhou, China HS Code 846400 Production Capacity 1800000 Sq Meter/ Year

Product Description

Automatic Production Line for Artificial Marble block
The line is mainly composed of hopper, conveyor, mixer, trolley, press machine, test machine, etc. The test machine is the prototype of the core parts of the whole plant, with which the formula can be tested by forming artificial marble block samples, volume production will only be made after successful tests. The process of the entire line is, weigh the raw materials by the hopper→send them to the mixer by the conveyor→add to auxiliary material (e.g. resin) →vacuum mixing→put the mixed material into the mould→vibration in the vacuum tank for shaping.
 specification
Marble block size :
3250*1650*800mm;
3250*1250*900mm;
2450*1850*850mm;
2450*1650*900mm.


Capacity :
**1 Rough Marble Block Per 40~45 Minutes
**26 block per day (count as 20 hours)
**650 block per month (count as 25 work days)
**7800 block per year (count as 300 work days)

Raw Material:
The main materials that composing the composite stone products as below:
Crushed marble, CaCO3(315powder), (please see our powder grinding mill machine)
Resin,
Solidifying agent,
Accelerator,
Toner:
**Crushed marble+CaCO3(315powder)  ≥90%
**Resin 6-9%

Land Area Requirement
Raw material warehouse:2000 sq meter.
Artificial marble production line workshop: 2000 sq meter

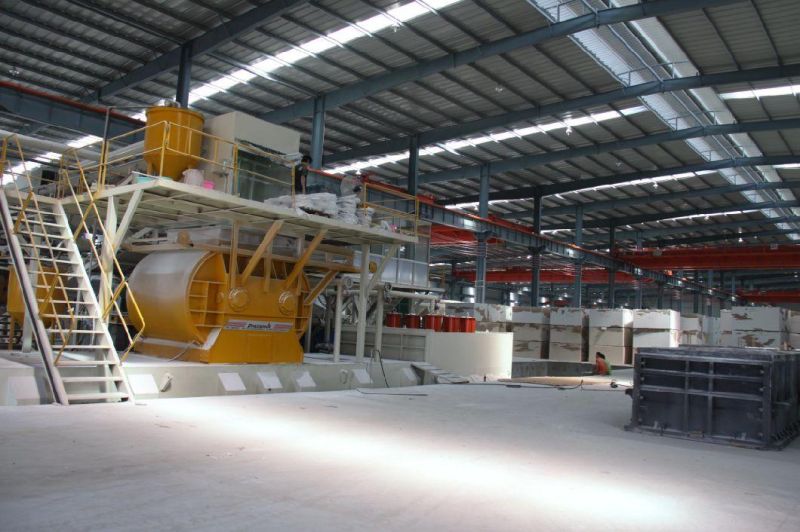

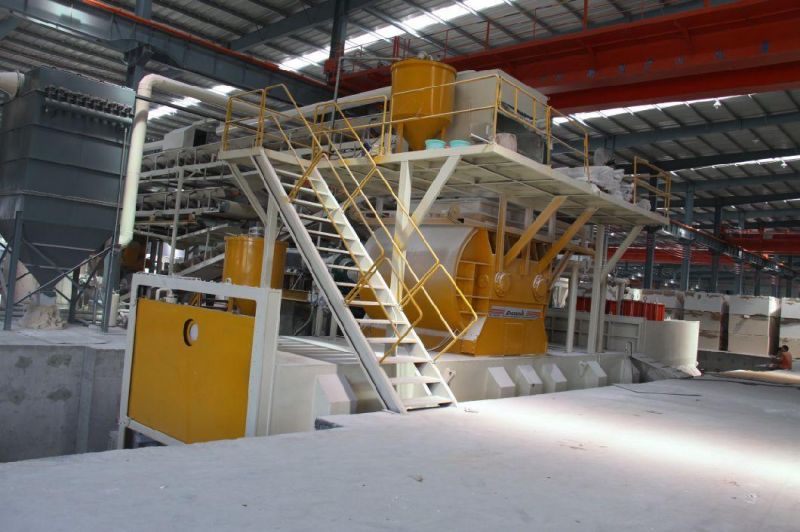

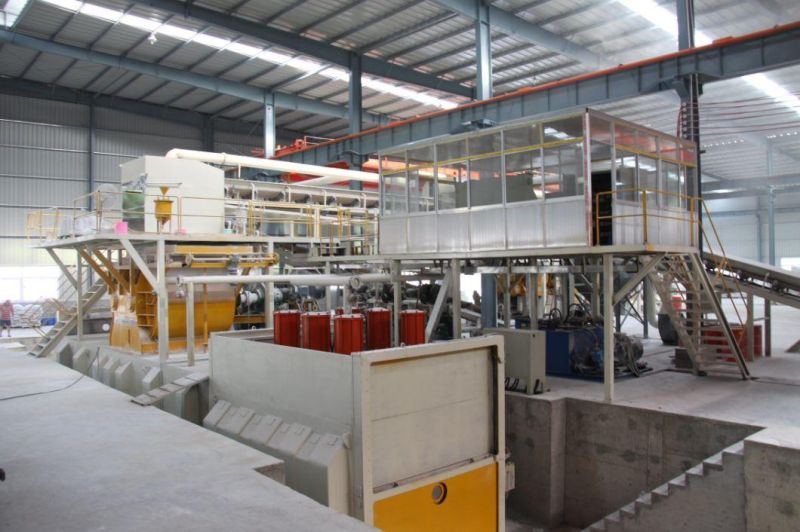

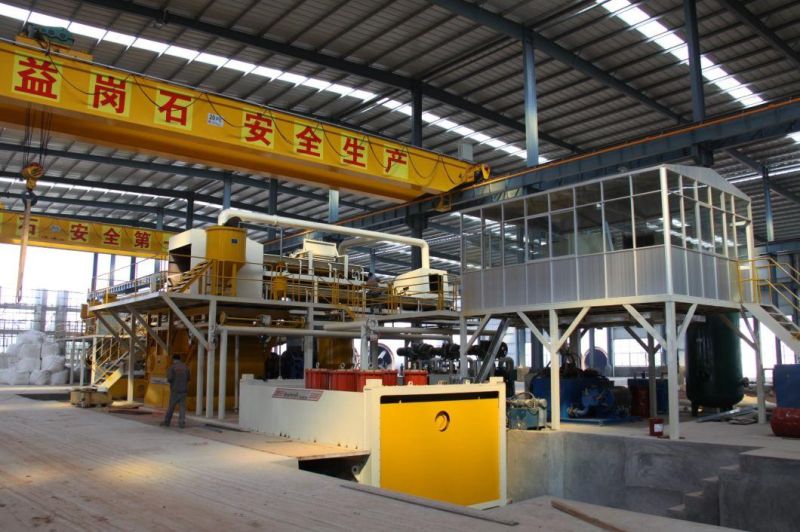

Customer Factory Photo
