Hualong 45 Degree Miter Cutting Hlsq-450 Processing Bridge Saw Machine Edge Cut for Stone Fabricators Stone Cutting Machine Siemens
Fujian Province Hualong Machinery Co., Ltd.- Warranty:1 Year
- Type:Automatic Mono Bridge Saw
Base Info
- Model NO.:hlsq-450
- Usage:Ceramics, Granite, Marble
- Application:Art & Craft, Stone Industry
- Source Voltage:380V
- Automation:Automatic
- Cutting Ability:High Speed
- Control:Siemens PLC
- Certification:ISO, CE
- Color:Red and Ivory
- Head Rotate 4 Positions:0,90,180,270degree
- Head Tilting Position:45 Degree
- Table Rotate:0-360 Degree
- Table Tilt:0-85 Degree
- Guide Rail:Linear Guide
- Gearing:Rack Gear
- Touch Screen:Siemens
- PLC:Siemens

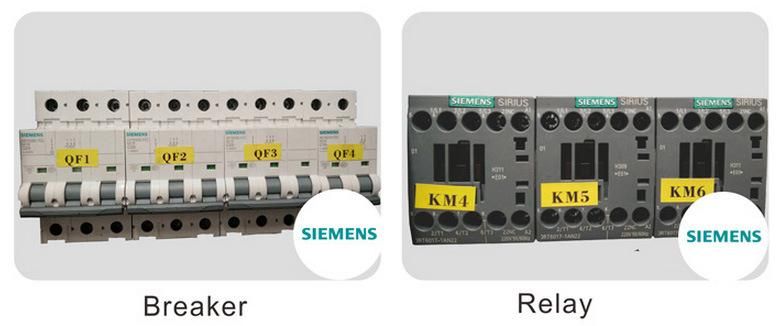

- Electrial Parts:Siemens and Schneider
- Guide:Hiwin Linear Guide
- Structure:Intergrated Machine
- Operation Type:Automatic
- Lanaguage:Multi-Languages
- Cutting:Vertical and Horizontal Cuttings
- Transport Package:Plastic Packing
- Specification:Working Area: 3300*2000mm
- Trademark:Hualong
- Origin:Putian, Fujian, China
- HS Code:84641010
- Production Capacity:50 Pieces,Month
- Package size per unit product:5700.00cm * 3260.00cm * 2765.00cm
- Gross weight per unit product:5400.000kg
Description
Basic Info.
Model NO. hlsq-450 Usage Ceramics, Granite, Marble Application Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control Siemens PLC Certification ISO, CE Color Red and Ivory Head Rotate 4 Positions 0/90/180/270degree Head Tilting Position 45 Degree Table Rotate 0-360 Degree Table Tilt 0-85 Degree Guide Rail Linear Guide Gearing Rack Gear Touch Screen Siemens PLC Siemens Electrial Parts Siemens and Schneider Guide Hiwin Linear Guide Structure Intergrated Machine Operation Type Automatic Lanaguage Multi-Languages Cutting Vertical and Horizontal Cuttings Transport Package Plastic Packing Specification Working Area: 3300*2000mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/MonthPackaging & Delivery
Package size per unit product 5700.00cm * 3260.00cm * 2765.00cm Gross weight per unit product 5400.000kgProduct Description
HLSQ-450 is a SIEMENS PLC Controlled bridge saw with interpolated axes, rotating head and work bench, specially engineered to cut and process of marble, granite, or other natural and engineered stones.
-- 0° to 45°head tilting, 0°to 270°head rotation.
-- 0° to 85° table tilting, 0°to 360°table rotation.
-- Linear guideway in "X, Y, Z" axis to guarantee accuracy and speed.
-- Electric and electronic components in international standards to be easily sourced.
-- Full machine be loaded in 20 GP container. Easy to load, transport and install thanks to its monobloc structural frame.
-- SIEMENS PLC control system in 4 Languages for automatic cutting and easy operation.
-- Spindle motor variable speed by means of inverter (Optional).
Other details of machine:

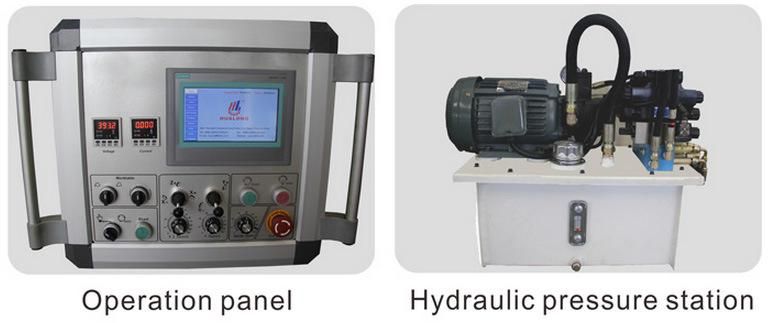

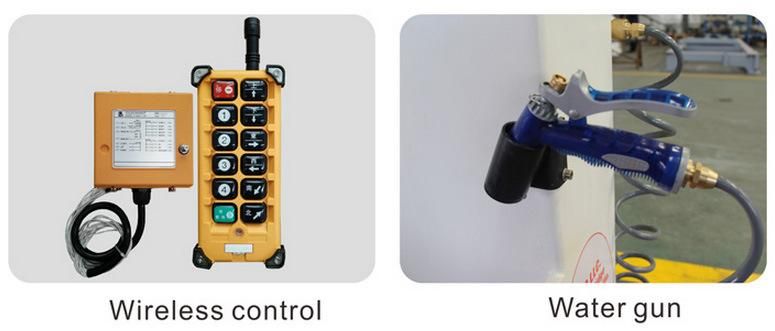

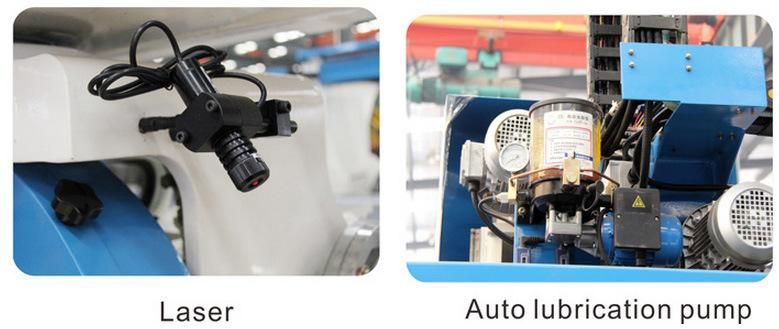

Main Parts of Machine:

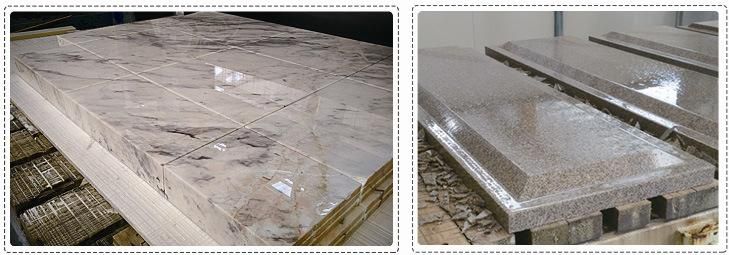

The finish our machine can do:
