• Model NO.：BD1630
• Certification：CE, ISO, SGS,BV
• Current：AC
• Application：Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry
• Customized：Customized
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1600*3000*240mm
• Trademark：Boiro
• Origin：Hefei City, China
• HS Code：8464909000
• Production Capacity：3000 Sets, Year

Basic Info.

Model NO. BD1630 Certification CE, ISO, SGS,BV Current AC Application Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry Customized Customized Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1600*3000*240mm Trademark Boiro Origin Hefei City, China HS Code 8464909000 Production Capacity 3000 Sets/ Year

Product Description

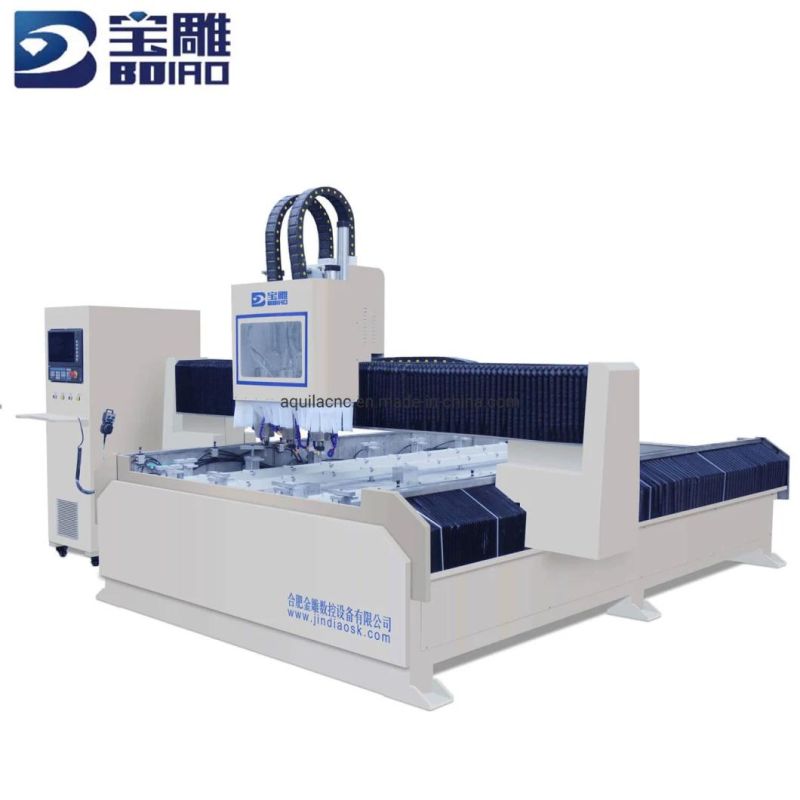

Marble and Granite Coutertops Engraving, Polishing, Chamfering CNC Machine
Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio


Description:
Marble and Granite Coutertops Engraving, Polishing, Chamfering CNC Machine is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.

Functions:
The functions of this machine include 2D sculpture,3D relief,cutting,chamfering,drilling and engraving.

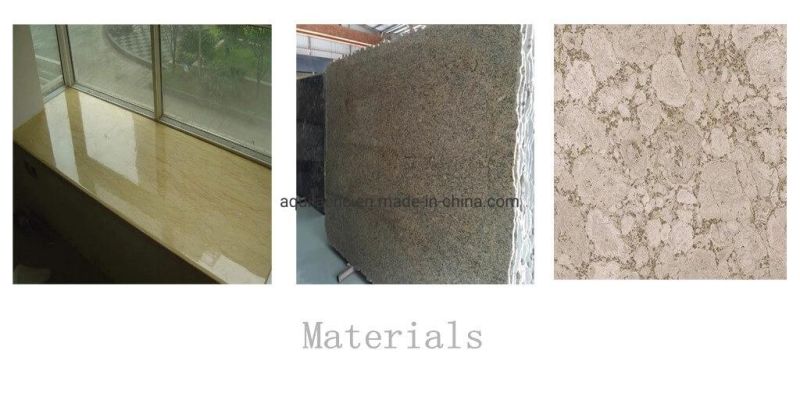

Applicable Materials:
Widely used for marble, jade, granite, tombstones, milestones,ceramic tiles,glass,bluestones and etc..


Application Scope:
Suitable for stone processing, countertop, wash basin, shaped lines, grinding and cutting process, tombstone processing, mold prcessing,art relief, decoration, ceramic processing, advertising industry.


Parameters:

Model	Marble and Granite Coutertops Engraving, Polishing, Chamfering CNC Machine
X/Y/Z Axis Working Area	1600*3000*240mm
Machine Size	4010*2700*2400mm (After disassembling, size should be around 4010*2250*2400mm)
Working Table	Aviation aluminum plate + engineering plastic table top
Machine Structure	Thick steel welded, with aging treatment
Control System	NC Studio NC65C
Drive Motor	Leadshine servo motor and Stepper driver motor
Spindle Motor Power	5.5KW+7.5KW water cooled spindle
Spindle speed	Adjustable Rotational Speed with 0-24000 rpm/min
Inverter	Zoncn (Optional with Fuling)
Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw
Guide Rail	Taiwan imported linear guide rail PMI
Cooling System	Circulating water-refluxing design/Round Spray
Oil System	Automatic Oil system
Way of Fixing Workpiece	Double-sided sealed vacuum adsorption system
Suction cup	6pcs
Water and dust resistant	Intelligent dust proof cooling system
Hand wheel	Electric hand wheel
Profile polishing wheel	Max diameter 150mm
Tool type	BT40, Φ35, Φ30
Collet/Tool holder	ER32, Φ10, Φ12, Φ12.7, Φ16, Φ20
Electric Motor	7.5KW
Positioning cylinder	6pcs
Electric Appliance	Germany Schneider
Reducer	Planetary reducer
Working accuracy	±0.08mm
Re-positioning accuracy	±0.05mm
Max. Traveling Speed	25 m/min
Max.Working Speed	15 m/min
Water Sink/Tank	Powder-painting (Stainless steel is optional)
Dictate Format	G-Code / HPGL
Water consumption	46L/min
Air pressure	0.8Mpa
Weight	3000KGS
Working Voltage	AC380V 3PH 50HZ
Vacuum Pump	1*7.5KW

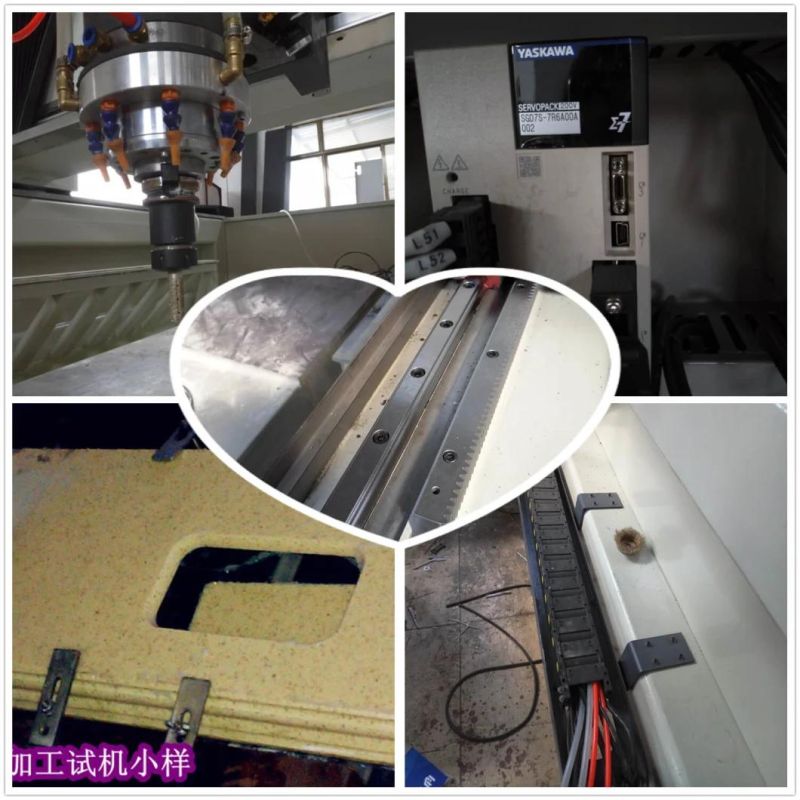

Accessories:


Performance Features:

1	Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability
2	Famous brand big torque motor, low noise, large power, high efficiency
3	Adopt imported square linear guide rail, high speed, high precision, long life
4	Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength
5	Reasonable dustproof and waterproof design, fully protect the machine transmission parts
6	Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..
7	Tools and abrasives: a large number of imported and domestic specifications and shapes of tools and abrasives, as well as a variety of processing requirements
8	Vacuum adsorption device with double-sided seal makes the workpiece loading and unloading convenient, fast and accurate, ensuring that the stone is not moved when grinding and polishing

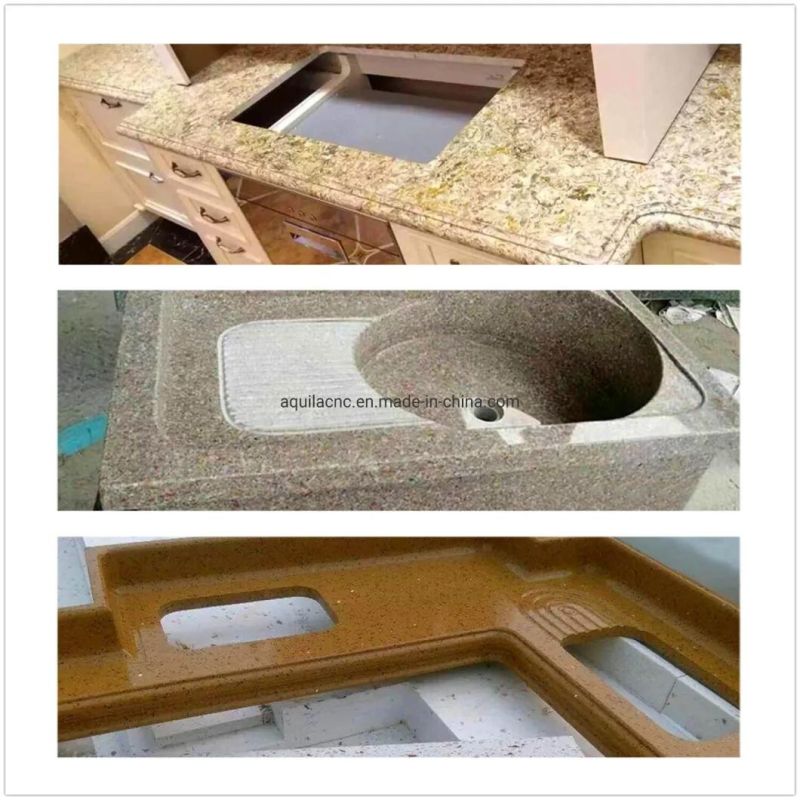

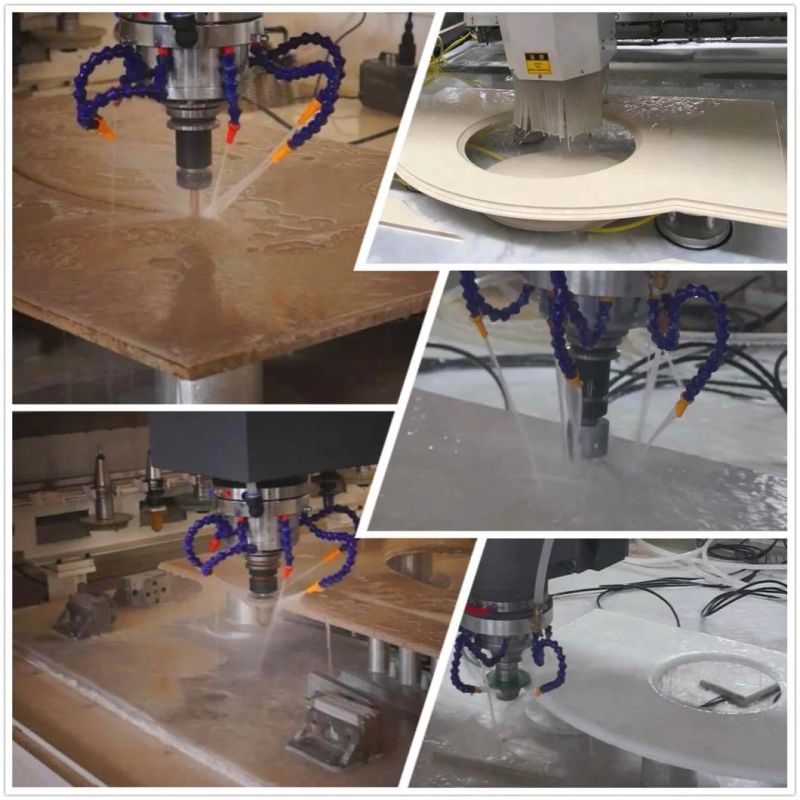

Samples:

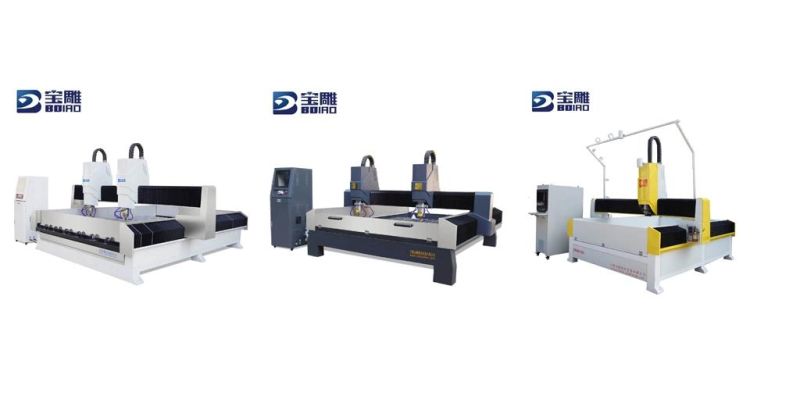

Similar Products:
