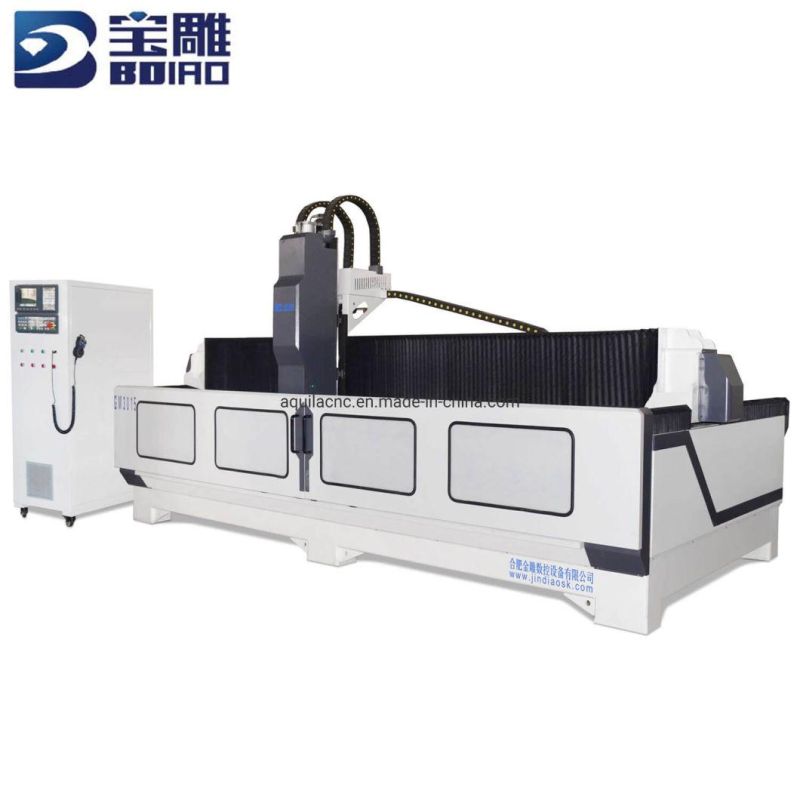

Heavy Duty Quartz Stone CNC Machine for Wash Basins and Tea Tray Carvings
Hefei Aquila CNC Equipment Co., Ltd.- Function：Cutting, Line Engraving, Intaglio, Basso-relievo
- Application Material：Stone,Marble,Tile,Granite,Tombstone,Sign Plate
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：GM3015
- Certification：CE, ISO
- Current：AC
- Application：Decoration, Advertising, Art & Craft, Stone Industry
- Customized：Customized
- Configuration：7.5kw Mechanical Spindle
- Drive Motor：Yaskawa Servo Motor
- Linear Tool Change：8~20PCS
- Spindle Speed：0-12000r,Min
- Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
- Specification：3000KG
- Trademark：Boiro
- Origin：China
- HS Code：8464909000
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. GM3015 Certification CE, ISO Current AC Application Decoration, Advertising, Art & Craft, Stone Industry Customized Customized Configuration 7.5kw Mechanical Spindle Drive Motor Yaskawa Servo Motor Linear Tool Change 8~20PCS Spindle Speed 0-12000r/Min Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Boiro Origin China HS Code 8464909000 Production Capacity 300 Sets/MonthProduct Description
Heavy Duty Quartz Stone CNC Machine for Wash Basins and Tea Tray CarvingsKeywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:
Heavy Duty Quartz Stone CNC Machine for Wash Basins and Tea Tray Carvings is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:
The functions of this machine include cutting,drilling,sanding,chamfering and so on.
Applicable Materials:
Artificial stone,quartz stone,marble,granite and other special shaped stone.
Application Scope:
Suitable for artificial stone, quartz stone, granite, marble countertops and wash basins, tea tray carvings, European style edging, and other special shaped stone, ceramic, glass and microcrystalline stone. Cutting, drilling, shaping, polishing, all in one machine.
Parameters:
| Model | Heavy Duty Quartz Stone CNC Machine for Wash Basins and Tea Tray Carvings |
| Workiing Area | 3000*1500*600mm |
| Machine Size | 4600mm*3000mm*2600mm |
| Transmission | X/Y axis helical rack & pinion, Z axis ball screw |
| Way of Fixing Workpiece | Suction cup |
| Drive Motor | Yaskawa servo motor |
| Linear Tool Change | 8~20pcs |
| Tool Shank Diameter | BT40 |
| Spindle Speed | 0-12000r/min |
| Working Voltage | AC380/3PH/50HZ |
| Control System | Syntec/ NC Studio |
| Net Weight | 3000KG |
1. ATC system: linear-type ATC system makes the whole process from the holing, cutting , shaping, polishing finished at one go, fully realize high automation.
2. Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
3. Famous brand big torque motor, low noise, large power, high efficiency.
4. Adopt imported square linear guide rail, high speed, high precision, long life.
5. Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
6. Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
7. The software: for UncGraphics.NX3.0, Mastercam9.0 and other software, set the CAD / CAM as a whole, through digital analysis, design, the product was processed to support procedural pre / igs / scep / dxf / dwp and other documents.

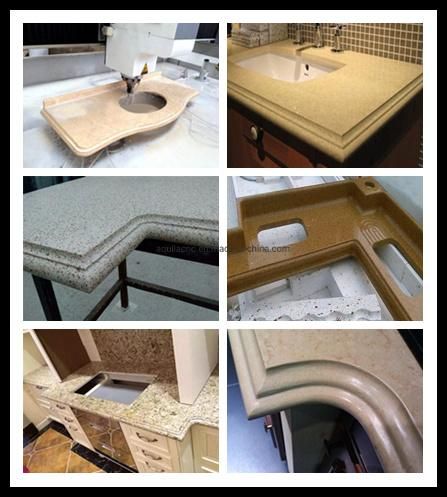

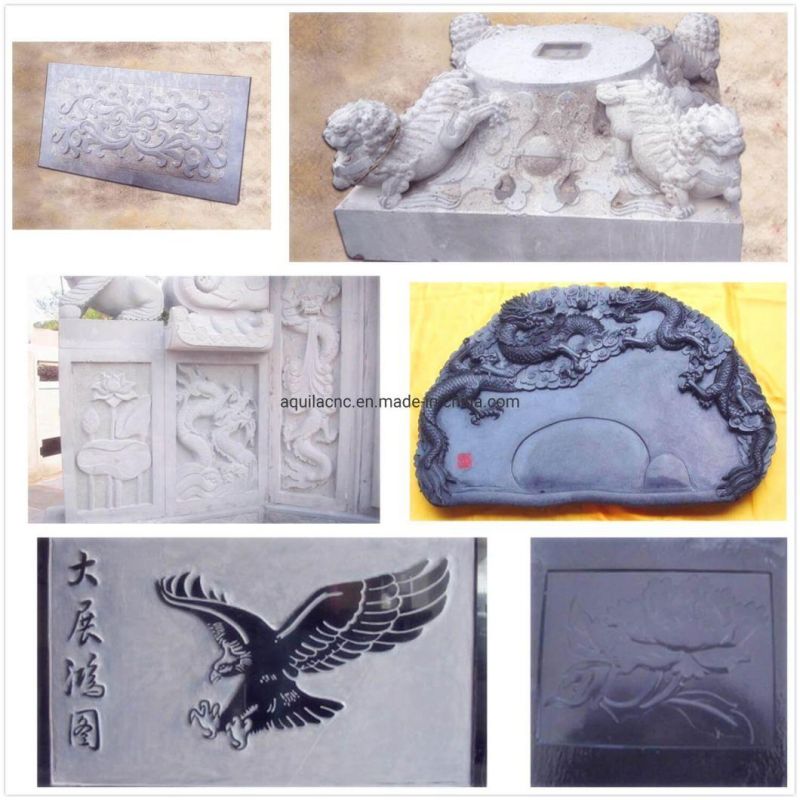

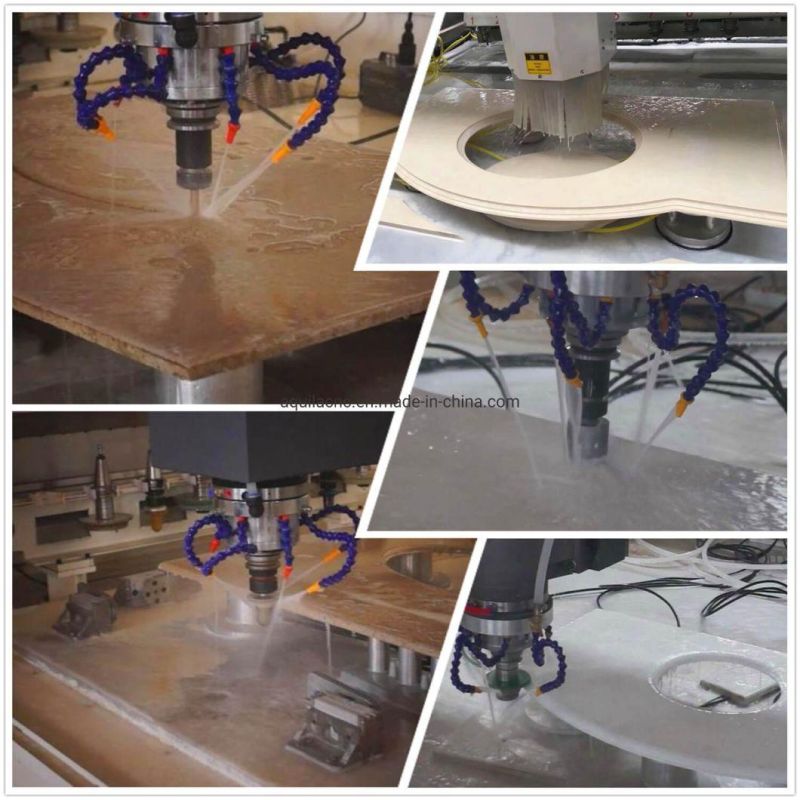

Samples:
