• Model NO.：KXJ1500
• Control：PLC
• Certification：ISO, CE
• Conditiaon：New
• Loading Container Type：20GP(DC)
• Transport Package：by Film Package
• Specification：3500× 2000× 1500mm
• Trademark：XINDA
• Origin：Yunfu City, China
• HS Code：84641090
• Production Capacity：500

Basic Info.

Model NO. KXJ1500 Control PLC Certification ISO, CE Conditiaon New Loading Container Type 20GP(DC) Transport Package by Film Package Specification 3500× 2000× 1500mm Trademark XINDA Origin Yunfu City, China HS Code 84641090 Production Capacity 500

Product Description

Function:The machine is used for cutting slabs and squaring block.

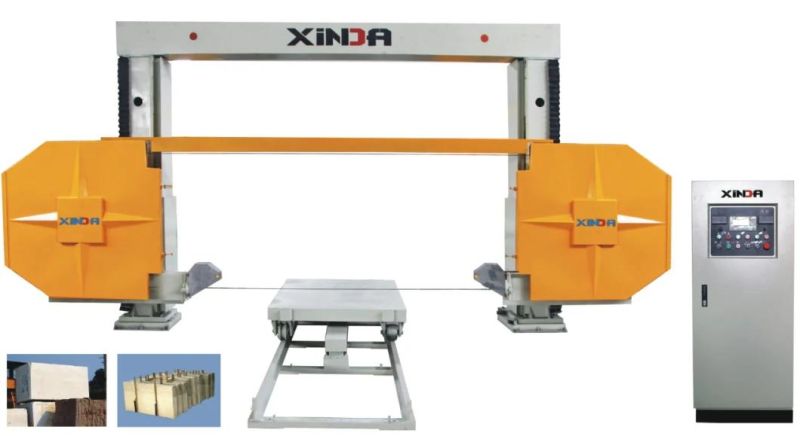

Brief introduction of KXJ1500 wire saw machine:
1),The machine has steady structure, including top beam,two upright column,square box,hydraulic station tensioning unit,two big flywheel. Left side install a driven big flywheel and hydraulic station tensioning unit. Tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-40m/s via inverter. the machine can cut different kind of stone material.
2),In order to reducing the diamond wire wear and keeping the diamond wire steady , the machine are equiped with two guide wheels (Diameter: 300mm). guide wheels are protected by rubber liners which can be easily changed once they are worn out.
3),There are two structures for the trolley. 1.Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product). It has high cutting precision. it is suitable for cutting slabs. 2.Trolley move by gear transmission. Move speed is faster than by screw rod transmission. But cutting accuracy is lower than by screw rod transmission. It is suitable for block squaring"
4),The trolley of KXJ1500 wire saw machine can rotate 360°(Rotation can be driven by common motor or servo motor. 1.By common motor,the table will rotate when press control button,stop when loosen the control button. 2. by servo motor,you can input an angle in the panel,the table rotate and locate in the set angle)
5)According to the size of the stone,we equip with an electric system for bringing closer the  guide wheels that is to adjust the cutting width as stone size, reducing the arch value when cutting with diamond wire .
6),The machine will stop automatically and display failures on the screen if wire broken.
7),We have a cooling system for diamond wire.it can detect water pressure.the machine will automatically stop in case of no water or insufficient water flow, to protect the diamond wire.
8),the up and down screws are covered with a short platic pipe to hold the grease and be oiled. protected with dust cover against dust and water.

Technical parameters:

Parameters	KXJ1500
Diameter of Wire	Φ8-Φ11
Length of Wire	17300mm
Speed of Wire	0-40m/s
Worktable Size	3000×2000mm
Worktable Whether Revolve	360°
Worktable Load Capacity	40T
Range of Cutter Movement	1600mm
Max Cutting Size(L×W×H)	3500×2000×1500mm
Production Efficiency	1-2m²/h(marble)    0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	8200×5700×4300mm
Diameter of Guide Wheel	Φ300mm
Total Power	21.44KW
Total Weight	9T

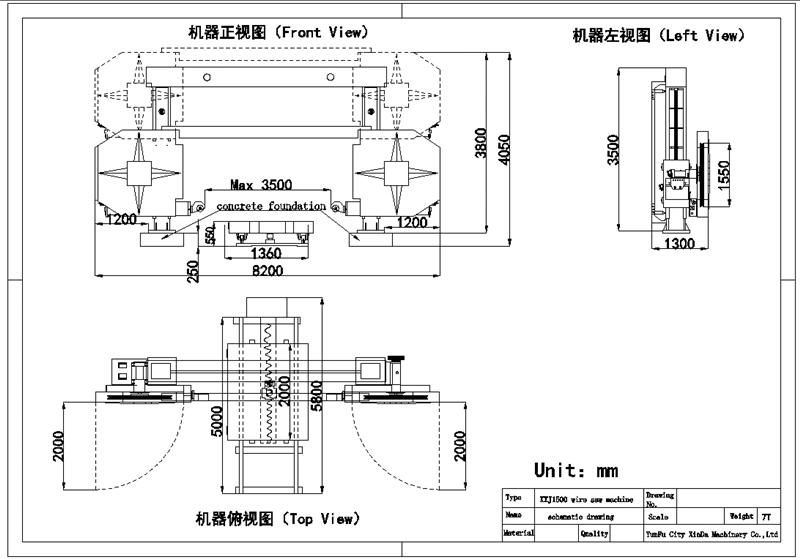

Schematic Drawing:

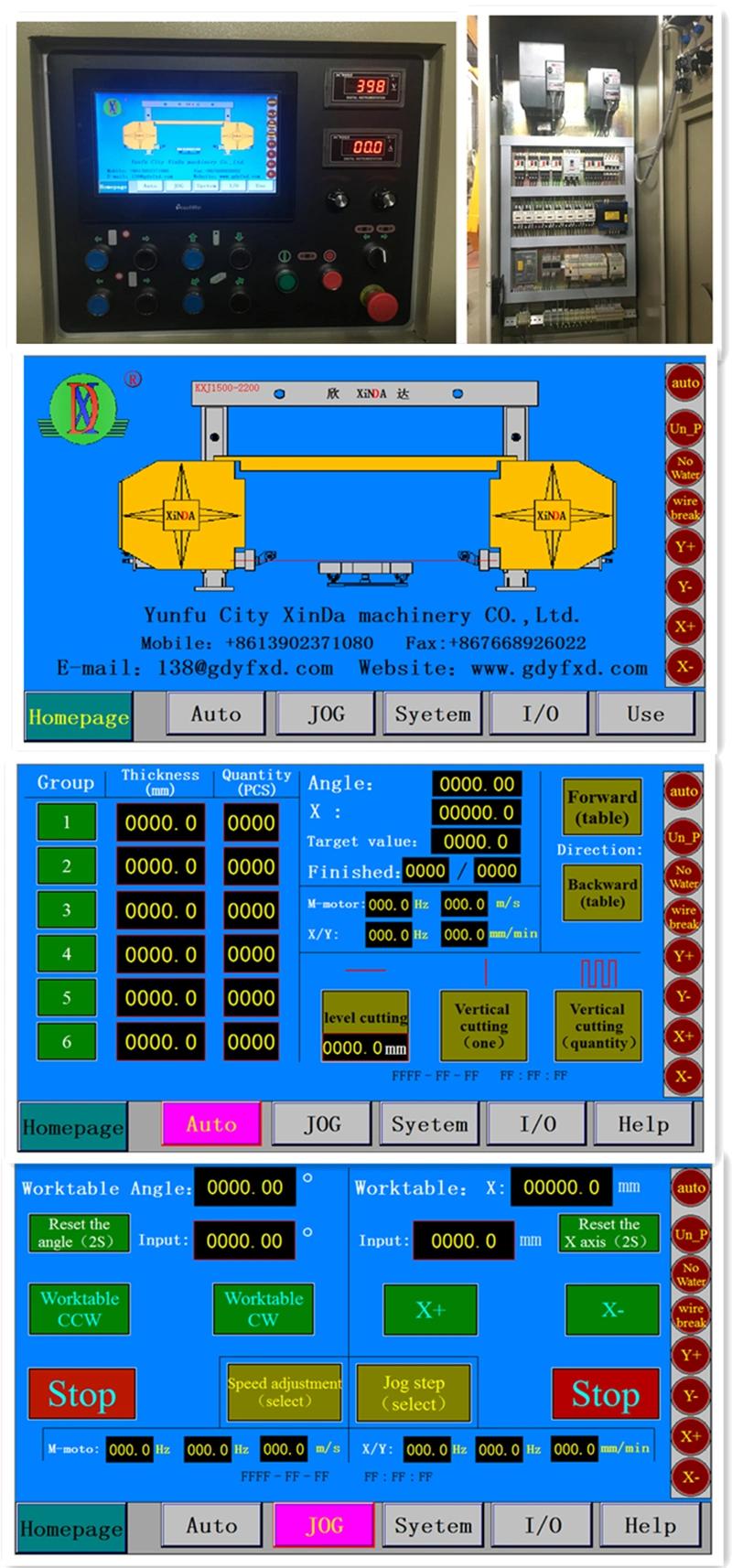

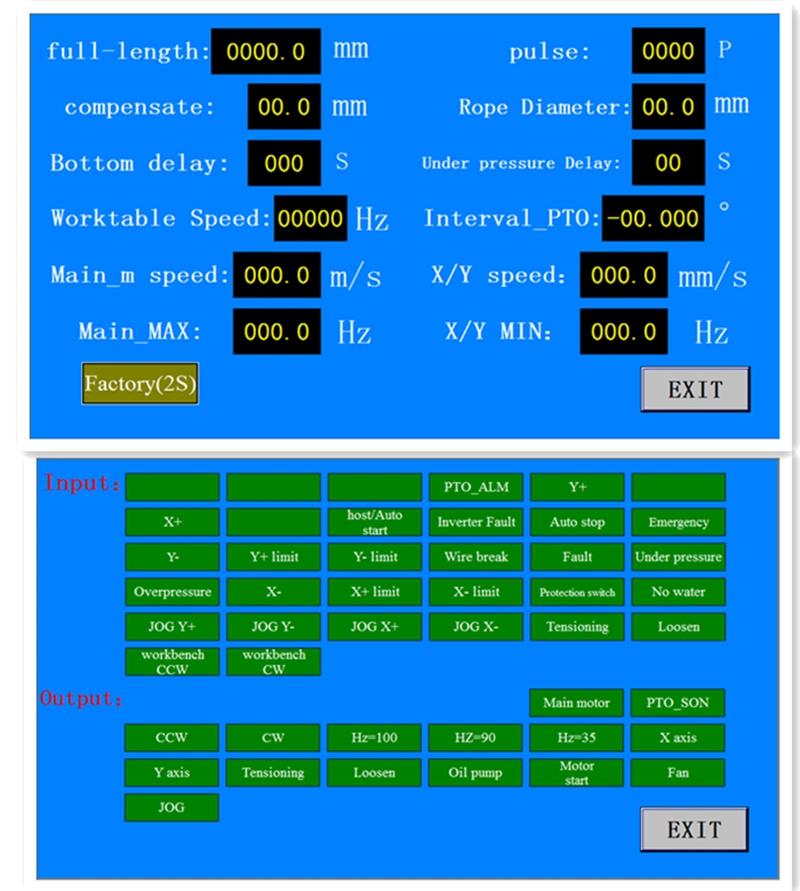

Electric Cabinet& Operation Panel Photos :













     Exhibition:

FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
