• Model NO.：BTC-2500
• Control：Micropcomputer
• Certification：API, ISO, CE
• Gross Motor：47,56,66
• Water Consumption：15m3,H
• Gross Weight：14000kgs
• Main Motor：37,45,55kw
• Max Processing Length：3000,3500
• Max Processing Width：2200,2500
• Max Lifting Stroke：1100,1300
• Transport Package：Plastic Package
• Specification：7850*4800*3700
• Trademark：Xianda
• Origin：Fujian, China (Mainland)
• HS Code：84641080
• Production Capacity：1000set Per Year

Basic Info.

Model NO. BTC-2500 Control Micropcomputer Certification API, ISO, CE Gross Motor 47/56/66 Water Consumption 15m3/H Gross Weight 14000kgs Main Motor 37/45/55kw Max Processing Length 3000/3500 Max Processing Width 2200/2500 Max Lifting Stroke 1100/1300 Transport Package Plastic Package Specification 7850*4800*3700 Trademark Xianda Origin Fujian, China (Mainland) HS Code 84641080 Production Capacity 1000set Per Year

Product Description

Product Description

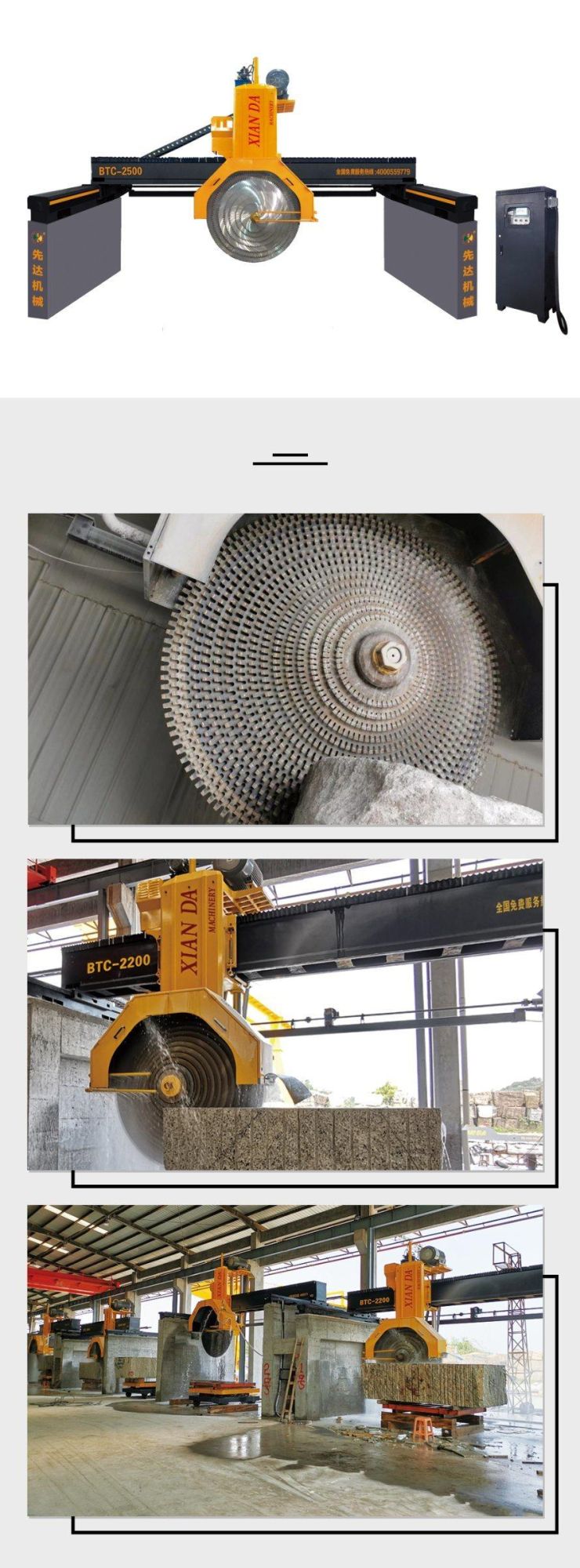

BTC-2500/2800 Multi-blades Granite Marble Bridge Block Cutting Machine uses inverter to control left-right feeding, speed adjustable. It uses hydraulic lifting system, combined with four guide poles, also Guide Sleeve with multi-functions layer seals, like waterproof, dustproof, anti-spill. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. Main spare parts adopt imported good-quality materials, the block can be placed on the ground directly. Thus the whole machine is featured with high cutting efficiency, high slicing precision, high flatness of plate after cutting, high stability, easy-operating etc. It is a ideal equipment for your fabricating plant.

Note: 360°rotating worktable can be selected if customer requires.

Technical Parameter

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	2200	2500	2800
Max processing length	mm	3600	3300	3200
Max processing width	mm	2200	2200	2800
Max lifting stroke	mm	1350	1350	1350
Water consumption	m3/h	15	15	15
Main motor	kw	45/55	45/55	55
Gross motor	kw	56/66	56/66	66
Outline dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800*3700
Gross weight	kg	14000	14500	15000

Xianda Machinery



Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.




Exhibition


Other stone cutting machines we produce:
1) Diamond wire saw machine,
2) Bridge cutting machine, bridge saw
3) a series of stone machine for special shape processing.

FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

6. Contact



 Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
