• Model NO.：MS-12H,MS-40H
• Source Voltage：380V
• Automation：Manual
• Cutting Ability：Low Speed
• Control：Artificial
• Certification：CE
• Condition：New
• Operation：Hydraulic
• Stock：Large Number
• Max. Cutting Width：300 mm
• Weight：500 Kgs
• MOQ：1 Sets
• Splitting Force：5-40t
• Color：Green, Blue, Yellow etc
• Power：1-5.5 Kw
• Feeding Stone：Various Size Flat Face Stone
• Transport Package：Plywood Case
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen, China
• HS Code：70161000
• Production Capacity：3000 PCS,Year

Basic Info.

Model NO. MS-12H/MS-40H Source Voltage 380V Automation Manual Cutting Ability Low Speed Control Artificial Certification CE Condition New Operation Hydraulic Stock Large Number Max. Cutting Width 300 mm Weight 500 Kgs MOQ 1 Sets Splitting Force 5-40t Color Green, Blue, Yellow etc Power 1-5.5 Kw Feeding Stone Various Size Flat Face Stone Transport Package Plywood Case Specification CE Trademark BESTLINK Origin Xiamen, China HS Code 70161000 Production Capacity 3000 PCS/Year

Product Description

Hydraulic Mosaic Split Face Wall Cladding Stone Splitter for Cubes Granite

A large number of the small manual mosaic cutting machine in Stock! ! !

APPLICATION:
For cutting granite, marble, sandstone, slate and strip tile etc.
Work fast, High precision cutting various sizes of stones: Mosaic, tesserae, cubes & all the shapes desired.

TECHNICAL PARAMETERS:

Model	MS-5H	MS-12H	MS-20H	MS-40H
Splitting force (T)	5	12	20	40
Max. Splitting Width  (mm)	120	240	240	300
Max.Splitting Heighth (mm)	100	100	150	150
Power Supply	Hydraulic,1kw	Hydraulic,1kw	Hydraulic,3kw	Hydraulic,5kw
Overall Size (cm)	140*90*60	50*60*160	110*50*140	70*80*170
Weight  (kg)	235	235	350	450
Aplication	split rectangle stone (≤120*50*50mm into two pieces in the length direction,pedal control	Chop various sizes flat face stones (≤L*120*50mm )into:tessera,cubes& all the shapes desired,pedal control.	Chop various sizes flat face stones (≤L*240*100mm )into:tessera,cubes& all the shapes desired,pedal control.	Chop various sizes flat face  stones (≤L*240*150mm )into:tessera,cubes& all the shapes desired,pedal control.

VIDEO:
The Video be upload into Youtube,
Please check how the mosaic cutting machine work online:
For MS-20H: https://youtu.be/GNInZHgaAEQ
For MS-12H: https://youtu.be/Z7_xvAi2R10

ADVANTAGE:
High efficience, Stable performance. Very easy operation.
Hydraulic system, powerful.
Work fast for mosaic stone and small strip tile cutting.

PICTURES:

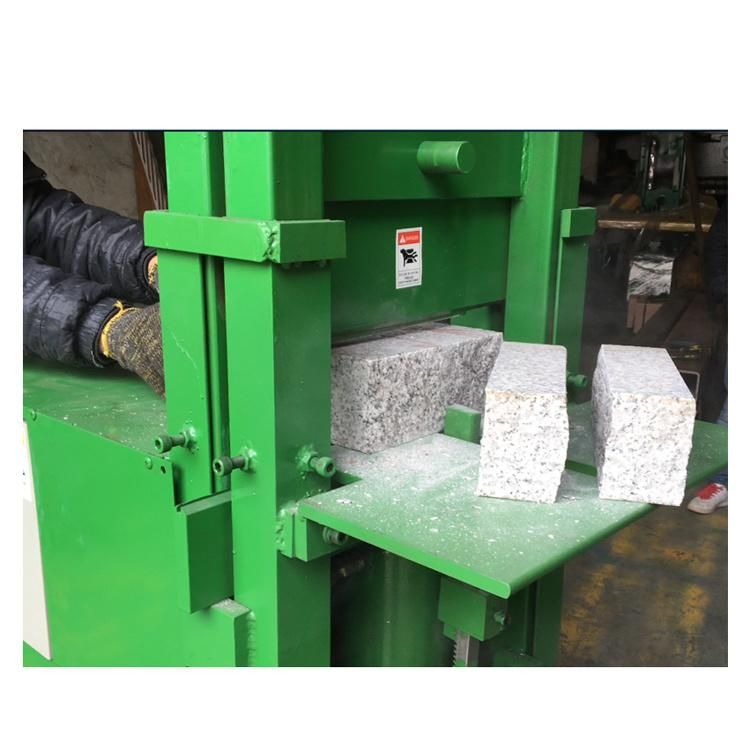

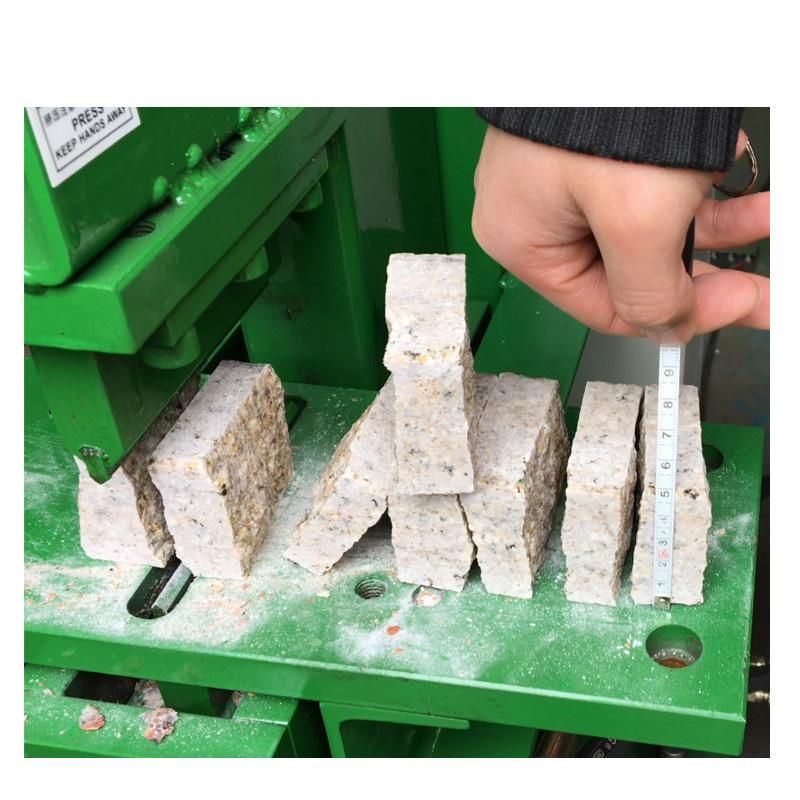

here are the Pictures for this splitting machine to cut cubic stone detailes:

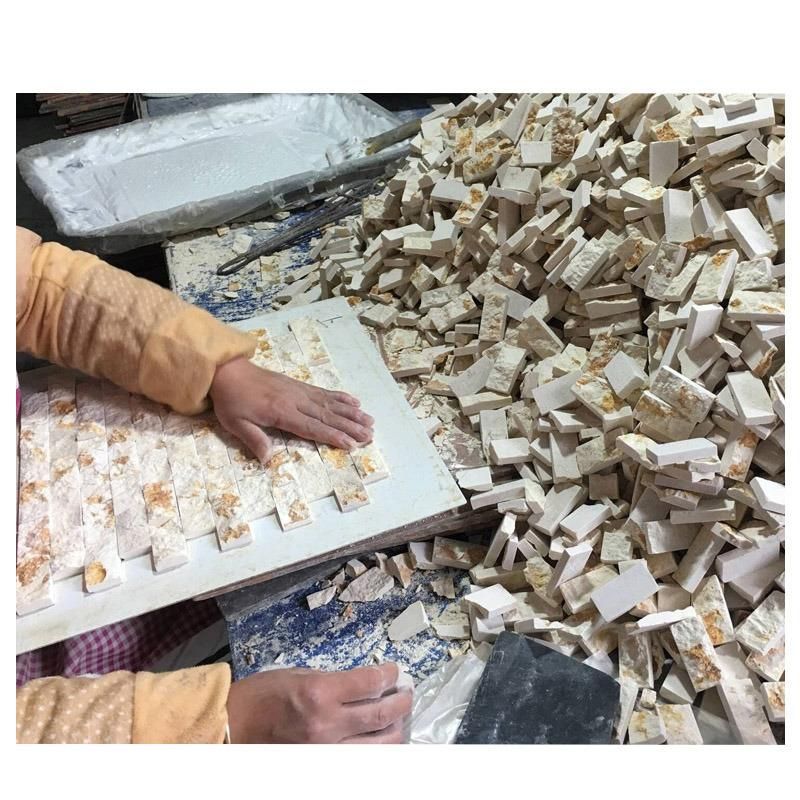

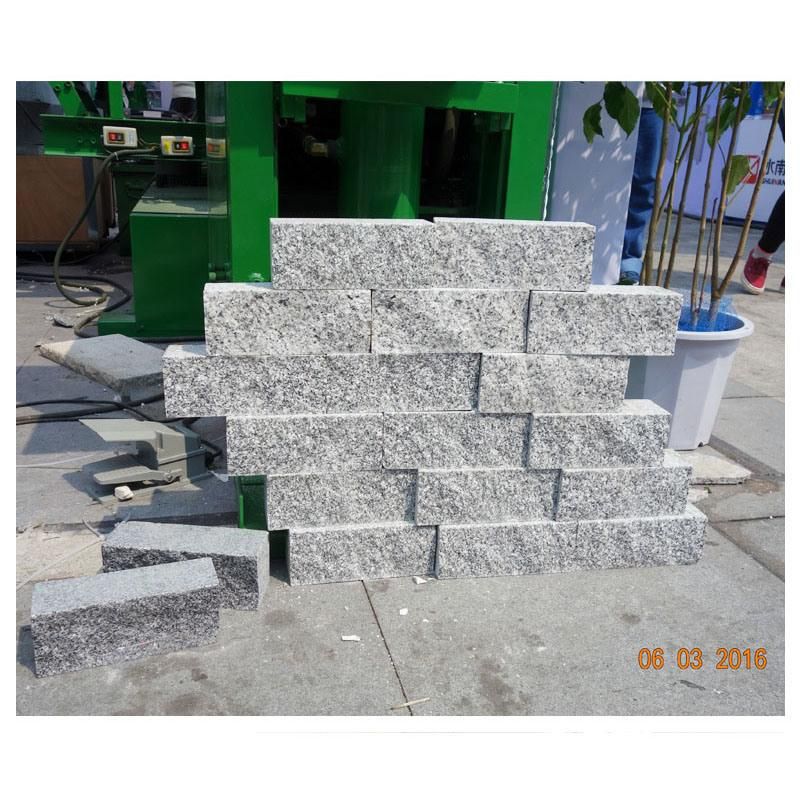

Here's the stone effort for this clading stone machine, to make tessera, cubes etc.



CERTIFICATE:

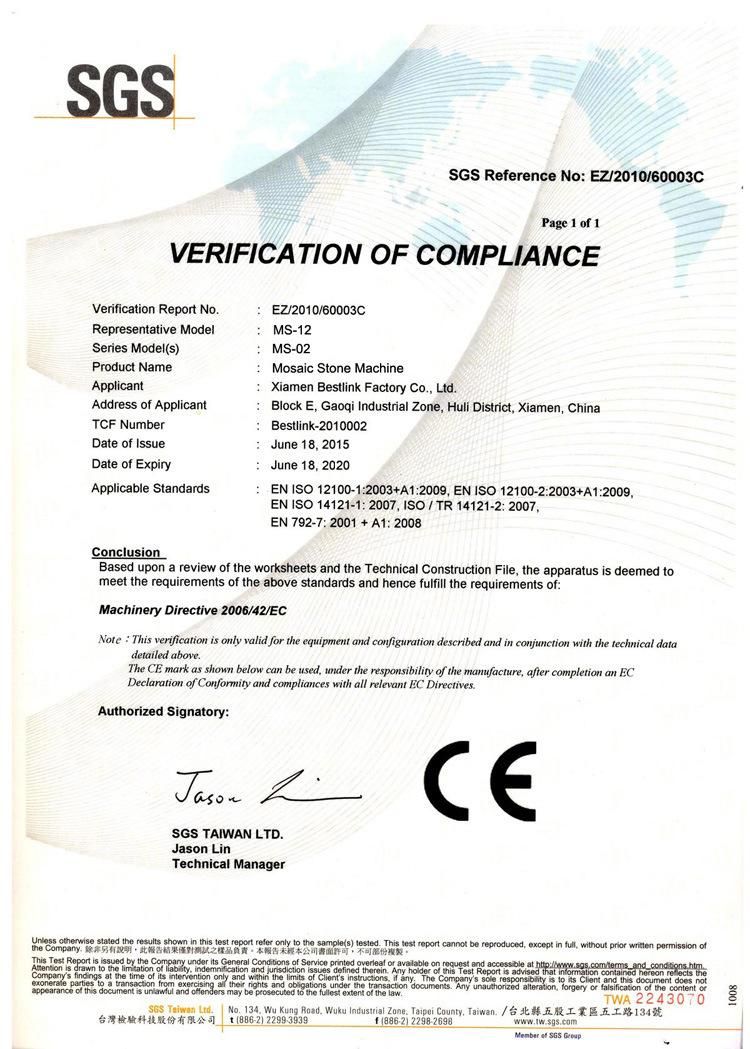

Our hydraulic wall clading mosaic stone cutting machine has CE certificate.

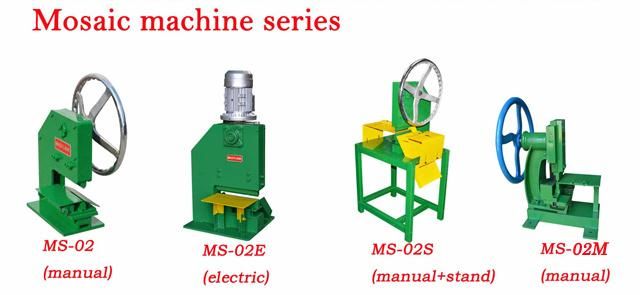

Other Mosaic cutting machine series:
We also have other type of mosaic stone cutting machine for your reference, including manual and electric type.
