• Model NO.：UG-1325
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Working Area：1300(X)mm*2500(Y)mm*550(Z)mm
• Cooling：Stainless Steel Water Slot Cooling(Build in)
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
• Driving Mode：Stepper Motor and Driver
• Spindle Motor：5.5kw Water Cooling, Er25
• Spindle Speed：0-24000rpm
• Control System：PCI Ncstuido
• Lubrication：Semi-Auto
• 4th Axis Rotary Axis：Diameter 400mm, Working Length 2500mm, Reduction
• Computer Cabinet：Included
• Transport Package：Plywood Case
• Specification：3680*2252x2230mm, 1600KGS
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. UG-1325 Certification CE, ISO Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Working Area 1300(X)mm*2500(Y)mm*550(Z)mm Cooling Stainless Steel Water Slot Cooling(Build in) Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Lead Ball Scre Driving Mode Stepper Motor and Driver Spindle Motor 5.5kw Water Cooling, Er25 Spindle Speed 0-24000rpm Control System PCI Ncstuido Lubrication Semi-Auto 4th Axis Rotary Axis Diameter 400mm, Working Length 2500mm, Reduction Computer Cabinet Included Transport Package Plywood Case Specification 3680*2252x2230mm, 1600KGS Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 84659900 Production Capacity 200 Sets/Month

Product Description

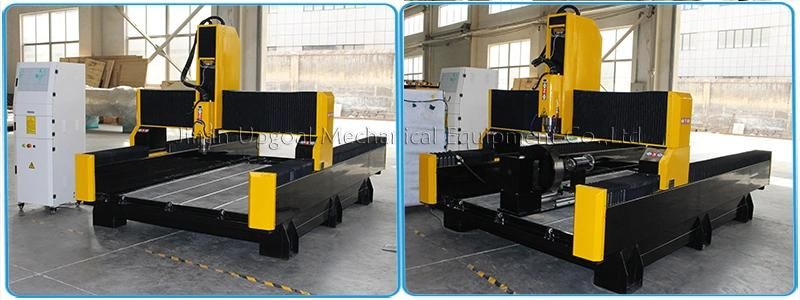

1300*2500mm Heavy Duty 4 Axis 3 Axis Stone Engraving Machine



Features

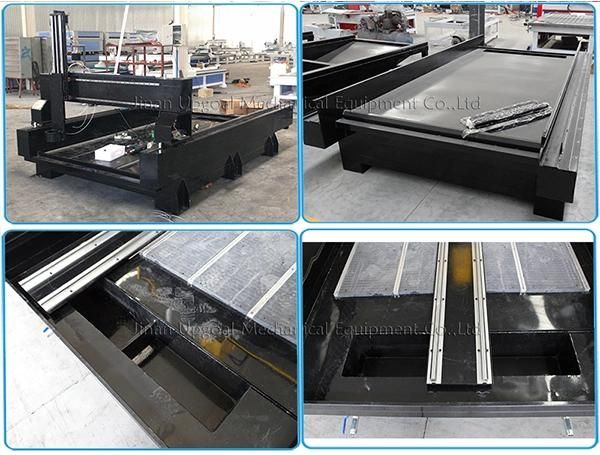

1.Adopted strong heavy duty T type steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.

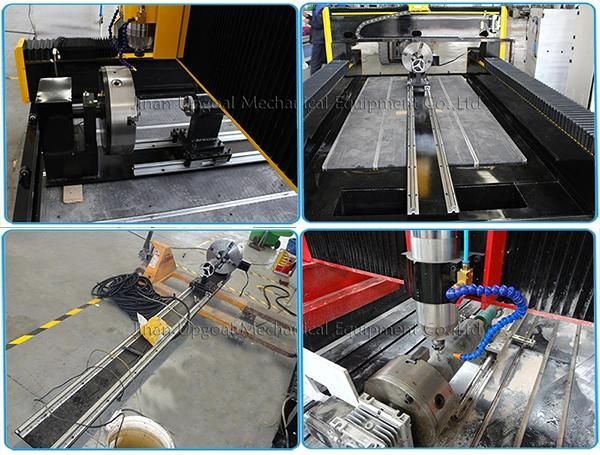

2.4th axis rotary axis, diameter 400mm, working length 2500mm, reduction gear transmission, for stone cylinder carving.

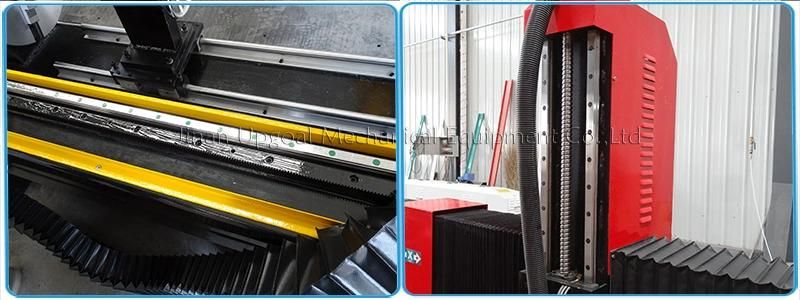

3.XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.

4.Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

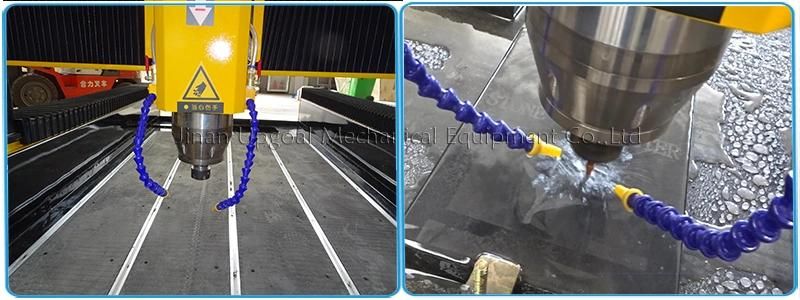

5. Powerful 5.5kw water cooling spindle(ER25), easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear. Bothway tools cooling system, effectively improve tools life time.



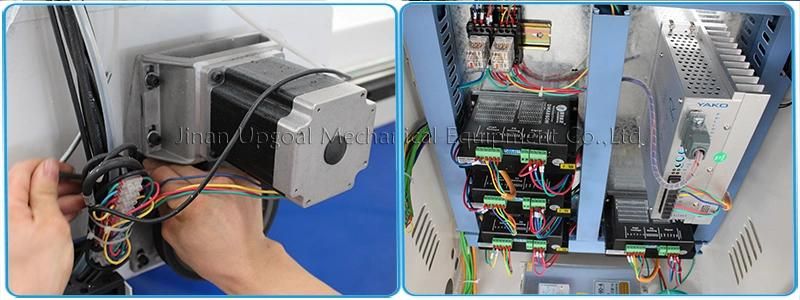

6.China famous Chuangwei stepper motor and Leadshine/Yako driver for XYZA-axis, high precision, faster speed and more stable. Dual motor and driver for Y-axis,ensuring the stable moving.



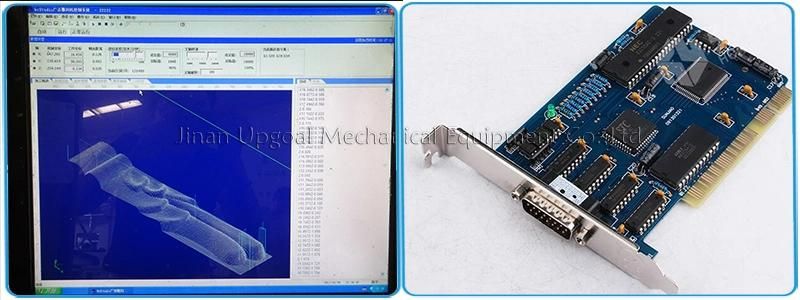

7.PCI NcStudio control system, with high precision, low noise, showing the processing path, memory function after break point and power failure.

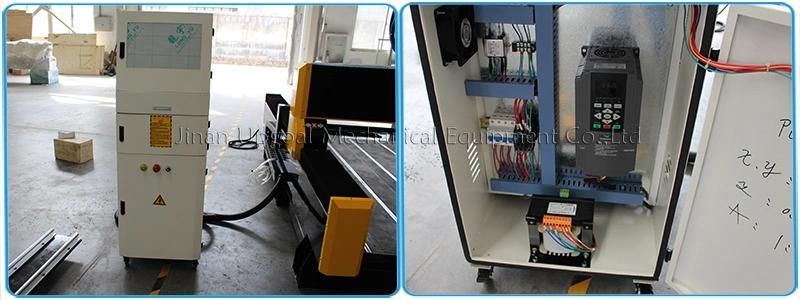

8.Independent control cabinet, keeps the computer away from dust during working.



9.Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.

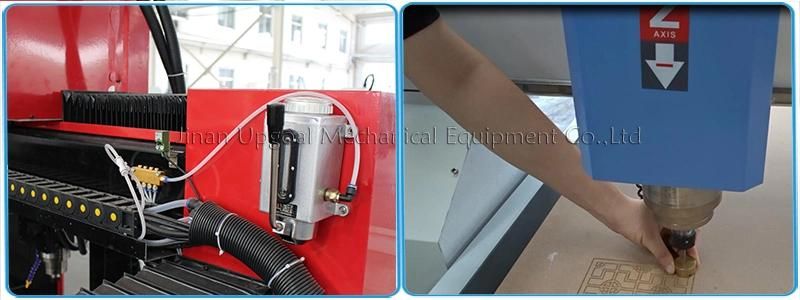

10. Semi-auto lubrication sysetem, more convenient and easy for whole machine lubrication.

11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.



12.Special several processing 0 point saving method.

13.Memory of break point and power failure,ensuring continue working after breaking point or next time processing.

14.Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.

Technical Parameters

Effective working area	1300(X)mm*2500(Y)mm*550(Z)mm
4th axis rotary axis	Diameter 400mm, working length 2500mm, reduction gear transmission
Materials	Heavy duty T type steel pipe welded structure
Working table	Strong aluminum alloy T slot
Cooling system	Stainless steel water slot cooling( Integrated)
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor (Chuang wei) and driver (Leadshine & Yako) for XYZ-axis
Spindle motor	5.5kw water cooling, ER25
Spindle speed	0-24000rpm
Inverter	Sunfar
Voltage	AC 380V±10%, 50/60Hz, three phases
Traveling speed	>28000mm/min
Engraving speed	>15000mm/min
Machine accuracy	0.03mm
Control system	PCI NcStudio
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE

Application

Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.

Reference Sample Photos

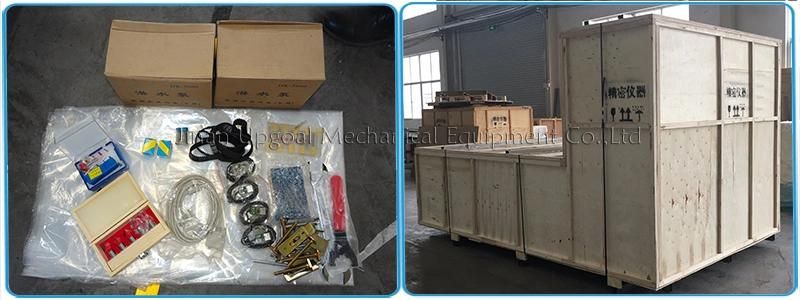

Accessories & packing
