• Model NO.：QSQ-2200,2500,3000
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：CE
• Control System：PLC(Imported Brand)
• Blade Diameter：900-3000mm
• Max. Cutting Size：2800(3800)*2100*1350mm
• Water Consumption：30m3,H
• Feature：High Cutting Efficiency
• Transport Package：Sea Worthy Packaging, Fully Wrapped with Waterproo
• Specification：7500(8500)*4000*6100mm
• Trademark：WANLONG
• Origin：Fujian, China
• HS Code：8464101000
• Production Capacity：30sets , Month

Basic Info.

Model NO. QSQ-2200/2500/3000 Automation Automatic Cutting Ability High Speed Control PLC Certification CE Control System PLC(Imported Brand) Blade Diameter 900-3000mm Max. Cutting Size 2800(3800)*2100*1350mm Water Consumption 30m3/H Feature High Cutting Efficiency Transport Package Sea Worthy Packaging, Fully Wrapped with Waterproo Specification 7500(8500)*4000*6100mm Trademark WANLONG Origin Fujian, China HS Code 8464101000 Production Capacity 30sets / Month

Product Description

High Efficiency Wanlong Mulitblade Bridge Block Cutting machine for Granite


QSQ-2200 Stone Machine / Block Cutting Machine
1)Bridge Multi blade Cutting Machine
2)Automatic Granite Block Cutting machine
4)High Productivity & multi disc machine

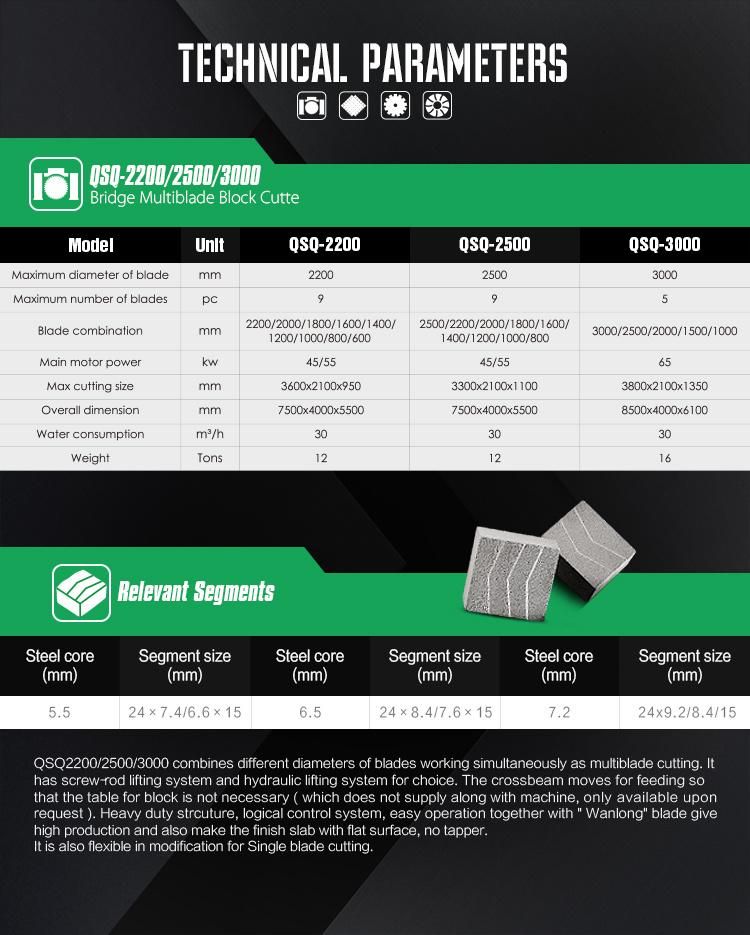

		QSQ-2200	QSQ-2500	QSQ-3000
Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	6.5	6.5
Main motor power	KW	45/55	45/55	37/65
Max.Cutting size(L x W x H)	mm	3600*2100*950	3300*2100*1100	2800*2100*1350
Overall dimensions (L x W x H)	mm	7500*4350*6000	7500*4350*6500	7500*4350*6700
Water consumption	m3/h	30	30	30
Approximate weight	Kg	12000	12000	12000

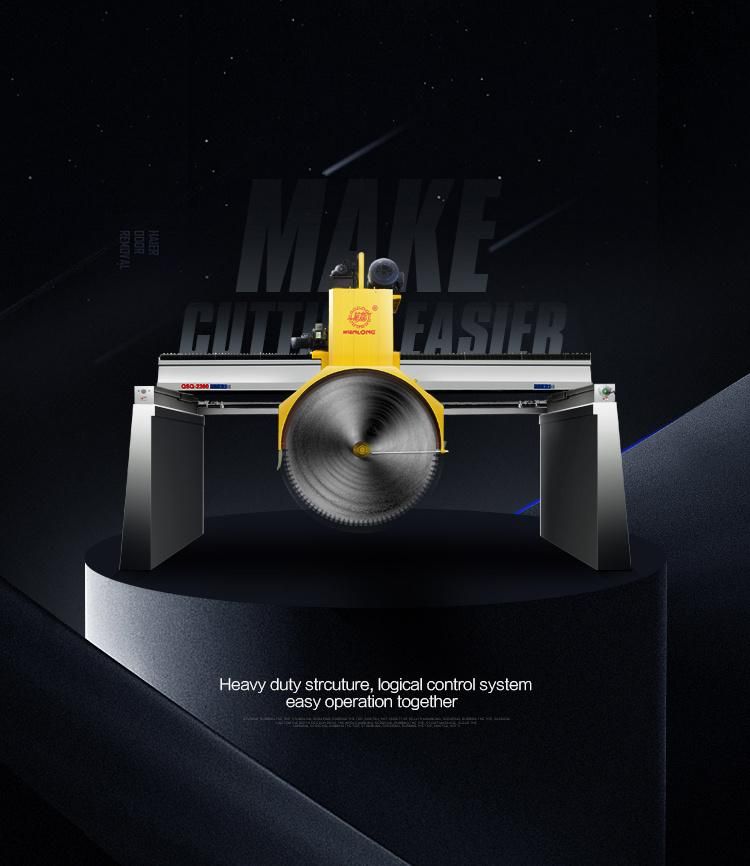

QSQ-2200/2500/3000 mulitblade block cutting machine combines different diameters of blades working, and hydraulic lifting system four columns type, make the machine with high cutting efficiency. The cross beam moves for feeding and slicing, so that the table for block is not necessary. Heavy duty structure, logical control system easy operation together with "Wanlong" Blade give high production and make the finished slabs with flat surface.

Features:

Strong Casting Iron crossbeam and vertical beam to avoid distortion after long-term use

Dustproof design of the slide track ensures the precise guide movement & long lifespan

Double V-Shape guide rails enhance the smooth cutting and movement

Blade slicing by crossbeam back and forward encoder

Optional Motor Power: 37kw, 45kw and 55kw are available upon request. SIEMENS BRAND available!!

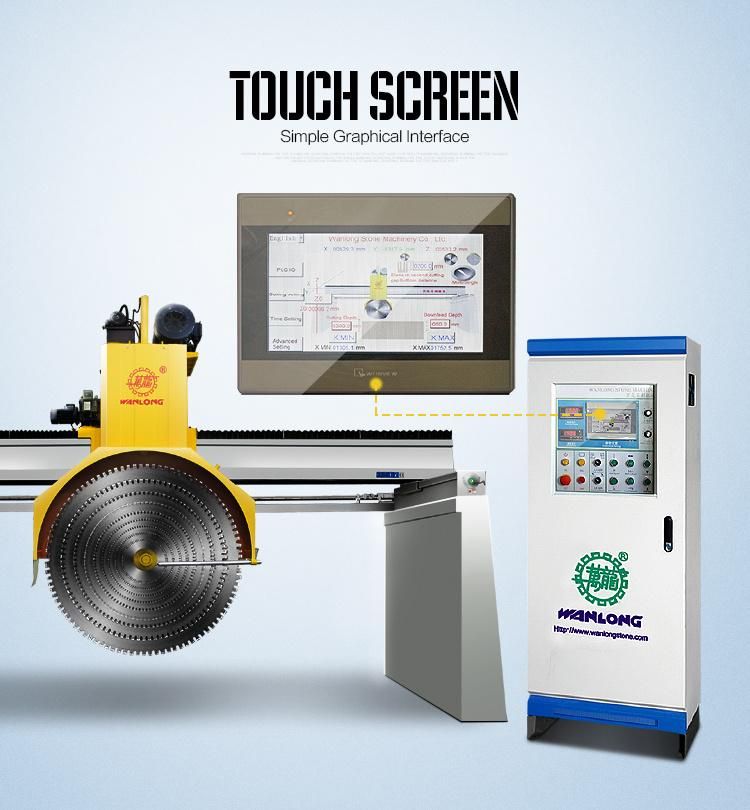

Touch Sensitive Panel  Easy for worker of not high education to operate

with encoder on machine's 3 axis, X, Y,Z-real Automatic

locking system on vertical beam protects the machine collaption

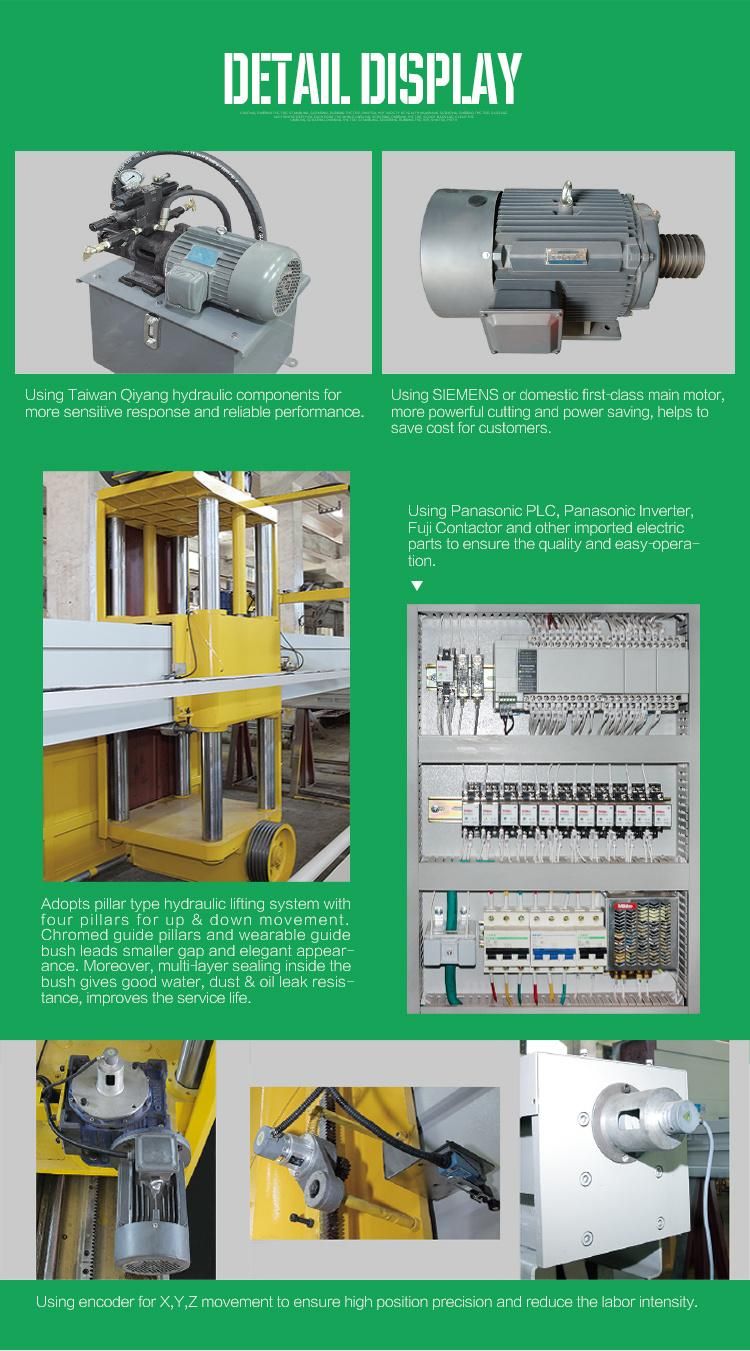

Leading system available in hydraulic-fast blade lifting

Imported Electronic parts: PLC and frequency inverter- Panasonic; relay-Fuji, Mitsubishi air switch etc.

Company Information

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Stone Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.

For more informaton about the QSQ series mulitblade bridge block cutter, pls feel free to contact us.
