• Model NO.：ERS1420V
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Warranty：3 Years
• Controller：DSP,Mach3,Syntec
• Motor：Servo Motor and Driver
• Rail：Taiwan PMI,Hiwin,Shac
• Software：Artcam,Jdpaint
• Lathe Bed Structure：Heavy Duty Steel Structure
• Spindle Power：7.5kw
• Spindle Brand：Hqd,CS
• Payment Item：30% in Advance, 70% Before Shipment
• Package：Water-Proof Film and Plywood
• Transport Package：Plywood
• Specification：1400*2000mm
• Trademark：Eastrise
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. ERS1420V Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Warranty 3 Years Controller DSP/Mach3/Syntec Motor Servo Motor and Driver Rail Taiwan PMI/Hiwin/Shac Software Artcam/Jdpaint Lathe Bed Structure Heavy Duty Steel Structure Spindle Power 7.5kw Spindle Brand Hqd/CS Payment Item 30% in Advance, 70% Before Shipment Package Water-Proof Film and Plywood Transport Package Plywood Specification 1400*2000mm Trademark Eastrise Origin Jinan, China HS Code 8465990000 Production Capacity 5000 Sets/Year

Product Description

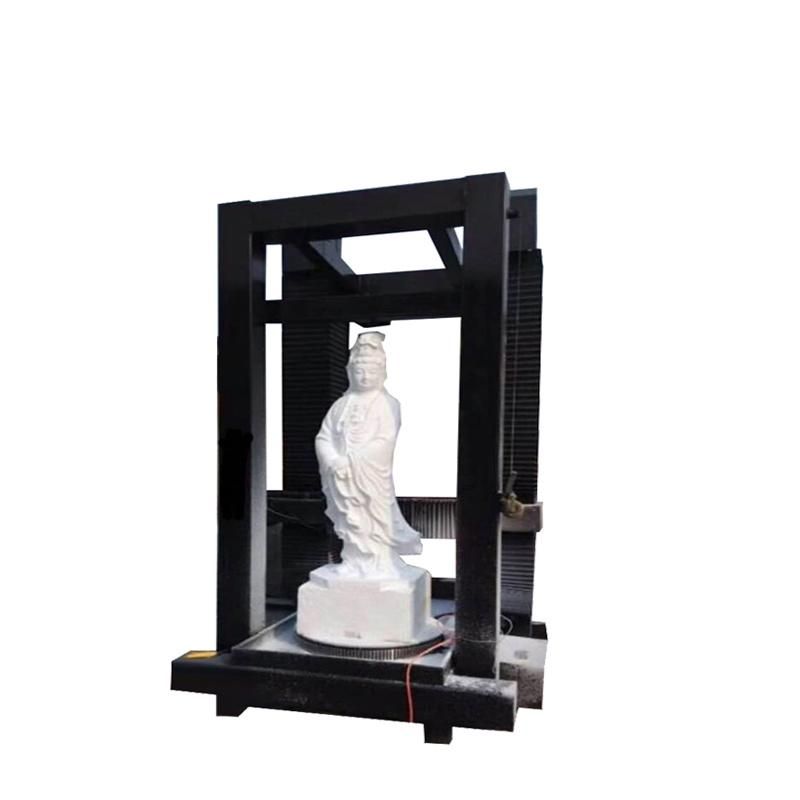

 4 Axis CNC Router Machine for Marble Stone Buddha Carving



Application

2D 3D engraving, line engraving, cutting, slotting, edge inversing, drilling, polishing

 on Marble,Granite, Artificial stone,Ceramic Tile,Milestone,Terrazzo,Limestone,Sandstone,

Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Glass, Plexiglass,Wood, Plastic,

Eps foam, Aluminum composite panel, Aluminum block, Copper and so on.

Advantage

a) All machine parts adopt high configuration and top quality from all over the world,
to make machine with high performance and durability.

b) Machine is with a big standing type rotary device, can process different kinds

of 3d sculptures,statues,columns.

c) With saw blade unit for fast roughing, saved lots of maching time,largely increased

working efficiency.

d) Machine structure is very stable, ensure the working stability

Technical parameters

Working size	1400mm diameter, 2000mm length
Reposition accuracy	±0.03mm
Max traveling speed	40m/min
Transmission	Rack and opinion
Software environment	WindowsXP/7/8/10
Spindle power	7.5KW
Power without spindle	2KW
Voltage	220V/380V
Spindle speed	6000-24000rpm/min

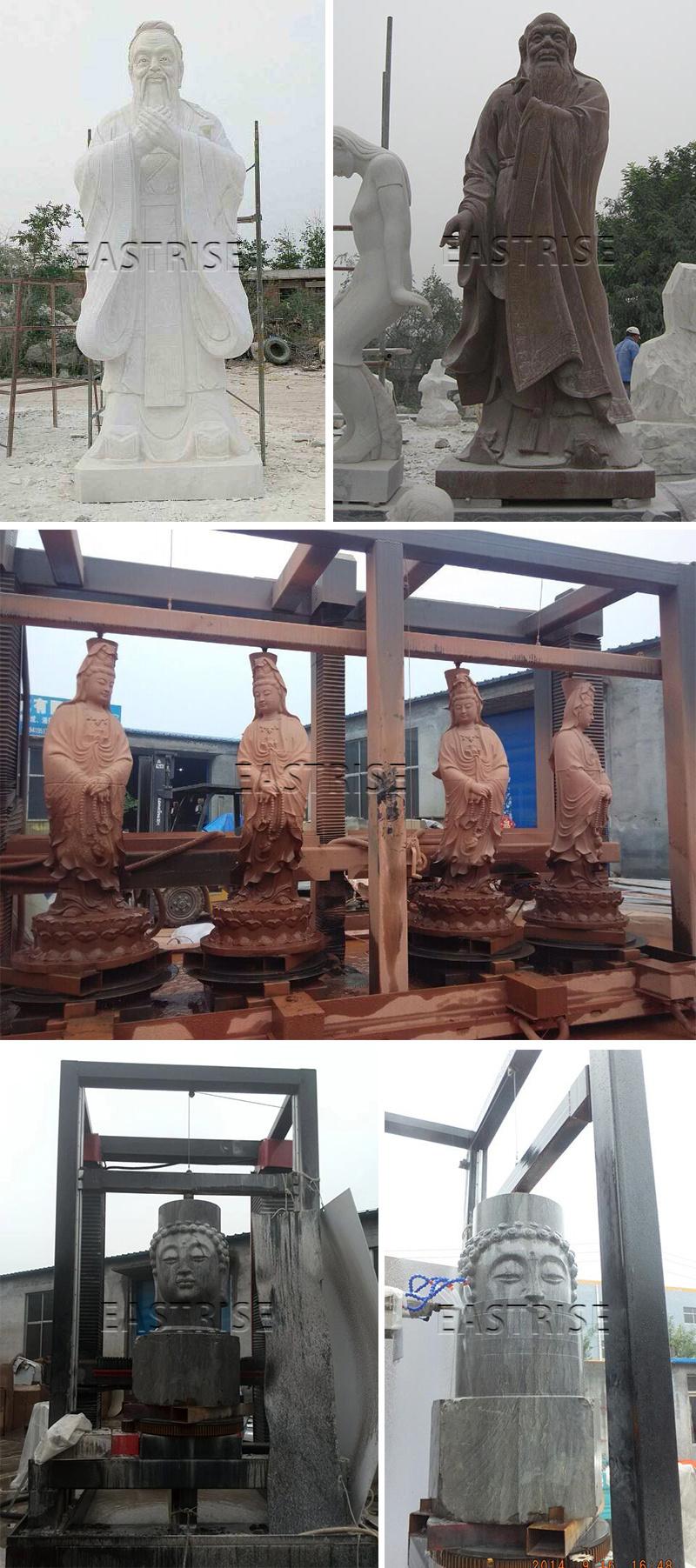

Machining

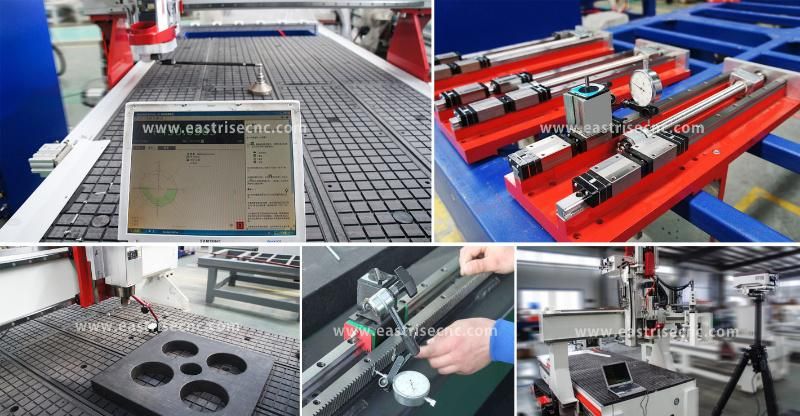

Testing

Exhibition

Technical Department

Certificates


FAQ

1.How long is your machine's warranty?

3 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.How about package of shipment?

Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
