Irregular Stone Veneer Saw Cutting Machine for Smooth Face Corner Stone

Xiamen Bestlink Factory Co., Ltd.
  • Usage：Ceramics, Granite, Marble
  • Application：Stone Industry

Base Info

  • Model NO.：VS-30
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：Low Speed
  • Control：Control Panel
  • Certification：CE
  • Blade Diameter：750mm-1200mm
  • Condition：New
  • Warranty：1 Year
  • Power：22 , 45 Kw
  • Blade Number：Single
  • Cutting Depth：280-450 mm
  • Color：Customized
  • Transport Package：Nude Packing
  • Specification：3100mm*1600mm*1730mm
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84791090
  • Production Capacity：100 Sets,Month

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min

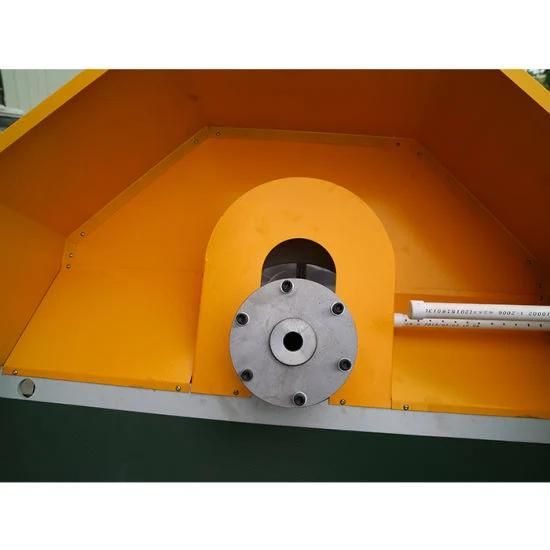

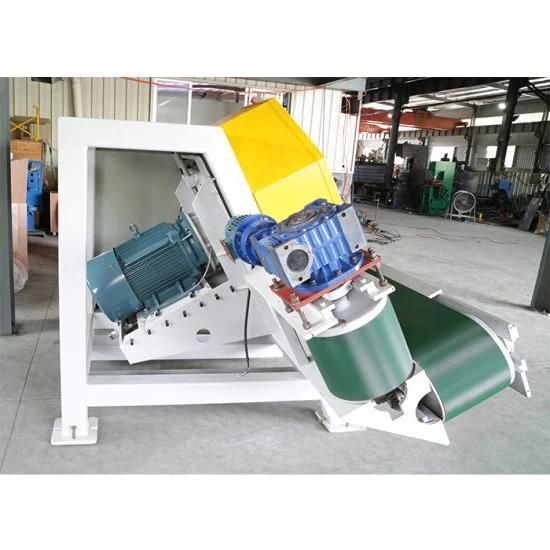

Pictures for the Thin Veneer Saw Machine Detailes:

Irregular Stone Veneer Saw Cutting Machine for Smooth Face Corner Stone
Irregular Stone Veneer Saw Cutting Machine for Smooth Face Corner Stone
Irregular Stone Veneer Saw Cutting Machine for Smooth Face Corner Stone
