• Model NO.：GBQQJ-3000
• Control：Artificial
• Certification：ISO, CE
• Key word：cut slabs
• Operation：PLC system
• Transport Package：Iron Tray
• Specification：8700*3700*6800mm
• Trademark：Great Base
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：30sets,Month

Basic Info.

Model NO. GBQQJ-3000 Control Artificial Certification ISO, CE Key word cut slabs Operation PLC system Transport Package Iron Tray Specification 8700*3700*6800mm Trademark Great Base Origin Xiamen, China HS Code 84641090 Production Capacity 30sets/Month

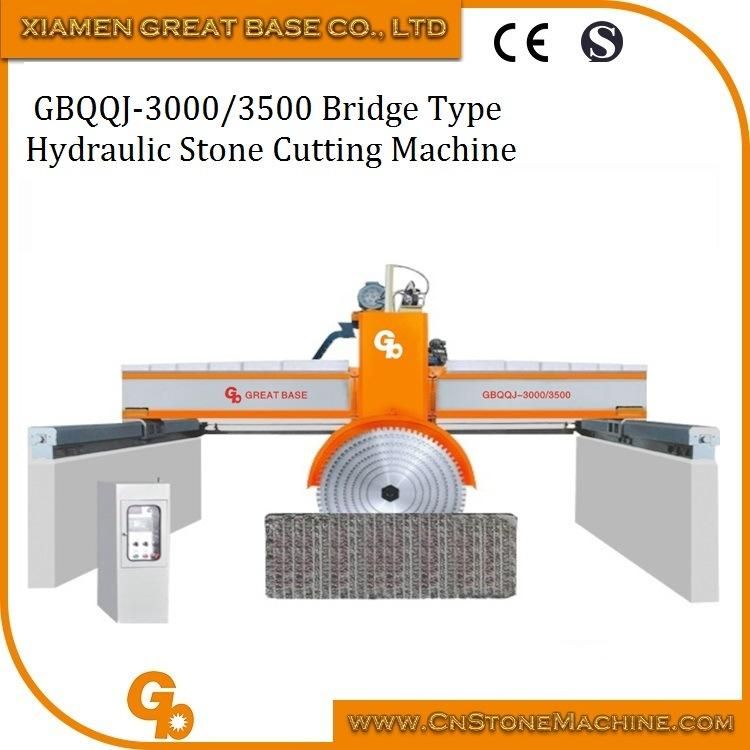

Product Description

Welcome to our show

Product Description

1. It is PLC system, can achieve fully automatic cutting.
2. It uses one different blade installing way so that it can save the blades cost.
3. It doesn't need trolley to achieve slicing, so that you can save maintain cost.
4. It uses double cylinders to go up/down, more stable and quickly.

Main Features

1) Easy in installation and maintation.

2) PLC is Omron from Japan.

3) The gear in th headstock is M=8, much stronger.
Technical Data

Name	Unit	GBQQJ-3000A	GBQQJ-3000B	GBQQJ-3500
Saw blade diameter	mm	Total 6pcs, Max.¢3000	Total 6pcs, Max.¢3000	Total 6pcs, Max.¢3500
Max. horizontal stroke	mm	2700(cutting length)	3500(cutting length)	3000(cutting length)
Max .up-down stoke	mm	1300(cutting depth)	1350(cutting depth)	1500(cutting depth)
slicing stroke	mm	2300(cutting width)	2300(cutting width)	2300(cutting width)
Main motor power	kw	55	55	55
Girder length	mm	7500	8700	8700
Water consumption	m3/h	12	13	14
Weight	kg	14000	16000	17000

Advantages of this machine

1. Steel Cover for the bridge:

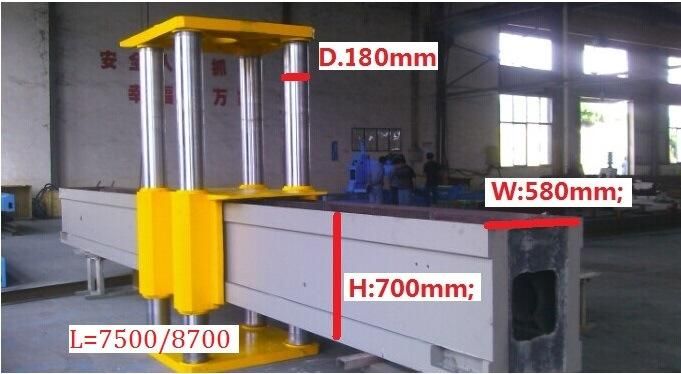

2. Bigger up/down Column: D.180mm, Bigger Bridge

Any interest, please feel free to contact with me!
