• Model NO.：PF 1515
• Finished Surface：Cut Off Tool
• Certification：CE, ISO
• Condition：New
• Color：Red
• Quality Guarantee：Ce Standards
• Performance：Stable
• Name：Stone Impact Crusher
• Quality：High
• Model Number：PF-1315
• Capacity(T/H)：140-200
• Object：Metal
• Tongs′ Features：Universal Tongs
• Transport Package：Water and Rust Proof
• Specification：National Standard
• Trademark：hengxing
• Origin：Henan, China
• Production Capacity：140-200 T,H

Basic Info.

Model NO. PF 1515 Finished Surface Cut Off Tool Certification CE, ISO Condition New Color Red Quality Guarantee Ce Standards Performance Stable Name Stone Impact Crusher Quality High Model Number PF-1315 Capacity(T/H) 140-200 Object Metal Tongs′ Features Universal Tongs Transport Package Water and Rust Proof Specification National Standard Trademark hengxing Origin Henan, China Production Capacity 140-200 T/H

Product Description

 Big Size Stone Crusher 300tph Secondary Stone Crusher Equipment 1. Brief Introduction Of Impact Crusher:
Type PF impact crusheris the newest generation product designed by our company after absorbing the advanced technology in the domestic and foreign, according on concrete industry and mining condition of domestic sand and crushed stone profession industry. It uses the newest technique of manufacture, the unique structural design, the processing end product is to be cube, unstressing and unstretching, quite good grain shape, it can stave every kinds of thick, thin materail (granite, limestone, concrete and so on) which the feed granularity is not to surpass 500mm, the compressive strength stave does not surpass 350Mpa.




2. Application Of Impact Crusher:
Small impact crusher can crush large, medium or small size hard materials( granite, limestone, concrete, ect. This machine is widly used in mining, highway and railroad, construction stuff and other relative industries.

Output size from impact crusher :

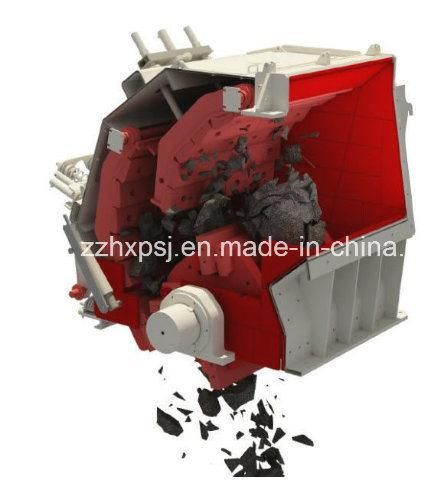

3. Working Principle of Impact Crusher:
When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.


4. Advantages Of Impact Crusher:
Compare to hammer mill, impact crusher has bigger reduction ratio and Can fully use the high speed impact energy of entire rotor. But because the impact crusher board hammer is extremely easy to wear, it also is restricted in the hard material stave application. Impact crusher is usually used to break thick garrulous, garrulous or the limestone, the coal, the calcium carbide, the quartz, the dolomite, the curing iron ore, the gypsum and the industrial chemicals which are hard following brittle material.


5.Impact crusher main technical specifications :

Model	Specification (mm)	Feeding  size(mm)	Max  feed  size(mm)	Capacity (t/h)	Motor  power(kw)	Weight(kg)
PF-0607	644*740	320*770	100	10-20	30	10216
PF-0807	850*700	400*730	300	15-30	30-45	11138
PF-1008	1000*800	400*830	300	30-50	37-55	12206
PF-1010	1010*1050	400*1080	350	50-80	55-75	13138
PF-1210	1250*1050	400*1080	350	70-120	110-132	15200
PF-1212	1250*1250	400*1300	350	100-150	132-160	17025
PF-1214	1250*1400	400*1430	400	130-180	160-200	19015
PF-1315	1320*1500	860*1520	500	160-250	180-260	24600
PF-1320	1320*2000	860*2030	500	300-350	300-375	29800
PF-1520	1520*2000	980*2980	700	400-500	400-480	38600

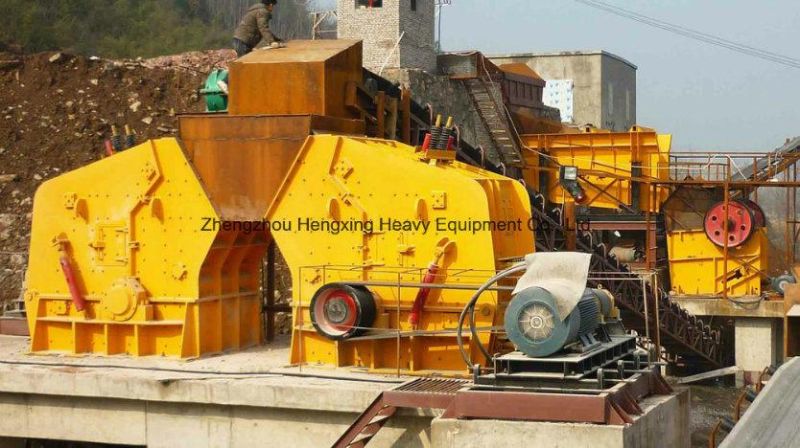

Stone Impact crusher customer case :

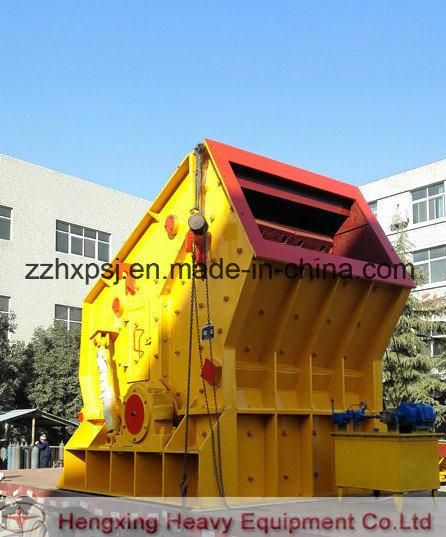

6.Impact crusher package and shipping :

Our service
Hengxing equipment  can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.

About Spare Parts
Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.

About Training
Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer's expectations. Training programs can be conducted in our workshop, or at customer's site.

About Installation and Commissioning
Hengxing equipment  are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.



Why choose us?
1We have special Machinery Research Institute

2Our product quality has been in line with international level

3Our products are exported to ninety countries and regions

4We are dedicated to providing best solutions and turnkey projects

5A variety of honor to witness, 100% professional

6We provide you with all-round, one stop services
