• Model NO.：M7130Ax4500
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Semi-Dry Grind
• Condition：New
• Table Size(Wxl)：300X4700 mm
• Max. Machining Dimension(Wxl)：300X4700 mm
• Max. Distance Between Spindle：525mm
• Chuck Size (W X L)：300X1000(mm)
• Max. Loading Capacity of Worktable with：2100kg
• Transport Package：Plywood
• Specification：CE
• Trademark：customer brandv
• Origin：China China
• HS Code：8466200
• Production Capacity：50sets, Per Month

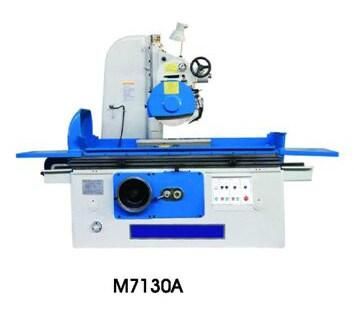

M71 wheel head moving surface grinder  Item/ModelUnitM7130Ax4500table size(WxL)mm300x4700max. machining dimension(WxL)mm300x4700max. distance between spindle center line and worktable surfacemm525longitudinal moving speed of worktablem/min5-25T-slot number x Wmm3x18wheel head cross movingcontinuous feed speedm/min0.5-4.5 intermittent feed speedmm/t3-30 hand wheel feedmm/gra0.02wheel head vertical movingrapid speedmm/min400feed of handwheelmm/gra0.005wheel head motorpowerkw7.5rotation speedrpm1440total powerkw15.5max. loading capacity of worktable with chuckkg2100chuck size (W x L)mm300x1000wheel size (ODxWxID)mm400x40x127machine dimension(LxWxH)cm1220x170x203package dimensions(LxWxH)cm1250x220x213machine weightt12*M7130AL with air cooling apparatus for hudraulic system of the machine to realize small increase of oil tank temperature.
