• Model NO.：DTQ-450,600,700,800
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：CE
• Product Name：Stone Bridge Saw Cutter Cutting Machine
• Cutting Materials：Marble Granite Tile Quartz Sandstone Natural Rock
• Control Model：PLC CNC Precision Infrared Laser Processing
• Slab Size：3200X2000mm
• Blade Diameter：450 600 700 800 1000 1200 mm
• Max.Titling Degree for Work-Bench：85
• Rotating Degree Range for Work-Bench：0-90,0-360
• Locating Degree for Work-Bench：0-45-90
• Color：According to Your Requirement
• Blade Quantity：1
• Transport Package：20 Gp
• Specification：DTQ-450,600,700,800,1000,1200
• Trademark：DECHEN
• Origin：China
• HS Code：8464109000
• Production Capacity：288 PCS,Year

Model

DTQ-450

DTQ-600

DTQ-700

DTQ-800

Max. cutting size

3200*2000*100mm

3200*2000*175mm

3200*2000*225mm

3200*2000*275mm

Diameter of blade

Φ400-Φ450mm

Φ400-Φ600mm

Φ400-Φ700mm

Φ400-Φ800mm

Size of worktable

3200*2000mm

3200*2000mm

3200*2000mm

3200*2000mm

Vertical turning angle of worktable

0-85°

0-85°

0-85°

0-85°

Rotation angle of worktable

0-90/0-360°

0-90/0-360°

0-90/0-360°

0-90/0-360°

Main motor power

15KW

18.5KW

18.5KW

18.5KW

Water consumption

3.5m³ /h

3.5m³ /h

3.5m³ /h

3.5m³ /h

Overall dimension

6000*4800*2600mm

6000*4800*2800mm

6000*4800*3150mm

6000*4800*3300mm

Total weight

8674KG

    9161KG

      10151KG

        10650KG

Stone Machine Feature:

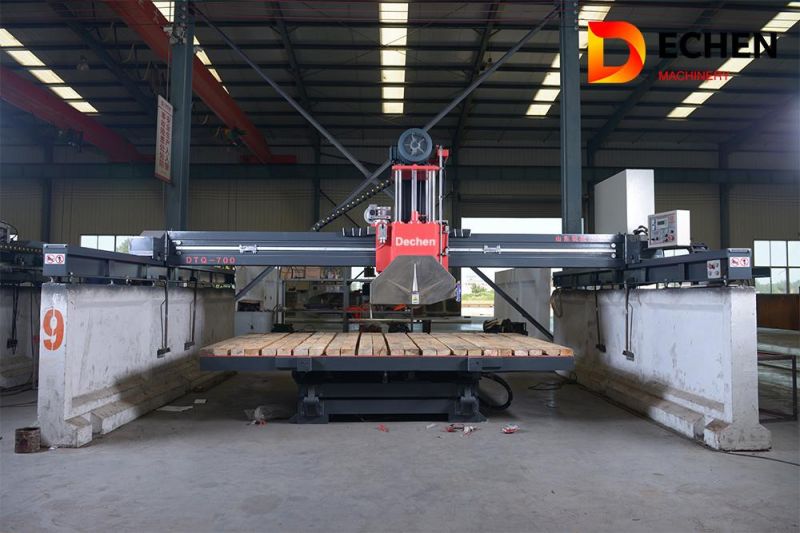

     1.    The bridge type infrared stone cutter is operated by computer so that it work automatically.

     2.    The parts and accessories of which are made of high quality steel.
