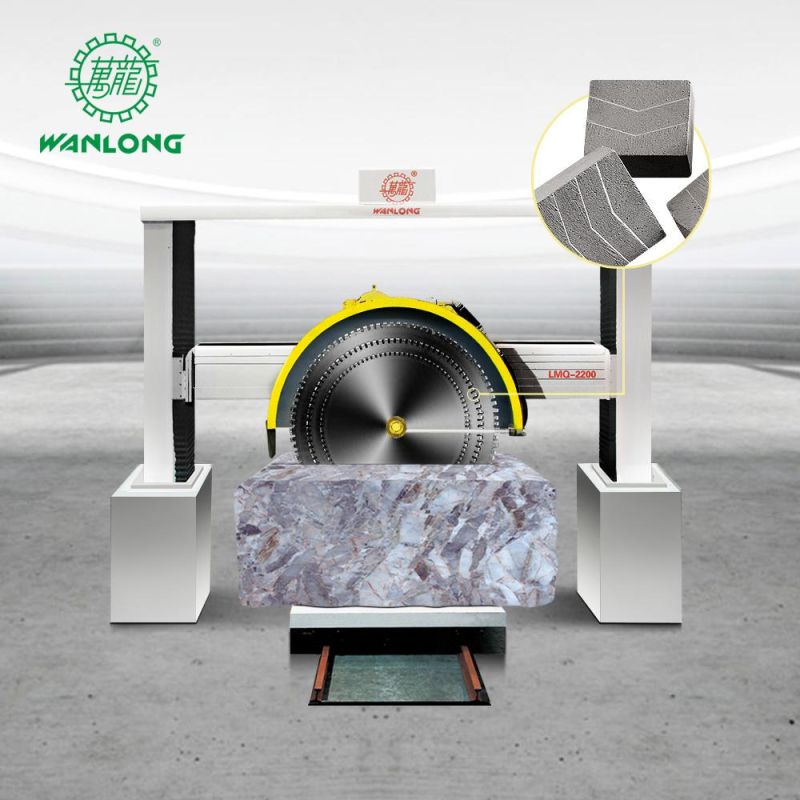

Fully Automatic Medium Granite Block Cutting Machine
Fujian Wanlong Diamond Tool Co., Ltd.- Warranty：12 Months
- Type：Laser Cutting Machine
- Usage：Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble, Gantry Column Cutting Machine
- Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Frame Gantry Cutting Machine
- Source Voltage：220V,380V,415V, Available Upon Request
- Automation：Automatic
Base Info
- Model NO.：LMQ-2200 2500 3000
- Cutting Ability：High Speed
- Control：CNC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Granite Countertop Cutting Machine
- Product Name：Gantry Cutting Machine
- Main Motor Power：45,55,65kw
- After Sales Service Provide：Engineer Available Service Machinery Overseas
- Max. Processing Size：3400X2000X1350mm
- Water Consumption：10m3,H
- Approximate Weight：9-12 Tons
- Quality：European Standard
- Transport Package：Seaworthy Wooden Case for Auto Cutting Machine
- Specification：7000x4700x6000mm
- Trademark：Wanlong
- Origin：Fujian, China
- HS Code：84641000
- Production Capacity：5000sets Per Year
Description
ModelLMQ-2200 LMQ-2500 LMQ-3000 Max. blade diameter mm 2200 2500 3000 Max. NO. of blades pc 3 1 1 Recommended balde combination mm Φ2200,Φ1600,Φ940 Φ2500 Φ3000 Recommended thickness of blade mm 6.5 6.5 8 Linear speed m/s 37.75 36.75 36.75 Feeding speed mm/min 0-5350mm/min 0-5350mm/min 0-5350mm/min Vertical feeding speed mm/min 590 590 590 Trolley feeding speed mm/min 200 200 200 Main Motor power KW 30 30 37 Table dimensions( L*W) mm 2000*2000 2000*2000 2000*2000 Max. cutting size(L*W*H) mm 3000*2000*950 3000*2000*1100 3400*2000*1350 Overall dimensions(L*W*H) mm 6600*6000*4800 6600*6000*4800 7000*4700*6000 Water consumption m3/h 6 6 10 Approximate weight kg 9000 9000 12000
