• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max Stone Cutting Length：3200mm
• Max Stone Cutting Width：2000mm
• Max Stone Cutting Depth：170mm
• Blade Tilt：0-45 Degree
• Table Tilt：0-85 Degree
• Table Rotate：0-360 Degree
• Power of Spindle Motor：15kw 20HP
• Transport Package：Water-Proof Package
• Specification：Dimention (L*W*H): 6*5*3.05m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max Stone Cutting Length 3200mm Max Stone Cutting Width 2000mm Max Stone Cutting Depth 170mm Blade Tilt 0-45 Degree Table Tilt 0-85 Degree Table Rotate 0-360 Degree Power of Spindle Motor 15kw 20HP Transport Package Water-Proof Package Specification Dimention (L*W*H): 6*5*3.05m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

China CNC Machine Premium Stone Bridge Saw Cutting Granite Marble Quartz
Machine model: XZQQ625A
Stone bridge saw XZQQ625A is the most reliable and effiency machine in the market with the right price. It's made of very strong cast iron for stable running and stainless steel for protection. Full options including  mono frame, blade tilting, table tilting and rotating, pendant control panel, touch screen, wireless remote, laser guide, hydraulic pump, etc.


Specifications of the cnc machine/stone bridge saw:
1) Automated Programming
2) Main Motor: 15 Kw 20 HP
3) Dimensions: (L×W×H) 6×5×3 m    20'×16'×9.9'
4) Cutting size: 3200mm×2000mm×170mm 126'"×78.7"×6.7"
5) Miter Cut Range:0°-45°(Powered by Z hydraulic piston)
6) Powered table rotating: 0°-360°, stopping automatically at 45°,90°, and any angle
7) Table tilting: 0°-85° hydraulic
8) Weight: 7200 Kg 16,000 Lbs


CNC machine/stone bridge saw descriptions with pics:

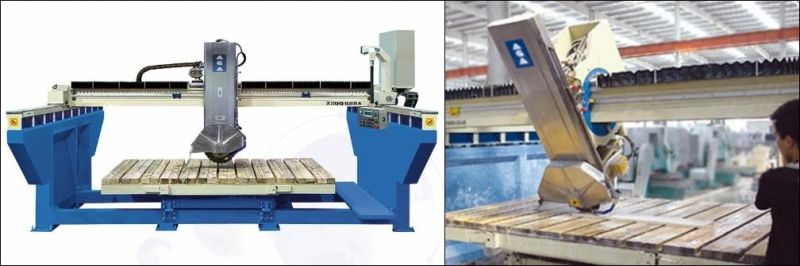

1) Bridge saw structures are made of very strong cast iron and stainless steel for protection. Monoblock frame provides stable operation.

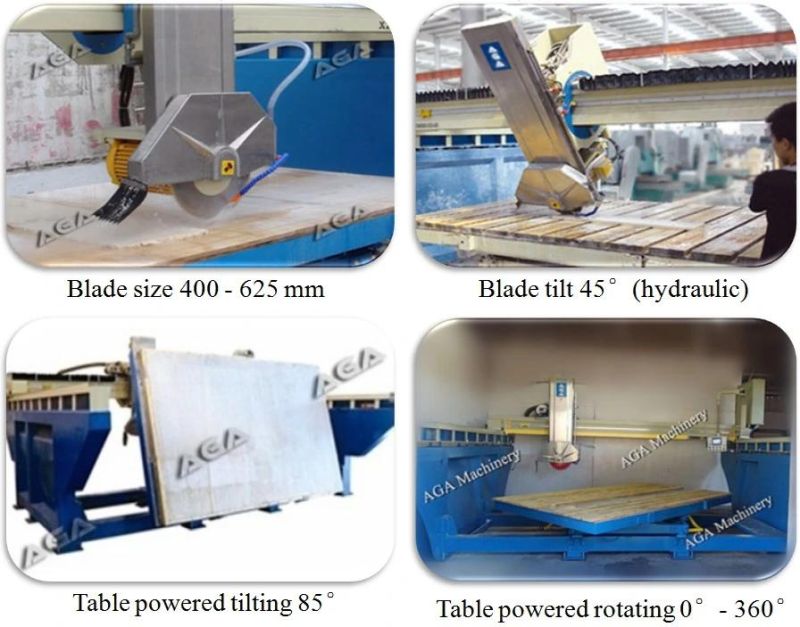

2) The bridge saw head provides 0°-45° tilting for miter cut very excellent performance in cutting and fabricating countertops.
3) Powered table rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position. The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
4) Table tilts 0°-85° for easy load of big slabs.

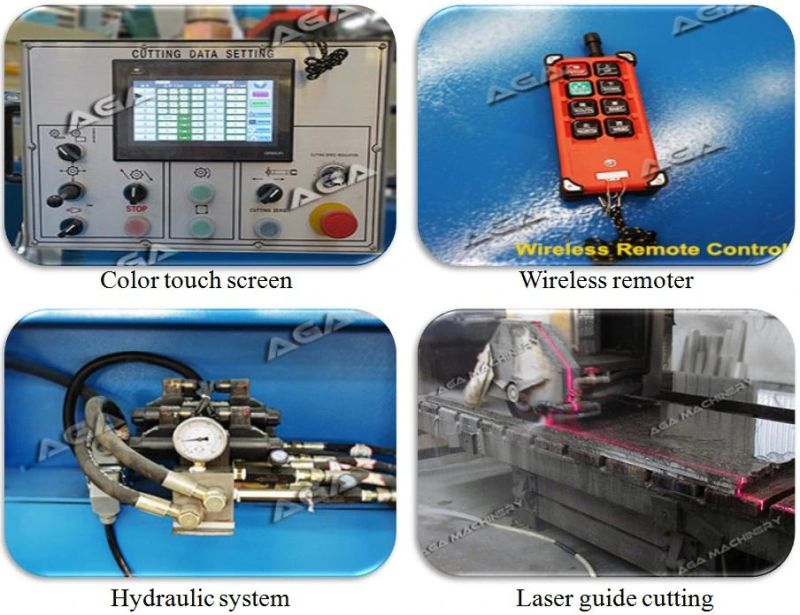

5) PLC control makes each operation easily. All functions are operated on the Display Control Panel.
6) Wireless remoter provides easy conrols of the bridge saw making its users very friendly.
7) Cutting guied by laser provides precision position in +/-0.2mm.
8) This bridge saw is very simple and easy for you to download at the door, also it's very easy to install the machine.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



Bridge saw XZQQ625A shipped out to customers:

What you see will be what you get and what you get will be much more than what you paid. Your dream machine is closer than you think!


Key words:
Granite bridge saw, stone bridge saw, bridge cutting saw, bridge saw, granite saw, stone saw, marble bridge saw, slab cutting machine, granite sawing machine, mabrle cutting machine, granite cutting machine, slab sawing machine, cnc machine, china bridge saw, plc bridge saw, tile cutting machine, bridge cutting machine, china cnc machine, slab cut to size machine, etc.


Looking forward to hearing from you.
