• Model NO.：BD3020H
• Certification：CE, ISO
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Machine Structure：Thick Steel Welded,W,Aging Treatment
• Working Table：Aluminum T-Slot Table Protected with PVC
• Inverter：Fuling,Zoncn
• Cooling System：Water Circlation System
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000*2000*330mm
• Trademark：Boiro
• Origin：China
• HS Code：84649090
• Production Capacity：300sets,Month

Basic Info.

Model NO. BD3020H Certification CE, ISO Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Machine Structure Thick Steel Welded,W/Aging Treatment Working Table Aluminum T-Slot Table Protected with PVC Inverter Fuling/Zoncn Cooling System Water Circlation System Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000*2000*330mm Trademark Boiro Origin China HS Code 84649090 Production Capacity 300sets/Month

Product Description

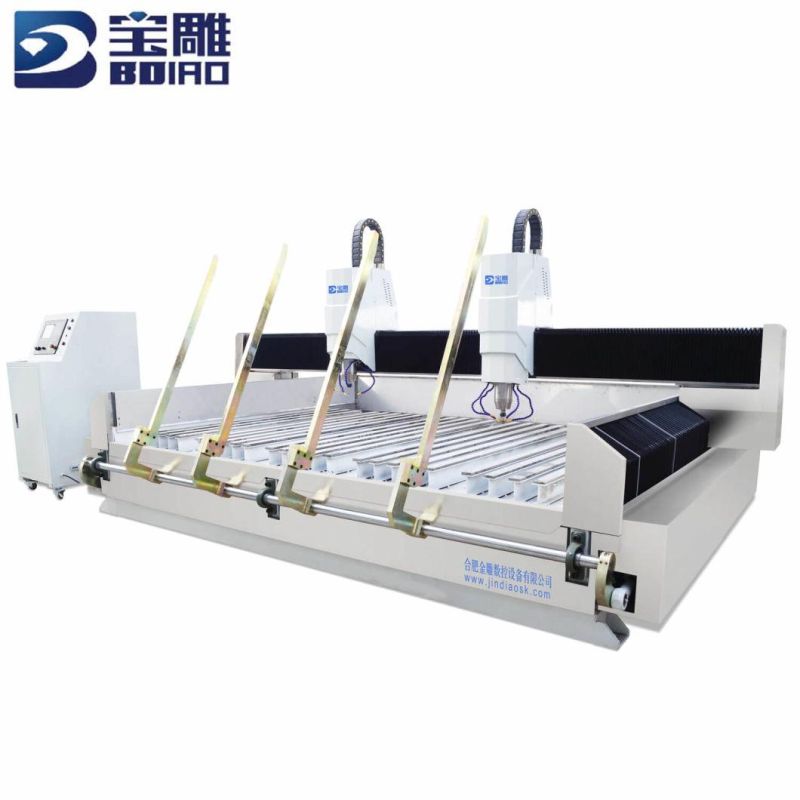

BD3020H Stone CNC Machine with Imported Driver Applied in 3D Relief Of CeramicTiles and Bluestone in all Kinds of Art Relief
Keywords: 15 years experience of production
                        ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brand: Mars, Golden Eagle,Borio





Parameters:


Model	Flip Table Stone CNC Router Machine(Other sizes can be customize as your request)
Machine Structure	Thick steel welded,w/aging treatment
Working Table	Aluminum T-slot table protected with PVC
Water Sink/Tank	Powder-painting(Stainless steel is optional)
X/Y/Z Axis Working Area	3000*2000*330mm
Spindle Motor Power	5.5KW water cooled
Spindle Rotational Speed	Adjustable 0-24000 rpm/min
Control System	NK260
Cooling System	Water Circlation System
Guide Rail	Taiwan Imported Linear rail
Drive System	X/Y axis helical rack & pinion,Z axis Taiwan ball screw
Drive Motor	Stepper Motor(Servo motor is optional)
Inverter	Fuling/Zoncn
Max. Traveling Speed	25m/min
Max. Working Speed	15m/min
Resolution	0.01mm
Dictate Format	G-Code/HPGL
Working Voltage	AC380V 3PH 50Hz
Remark	Hydraulic flip material

Description:
BD3020-H Flip Table Stone CNC Router Machine is BOIRO featured machine widely used in stone processing industry,tombstone processing industry ,mold processing industry,all kinds of art relief,decoration industry,ceramic processing,advertising industry.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.


Functions:
The functions of this machine include 3D relief or 2D sculpture,cutting,chamfering,drilling,etc..



Applicable Materials:
Marble,jade,granite,tombstones,milestones,ceramic tiles,glass,bluestones,etc..

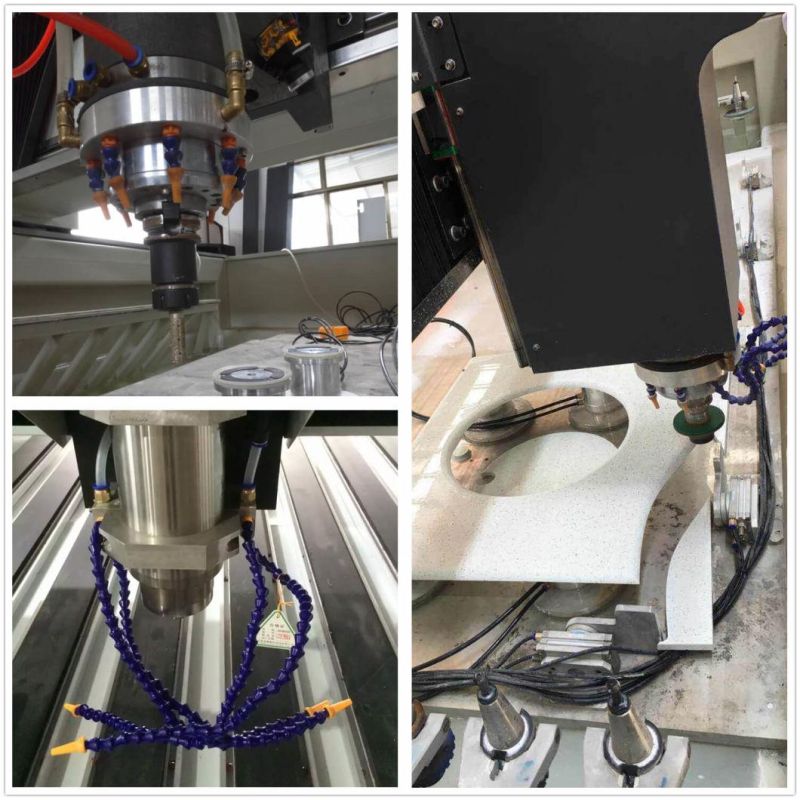

Accessories:

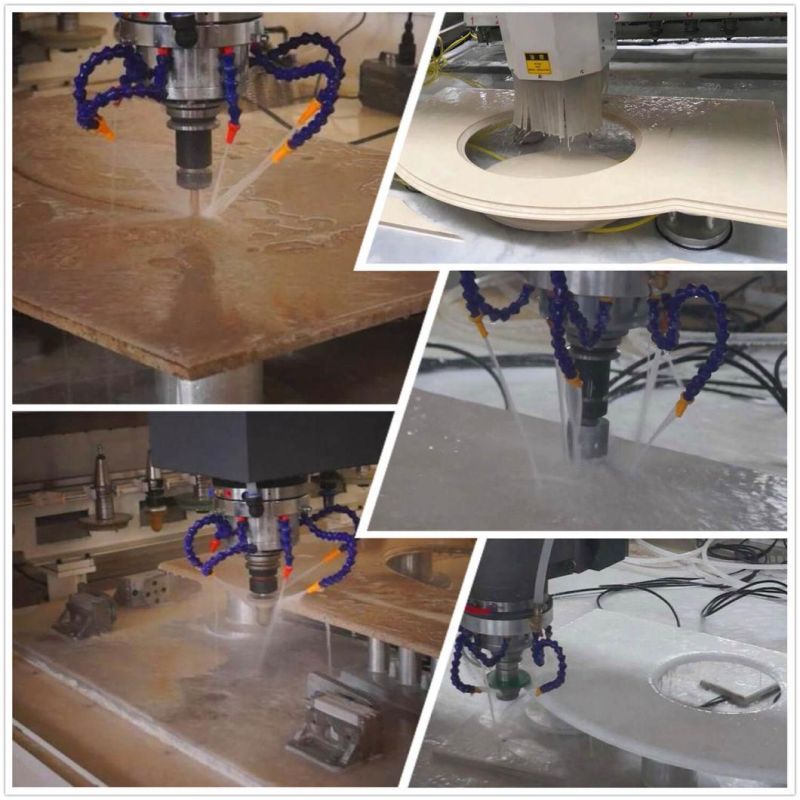

Samples:






Performance Features:
1.Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2.Famous brand big torque motor, low noise, large power, high efficiency.
3.Adopt imported square linear guide rail, high speed, high precision, long life.
4.Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
5.Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6.Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

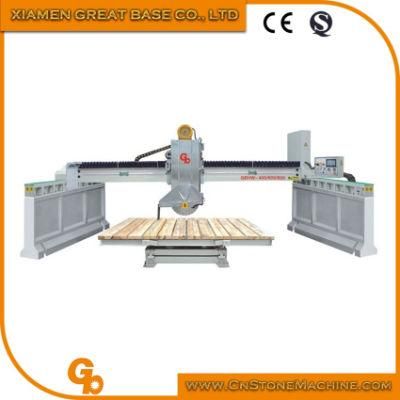

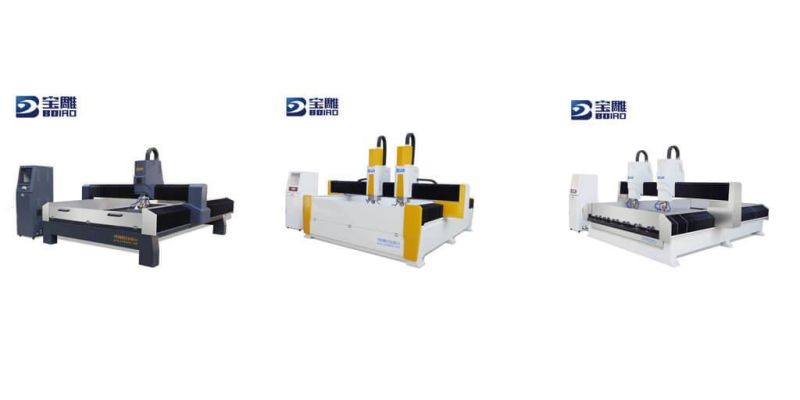

Similar products:
