• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

2018 new designed new jaw crusher for sale

new jaw crusher introduction:

new jaw crusher features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by ZENITH, basing on our 30 year's crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.
Application area: mining, building, railway, highway, metallurgy, chemistry
Processing stage: primary crushing
Crushing material: limestone, gypsum, talcum, calcite, bauxite, granite, slag, iron ore etc.
(<Moh's harness 8)
Crushing ratio: 4-6

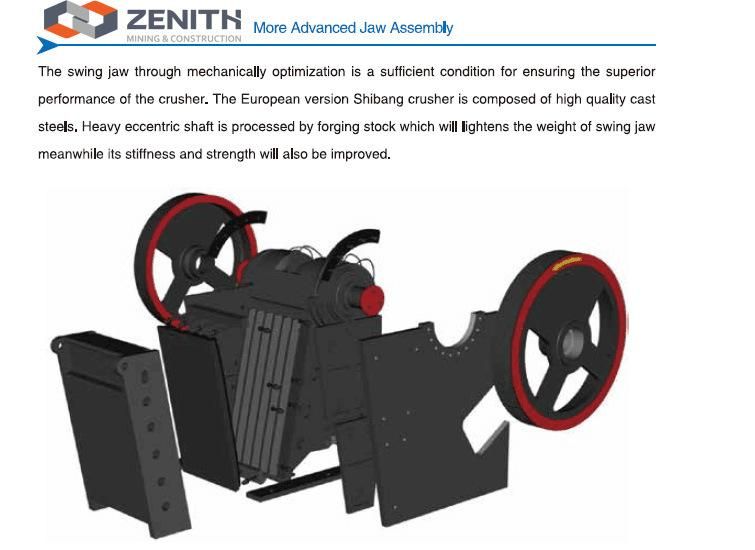

Main components: body frame, movable jaw, fixed jaw
Protection type: toggle plate Quickwear parts: high manganese steel




new jaw crusher main Features and Advantages:

1,Less noise and dust.
2,High crusher ratio, uniform particle size
3,Simple structure,safe work, low operating cost.
4,Safe lubrication system,easy parts replacement and equipment maintaining.
5,Deep crushing chamber with no dead zone, improves the feeding size which leads to a high capacity.
6,Equipment energy-saving:save 15%~30% energy, save system energy more than twice.
7,Wide range of discharge gate can meet the requirements of different customers.
8,Gasket discharge gate adjusting device makes it more convenient to use.Wide adjustable range improves the flexibility of the equipment.
new jaw crusher work principle:


The working principle of new jaw crusher is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, stone crusher machine price is easy to maintain and repair. These features promote its popularity to a great extant.

new jaw crusher technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
