• Model NO.：LMQ-2200
• Control：Automatic
• Certification：API, ISO, CE, SGS
• Main Motor：30
• Max PCS of Blade：1-3PCS
• PLC Brand：Panasonic
• Main Motor Brand：Siemens
• Working Table with Encoder：Optional
• Max. Cutting Size：3000*2000*1100
• Program：Computerized by Panasonic PLC
• Transport Package：Water-Proof Plastic Bubble Wrapping and Steel Wire
• Specification：7500*4000*5500mm
• Trademark：Wanlong
• Origin：Quanzhou City, China
• HS Code：8464101000
• Production Capacity：100sets Per Month

Basic Info.

Model NO. LMQ-2200 Control Automatic Certification API, ISO, CE, SGS Main Motor 30 Max PCS of Blade 1-3PCS PLC Brand Panasonic Main Motor Brand Siemens Working Table with Encoder Optional Max. Cutting Size 3000*2000*1100 Program Computerized by Panasonic PLC Transport Package Water-Proof Plastic Bubble Wrapping and Steel Wire Specification 7500*4000*5500mm Trademark Wanlong Origin Quanzhou City, China HS Code 8464101000 Production Capacity 100sets Per Month

Product Description

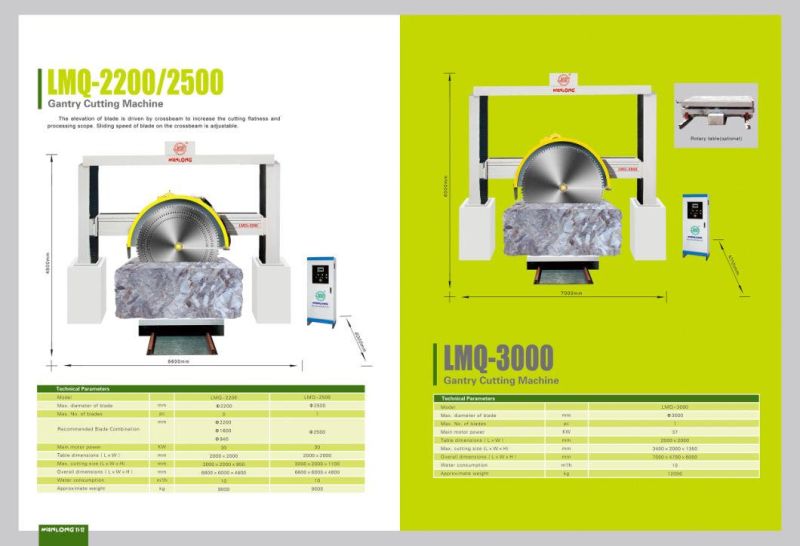

Gantry Cutting Machine (WL/LMQ-2200)

Technical parameters LMQ-2200
Max blade diameter: Mm ø 2200
Max cutting length:  3000
Max cutting width:  2000
Max cutting height:  1100
Main motor power: 30kw
Water consumption: 6M³ /h
Overall dismension:  6000*4700*6000mm
Approximate weight: Kg 9000

		LMQ-2200	LMQ-2500	LMQ-3000
Max. diameter of blade	mm	2200	2500	3000
Max. No. of blades	pc	3	1	1
Recommended Blade Combination	mm	2200 1600  940	2500	3000
Recommend saw blade thickness	mm	6.5	8	8.0
Main motor power	KW	30	30	37
Table dimensions ( L x W )	mm	2000*2000	2000*2000	2000*2000
Max. cutting size (L x W x H)	mm	3200*2000*950	3000*2000*1100	2500*2000*1350
Overall dimensions ( L x W x H )	mm	6600*600*4800	6600*6000*4800	7000*4700*6000
Water consumption	m3/h	6	6	6
Approximate weight	Kg	9000	9000	9000


Packaging & Shipping
DELIVERY TIME:

35-45days as per produciton schedule and quanity.
if your order is in our  stock, we can effect shipment once received your payment

PACKAGE:
Suitable for seaworthy container shipment

WARRANTY:
12 MONTHS

SHIPMENT WAY:
-by sea:  can be Less than Container Load and Full Container Load; freight is according to the shiping company  quoation to your seaport.
-you can consult us when you make inquiry.

Our Services
Service:
- fast deliver time: 7- 15 days.
  to rough idea: most of order lead time is 7 days-10days.
-consistent quality control:
 Raw material: have advanced device for diamond, powder ete inspection;
 Production: production procedure been strictly controlled by quality controlled department;
 Finshed product: All produced product has been inspetion and approved before shipment.
-any quality related problem that we are care and will solved for client.
