• Model NO.：Stone Hammer Crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Feeding Size：0-1200mm
• Applications Industry：Gravel Quarry, Mining, Coal Mining, Concrete Mixi
• Materials：0-1200mm
• Motor Power：75kw
• Transport Package：Transport Package
• Specification：100-3000t,h
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：100-3000t,H

Basic Info.

Model NO. Stone Hammer Crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Feeding Size 0-1200mm Applications Industry Gravel Quarry, Mining, Coal Mining, Concrete Mixi Materials 0-1200mm Motor Power 75kw Transport Package Transport Package Specification 100-3000t/h Trademark CHAENG Origin Henan Production Capacity 100-3000t/H

Product Description

Product Description

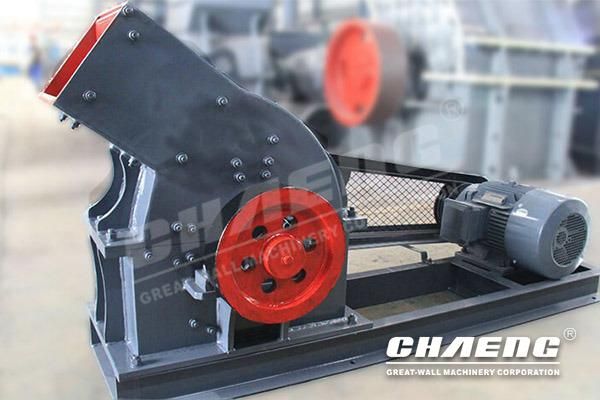

Hammer crusher can be used for dry and wet crushing, it is applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The compressive strength of materials should not be in excess of 150 Mpa. Hammer crusher is mainly used in industries such as mining, cement, building materials and highway industries, etc. Hammer crusher can crush materials with different sizes into equal particle, which favors the next procedure.


Advantages of hammer crusher

1. Large crushing ratio and large feeding amount.
2. Low operating cost, low production cost, and the remarkable power saving effect compared with the conventional three-stage breaking.
3. Adopt professional wear-resistant hammer with long service life, maintenance cost is low.
4. Simple structure and lightweight, easy operation and maintenance.
5. Single molding without secondary crushing

Working process of hammer crusher

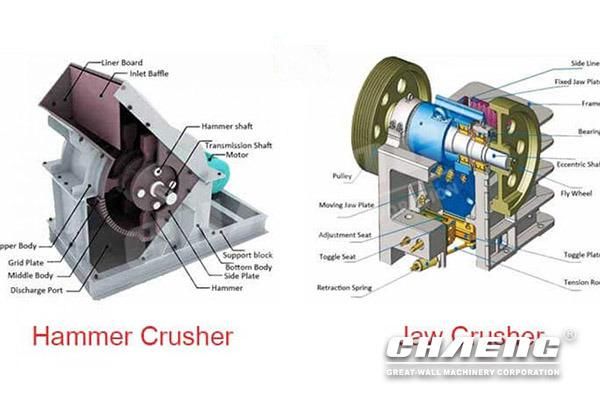

In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them; the crushed materials meeting the required size can be discharged by the outlet and become the final products; the bigger particles are brought back to the crushing area by the hammers for being re-crushed until they reach the required size.


 Specification of jaw crusher


Model	Rotator Specification Dia*L (mm)	Inlet Size W*L (mm)	Max. Feed Size (mm)	Power (Kw)	Output (t/h)	Overall Dimension L*W*H (mm)
CPZ1308	1310*790	800*850	≤500	132kw-4	100-160	2818*2100*2390
CPZ1512	1500*1160	1200*900	≤600	(160kw-4)*2	250-400	3220*2520*2800
CPZ1615	1675*1510	1480*1200	≤650	(220kw-4)*2	400-800	3665*2915*3440
CPZ1815	1776*1510	1480*1200	≤650	(220kw-4)*2	400-900	3822*2912*3436
CPZ1820	1800*1964	2000*1200	≤800	800KW-6	800-1500	3474*3822*3520
CPZ2125	2100*2486	2600*1690	≤1200	1250KW-6	2000-3000	5057*4565*4666

Our service

Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers' request and budget, our experts make efficient, reliable solutions. Following customers' order we produce strictly, what's more, before placing the order every customer has the chance to visit XinXiang Great Wall (Chaeng) working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.

After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers' plants. Necessary training about machine daily maintenance to local workers is provided also.

After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XinXiang Great Wall (Chaeng), they are now strategically located home and abroad, working for our customers.

CHAENG's Strength

1. Based on high-end and advanced equipment

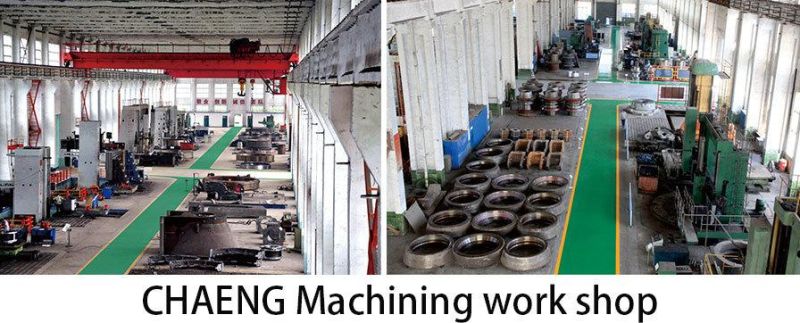

With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.

2. Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
