• Model NO.：CP90
• Usage：Ceramics, Cement Brick, Concrete Curb, Granite, Marble, Sandstone
• Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
• Source Voltage：380V
• Automation：Semi-automatic
• Cutting Ability：Medium Speed
• Control：Hydraulic and Electric
• Certification：ISO, CE
• Production：80m2-100m2 Per Day and Much More
• Voltage：AC, 380V, 50Hz or Depends on Your Request
• Weight：420kg-650kg
• Color：Gree, Yellow, Blue or Depends on Your Request
• Functions：Pressing (Stamping), Splitting and Cutting
• Stamping Size：30cm*30cm*5cm,30cm*30cm*8cm
• Max Splitting Height：2-5cm, 5-8cm
• Moulds：Various Designs or Customized
• Delivery Time：Within 20days After Receipt Payment T,T or LC
• Keyword：Stone Stamping Machine
• Optional Dies：Over 45 Shapes
• Transport Package：Wooden Cases or According to Your Requirements
• Specification：CE, SGS
• Trademark：BESTLINK
• Origin：Xiamen, Fujian, China
• HS Code：84791090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. CP90 Usage Ceramics, Cement Brick, Concrete Curb, Granite, Marble, Sandstone Application Machinery & Hardware, Construction, Mineral Industry, Stone Industry Source Voltage 380V Automation Semi-automatic Cutting Ability Medium Speed Control Hydraulic and Electric Certification ISO, CE Production 80m2-100m2 Per Day and Much More Voltage AC, 380V, 50Hz or Depends on Your Request Weight 420kg-650kg Color Gree, Yellow, Blue or Depends on Your Request Functions Pressing (Stamping), Splitting and Cutting Stamping Size 30cm*30cm*5cm/30cm*30cm*8cm Max Splitting Height 2-5cm, 5-8cm Moulds Various Designs or Customized Delivery Time Within 20days After Receipt Payment T/T or LC Keyword Stone Stamping Machine Optional Dies Over 45 Shapes Transport Package Wooden Cases or According to Your Requirements Specification CE, SGS Trademark BESTLINK Origin Xiamen, Fujian, China HS Code 84791090 Production Capacity 50 Sets/Month

Product Description

Waste Marble Slab Stone Recycling Machine for Park paving stone tile cutting

Feathers of stamping machine:
1. reuse your waste stone slabs and save your money.
2. changing the leftovers of slabs or tiles into different shapes with different moulds by hydraulic system inside.
3. output around 80m²~100m² per day. Certainly, if the operators have very good experience and skill, the yield will be much more.
4. very compact structure, and easily operated and maintained.
5. 2 types available with different stamping power. One is 40T, the other is 70T.
6. They can process different slab size, one is 30cm*30cm*5cm, the other is 30*30*8cm.

A. Application
With these machines, you can turn the waste quarry blocks and broken tiles into paving stones,
Mosaic stones, beautiful shaped tiles for decoration uses. The thickness could be to 50mm if you need. It has the advantages of high productivity effect, no need for technique and low cost. The outstanding cost performance and high efficiency of hydraulic stone pressing machine win the trust and reputation from our customers. It is very convenient to start and operation.
Electronically-controlled parts with a separate control cabinet, which is controlled by push-button station and button box. Welcome to visit our factory to check the quality.

B. Structure
(1)Our machine is constituted of the bed, rub rail, slide carriage, tooth on the top, bottom jaw and hydraulic system, etc.
(2)The bed is welded by the steel plate and integrally annealed after that.
(3)Hydraulic system is made up by the oil box, electric motor, oil pump and different valves. Oil box stores hydraulic liquid. The Hydraulic liquid should be filtered by the 10μ M nets. The top of the oil box can be dismantled for clean and the oil drain hole is at the bottom.

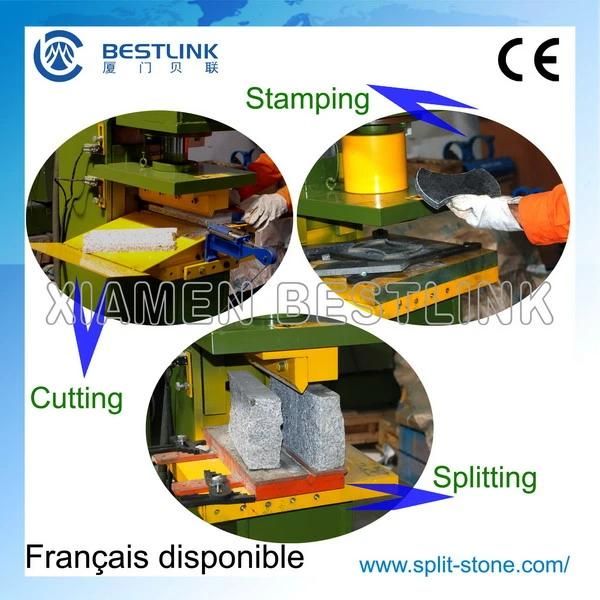

Note: Three functions for your choice: pressing (stamping), splitting and cutting

C: Technical Data:



Model	CP90-20T-B	CP90-40T-B	CP90 (40T Semi-automatic)
Hydraulic pressure	20Mpa	20Mpa	20Mpa
Splitting power	20T	40T	40T
Electric motor power	4kw	7.5kw	7.5kw
Max.slab stamping size	30cm ×30cm×5cm	30cm ×30cm×8cm	30cm ×30cm×8cm
Max splitting length	30cm	35cm
Max splitting height	2-5cm	5-8cm
Machine size	80*100*150cm	80*100*150cm	80*100*150cm
Weight	500kg	580kg	650kg
Functions	stamping, cutting, splitting	stamping, splitting, cutting	stamping
