• Model NO.：HLQY-3000
• Application：Machinery & Hardware, Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Stone Can Cut：Marble and Granite
• Drive：Lead Screw Drive
• Guide：Linear Guide Rail
• Main Motor Power：55(4p)Kw
• Gross Power：62.3kw
• Mx. Blade Diameter：2500mm
• Cutting Length：3500mm
• Cutting Width：2000mm
• Slab′s Thickness Can Cut：17,20,30mm,etc.
• X Axis Maximum Stroke：13m,MIM
• Transport Package：Plastic Film Packing
• Specification：7800x5000x4500mm
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641090
• Production Capacity：50PCS,Month
• Package size per unit product：780.00cm * 500.00cm * 450.00cm
• Gross weight per unit product：15500.000kg

Basic Info.

Model NO. HLQY-3000 Application Machinery & Hardware, Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control PLC Certification ISO, CE Stone Can Cut Marble and Granite Drive Lead Screw Drive Guide Linear Guide Rail Main Motor Power 55(4p)Kw Gross Power 62.3kw Mx. Blade Diameter 2500mm Cutting Length 3500mm Cutting Width 2000mm Slab′s Thickness Can Cut 17/20/30mm,etc. X Axis Maximum Stroke 13m/MIM Transport Package Plastic Film Packing Specification 7800x5000x4500mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641090 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 780.00cm * 500.00cm * 450.00cm Gross weight per unit product 15500.000kg

Product Description

HLQY-2500, High Efficiency Multi-blade Stone Cutting Machine

Four cylindrical gantry mutli-blade combination cutting machine adopts diamond tools and high-speed cutting technology, which is suitable for high-efficiently cutting a variety thickness of stone sheet (thickness such as 17mm,20mm,30mm etc).

1, Features:

--Automatic numberical control system, the efficiency increased 2 times.

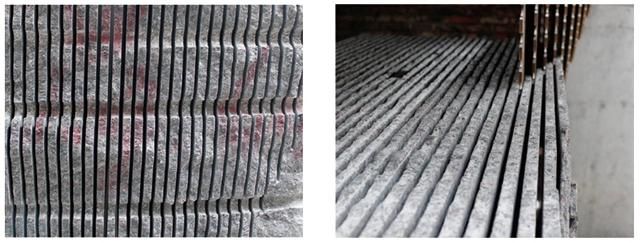

--Wafer cutting, improve resource utilization.

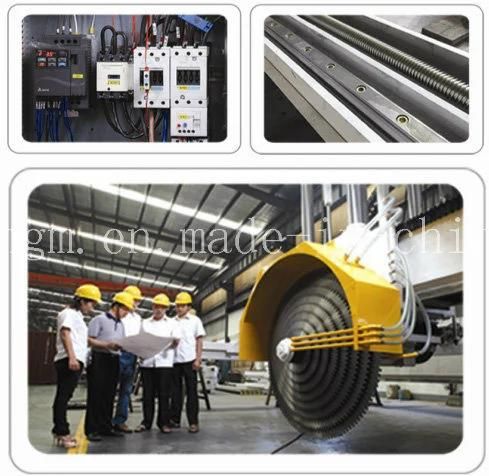

--Linear guide rail, high precision, long life, high-efficient cutting.

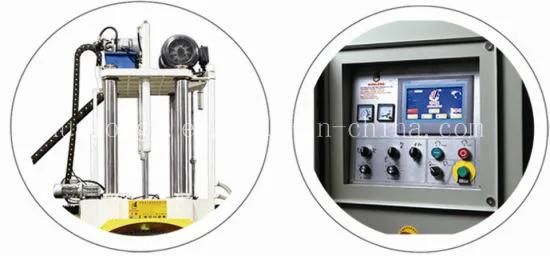

The Machine uses hydraulic lifting systerm and beautiful structure with waterproof, dustproof and anti-spill to improve the service life. Forward-backward slicing used high-precision driving, automatic slicing, main spare parts adopt imported good-quality materials; the block can be placed on the ground directly to enconomize the workbench and its maintenance costs. Thus the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy operating to suit granite and marble block with high value.

The machine can hang 1-8 piece of specification splate cutting, and can be used to art process and windows, stone composite cutting, and can save the cost of pallet.

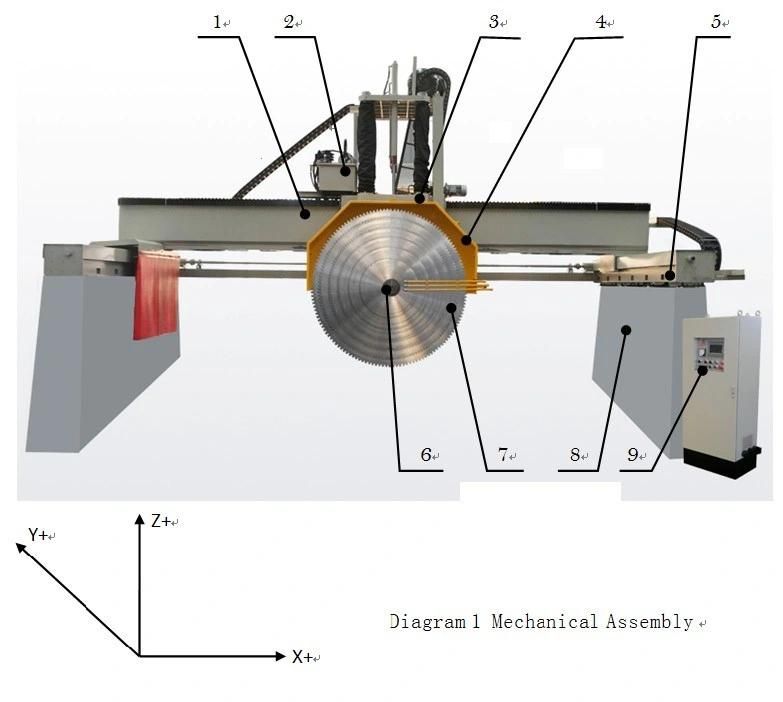

1,Beam Assembly 2,Hydraulic Station 3,Apron Components 4,Water Cover Assembly 5,Stringer Assembly 6,Spindle Box Components 7,BLade 8,Foudation Components 9, Control Panel.

3,Work Restrictions and Power Requirements
Material: granite, marble (Stone Mohs Hardness:2-7.5)
Maximum Moving Speed for Blade in the X-axis:  13m/min,Cutting speed is related to stone material and blade material.
Power Requirements: The power supply must be consistent with the requirements of this machine, Voltage380V,Frequency 50HZ and ensure that the voltage error ranges within±5%.

4,Safety Devices

The machine is equipped with the limit switch, which can control the front and back movement of the tool holder, and the left and right feeding movements to achieve the purpose of safe use.
