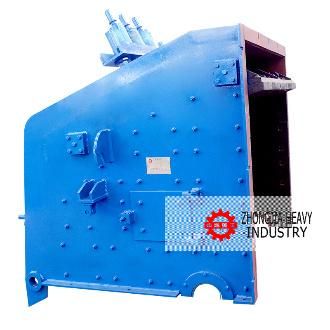

Mining Industrial Stone Crusher Machine Factory Supply
Zhengzhou Zhongjia Heavy Industry Co., Ltd.- After-sales Service：Installation Guide, Spare Part Supplying
- Warranty：12 Month After Installation
- Type：Impact Crusher
- Application：Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Impact
Base Info
- Model NO.：PF1010
- Compressive Strength (For Crushing)：250-300MPA
- Crushing Degree：Coarse Crusher
- Finished Surface：Outer Surface Process
- Certification：ISO
- Condition：New
- Color：Yellow
- Max Discharge Size：30mm
- Transport Package：Container
- Specification：PF1010
- Trademark：ZHONGJIA
- Origin：Henan China
- HS Code：8474209000
- Production Capacity：100 Set,Year
Description
Parameter
| Type | Specification (mm) | Max feed size (mm) | Capacity (t/h) | Motor Power (KW) | Weight (t) |
| PF-0504 | Φ500×400 | 100 | 4-8 | 7.5 | 1.6 |
| PF-0807 | Φ800×700 | 100 | 15-30 | 22 | 3.5 |
| PF-1007 | Φ1000×700 | 200 | 30-50 | 37 | 8.5 |
| PF-1010 | Φ1000×1050 | 250 | 50-80 | 55 | 12.1 |
| PF-1108 | Φ1100×850 | 300 | 60-100 | 110 | 13.5 |
| PF-1210 | Φ1250×1000 | 350 | 80-135 | 110 | 14 |
| PF-1214 | Φ1250×1400 | 450 | 130-180 | 132 | 18.6 |
| PF-1315 | Φ1320×1500 | 600 | 160-250 | 160 | 19 |
| MFD-20 | Φ750×500 | 200 | 8-20 | 30 | 1.9 |
| MFD-50 | Φ750×700 | 200 | 10-20 | 75 | 2.6 |
| MFD-100 | Φ1000×700 | 200 | 15-30 | 130 | 5.4 |
| MFD-120 | Φ1250×1000 | 200 | 80-110 | 240 | 7.2 |
Operating Principle

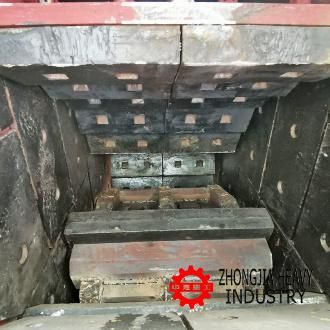

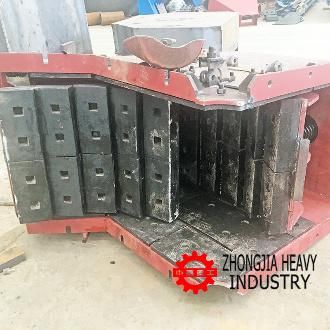

Material is fed in Impact Crusher from the periphery through a hopper into the grinding chamber to minimize air pressure, greatly reducing dust problems. For some material suitable ventilation is recommended by introducing air on the discharge side of the crusher, this will prevent a dusty atmosphere at the inlet of Impact Crusher. The swinging hammers in Impact Crushers crush the materials along the stationery liners before discharging through a perforated screen at the bottom; replaceable bar type screen is available for specific application. Combination of hammer style, liner plates and sieve inserts offer almost unlimited possibilities to cater user needs from an Impact Crusher.
Applications of Impact Crusher
Impact Crushers are used for crushing or shredding of diverse materials such as: Limestone, Glass, Coal and Lignite, Clay, Sand, Phosphate, Rock, Fertilizer, Aluminum Oxide, Slag, Coke, Silica, Bauxite, Dolomite, Grain, etc.

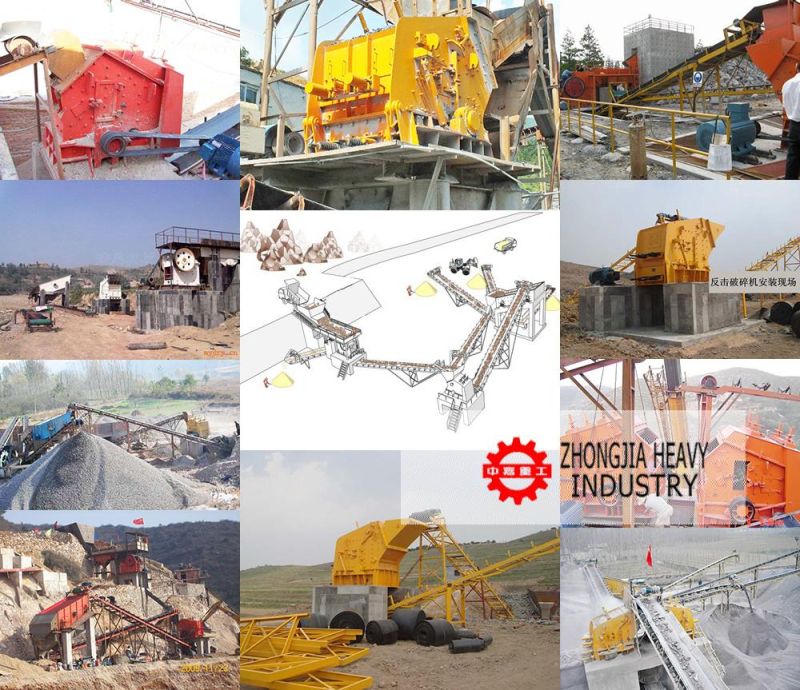

Service and customers
With the tenet of "Quality First, Customers First", our company specially invites experts from design colleges and universities for technical cooperation, and can provide users with project design, ore identification, small test, and One-stop service including testing, equipment selection, process design, equipment site installation and commissioning. It has provided high-quality equipment for large domestic large-scale concentrators, metal magnesium plants, steel plants and other large-scale projects, is trusted and praised by users serving Panzhihua Iron and Steel, Kunshan Iron and Steel, China Aluminum Group, Three Gorges Water Conservancy and other national key construction projects and thousands of private enterprises.
