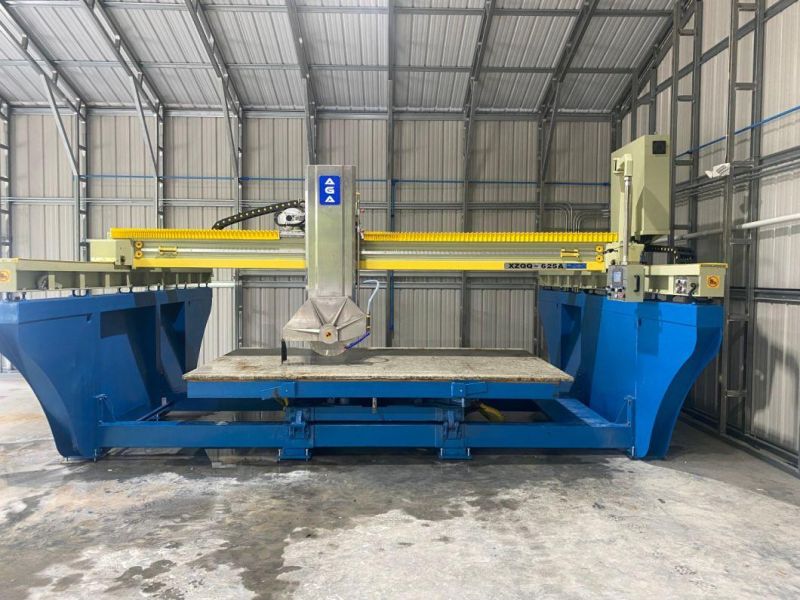

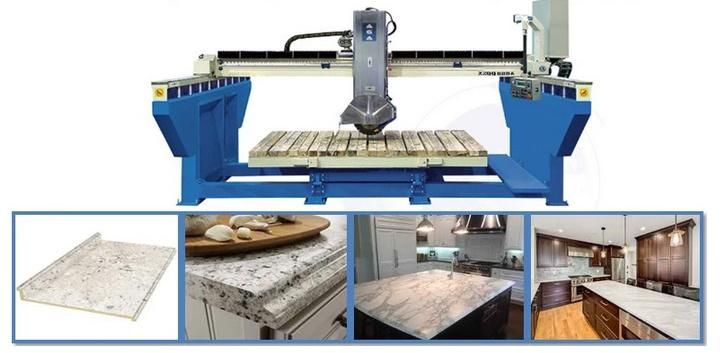

Strong and Precise Diamond Stone Blade Bridge Saw Mono-Block Machine with Automatic Rotating Table (XZQQ625A)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：XZQQ625A
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Max. Cut Size (Lxw)：3200X2000 mm
- Max. Cut Thick：170 mm
- Table Tilting：0-85°
- Table Rotation：0-360°
- Blade Tilting：0-45°
- Max. Blade Size：625mm
- Power of Spindle Motor：15kw
- Weight：7200kg
- Transport Package：Plastic Packing
- Specification：Dimention: 6x5x3 m
- Trademark：AGA
- Origin：Xiamen, Fujian, China
- HS Code：84641010
- Production Capacity：100sets,Month
Description
Advantages
- Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

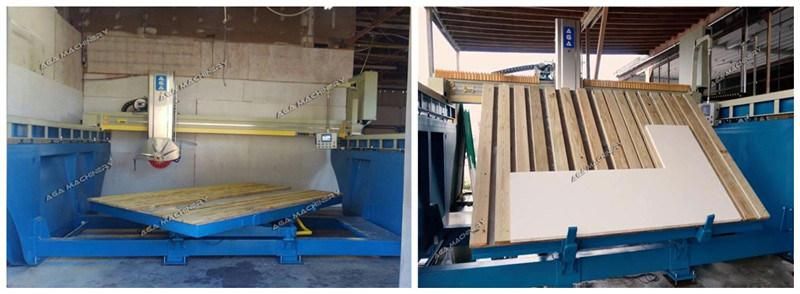

- Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.
- This mono block bridge saw machine is computer control and with color Display Touch Screen.
- It is able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation.
- Wireless remote provides ease control of the saw.
- Laser guide and sensors give precision cuts every time.
- Automatic water control saving every drop.
- Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.
- Main structures are made of very strong cast iron for stable running and stainless steel for protection.
- All functions are operated on the control panel that make it very user friendly.
- Operating Language in English and Input Sizes unit in Inch or mm.
Spesification:
| Blade size | 400-625mm 16"-25" |
| Cut length | 3200mm 126" |
| Cut width | 2000mm 78" |
| Cut thick | 170mm 7" |
| Blade tilt | 0 - 45° |
| Table rotate | 0 - 360° |
| Table tilt | 0 - 85° |
| Spindle motor | 15kw 20HP |
| Size (L×W×H) | 6×5×3 m |
| Weight | 7200kg 16000lbs |
Features and Benifits:
1) Monoblock frame
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.
2) Blade&Table

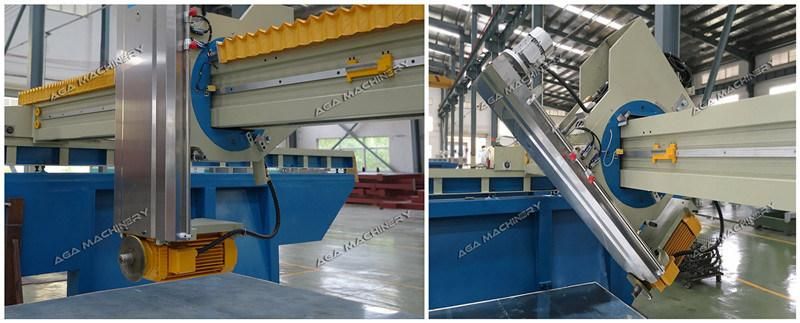

- Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.
- Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

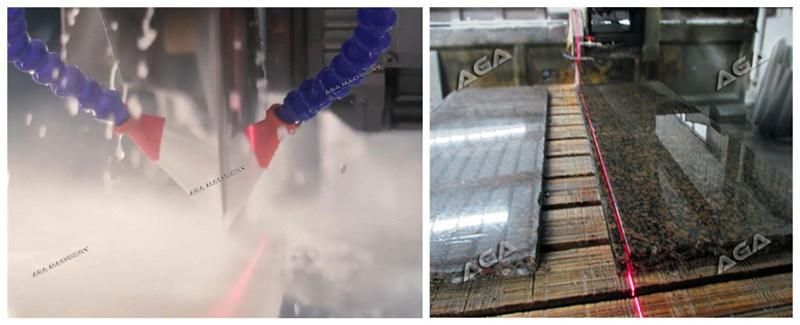

3) Laser guide cutting
The laser guide and sensors gives high accuracy for the machining tolerance.

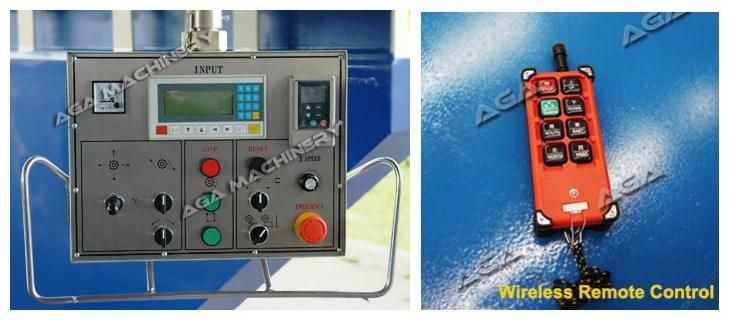

4) Control appliance
-Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.
- Wireless remote provides ease control of the saw.
5)Applicable stone range
Granite , Marble, Sandstone, Limestone, Quartz and so on.
6)Functions
1. Cutting slabs intor various sizes of tiles/cut-size;
2. Processing slabs,tiles,kerbstone,pavingstone, kitchen counter-tops, vanity-tops, monument,fireplaces, shower surrounds, stair, windowsill ... ect.

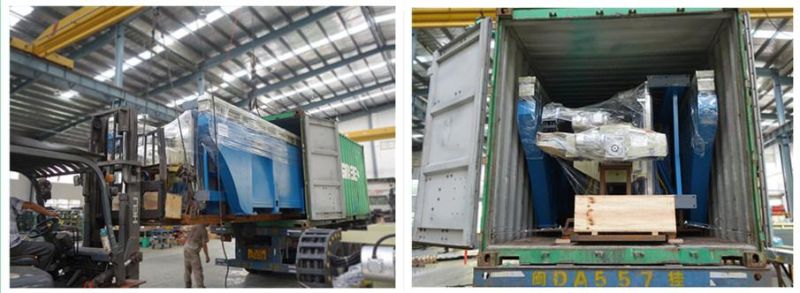

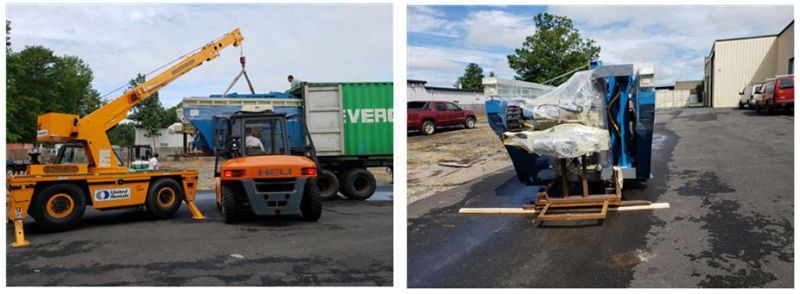

Packing
Keywords: Stone Bridge Saw, Stone Cutter, Stone Cutting Machine, Diamond Bridge Saw, Metal Bridge Saw, Granite Cutter, Marble CutterAbout us:

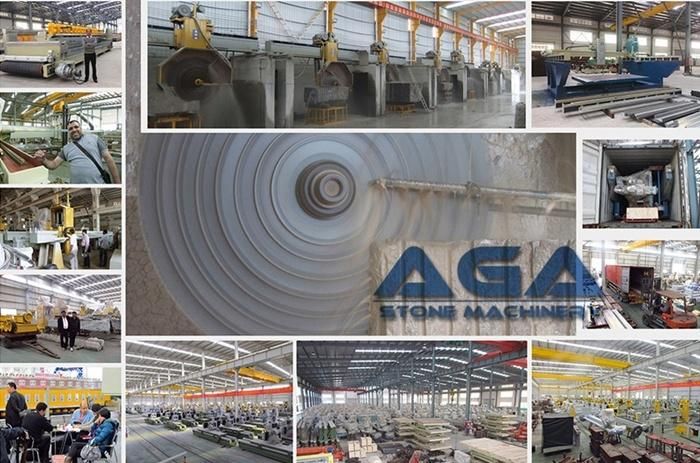

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.
