• Model NO.：ELE6090
• Certification：CE, ISO, SGS BV TUV
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Spindle：3kw CS Water Cooling Spindle, 24000rpm
• Motor and Drive：500W Leadshine Easy Servo Motors and Driver
• Inverter：3.7kw Fuling Inverter
• Structure：Heavy Duty Body, 10-15mm Industrial Class Square
• Calibration：Manual Tool Sensor Calibration
• Control System：Mach3 Controller Support 4 Axis
• Software：Artcam
• Table Surface：T-Slot Working Table with PVC Protection
• Command Language：G Code
• Computer Interface：USB
• Voltage：220V, 1phase, 50-60Hz
• Linear Rails：Taiwan Linear Rails 20mm
• Limit Switch：Japan Omron Limit Switch
• Rotary Device：80mm Diameter Rotary Device, Length Within 900mm
• Transport Package：Standard Export Wooden Box
• Specification：600*900*160mm
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

DescriptionParameterModelELECNC-6090Effective Working area600*900*160mmSpindle

3kw CS water cooling spindle, 24000RPM

Motor and drive

500W Leadshine easy servo motors and leadshine drivers

Inverter

3.7kw Fuling inverter

StructureHeavy duty body, 10-15mm industrial class square tube strong structureCalibration

Manual tool sensor calibration

Control system

Mach3 controller support 4 axis

SoftwareArtcamTable surface

T-slot working table with PVC protection

Command LanguageG CodeComputer interfaceUsbVoltage

220V, 1phase, 50-60HZ

Linear rails

Taiwan Linear rails 20mm

Limit switch

Japan OMRON limit switch

Rotary device

80mm diameter rotary device, length within 900mm

PS:All the working area and specifications can be customized according to your requests.

Sample & Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

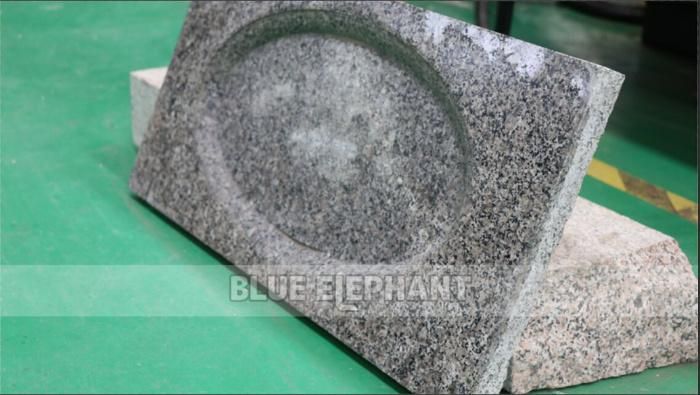

3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

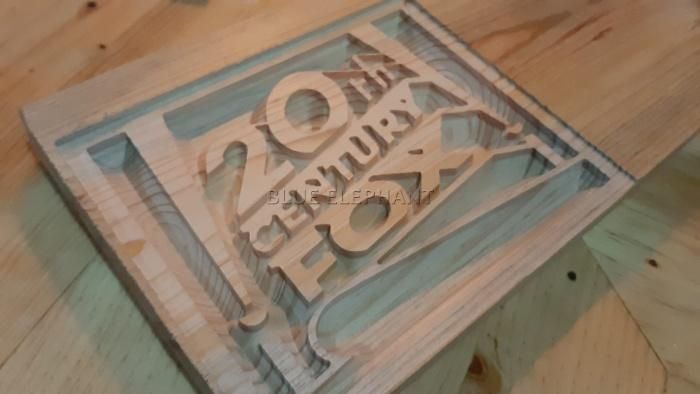

4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.





Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions




After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.






Packaging & Delivery

Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.

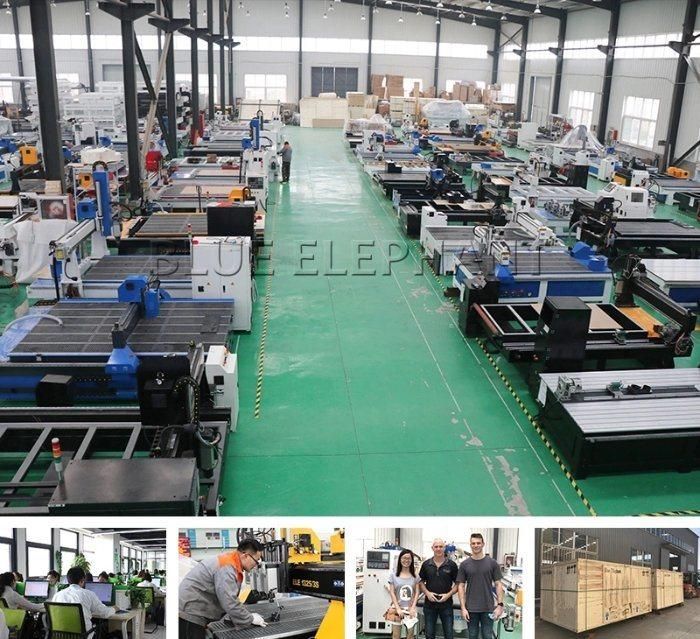

Company Introduction

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
