Stone Processing Machinery

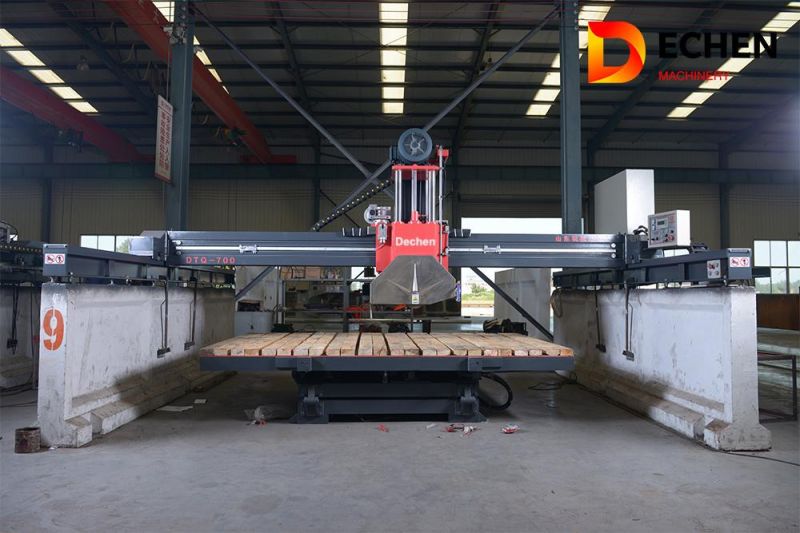

Waterjet Stone Granite Water Jet Cutting Machine

Laizhou Dechen Machinery Co., Ltd.
  • After-sales Service:Online After-Sales
  • Warranty:1 Year
  • Type:CNC Cutting Machine
  • Usage:Jadestone, Concrete Curb, Granite, Marble, Stone
  • Application:Machinery & Hardware, Construction
  • Source Voltage:380V

Base Info

  • Model NO.:DTQ-450,600,700,800
  • Automation:Automatic
  • Cutting Ability:High Speed
  • Control:PLC
  • Certification:CE
  • Product Name:Stone Bridge Saw Cutter Cutting Machine
  • Cutting Materials:Marble Granite Tile Quartz Sandstone Natural Rock
  • Control Model:PLC CNC Precision Infrared Laser Processing
  • Slab Size:3200X2000mm
  • Blade Diameter:450 600 700 800 1000 1200 mm
  • Max.Titling Degree for Work-Bench:85
  • Rotating Degree Range for Work-Bench:0-90,0-360
  • Locating Degree for Work-Bench:0-45-90
  • Color:According to Your Requirement
  • Blade Quantity:1
  • Transport Package:20 Gp
  • Specification:DTQ-450,600,700,800,1000,1200
  • Trademark:DECHEN
  • Origin:China
  • HS Code:8464109000
  • Production Capacity:288 PCS,Year

Description

Technical parameters

Model

DTQ-450

DTQ-600

DTQ-700

DTQ-800

Max. cutting size

3200*2000*100mm

3200*2000*175mm

3200*2000*225mm

3200*2000*275mm

Diameter of blade

Φ400-Φ450mm

Φ400-Φ600mm

Φ400-Φ700mm

Φ400-Φ800mm

Size of worktable

3200*2000mm

3200*2000mm

3200*2000mm

3200*2000mm

Vertical turning angle of worktable

0-85°

0-85°

0-85°

0-85°

Rotation angle of worktable

0-90/0-360°

0-90/0-360°

0-90/0-360°

0-90/0-360°

Main motor power

15KW

18.5KW

18.5KW

18.5KW

Water consumption

3.5m³ /h

3.5m³ /h

3.5m³ /h

3.5m³ /h

Overall dimension

6000*4800*2600mm

6000*4800*2800mm

6000*4800*3150mm

6000*4800*3300mm

Total weight

8674KG

    9161KG

      10151KG

        10650KG



Waterjet Stone Granite Water Jet Cutting Machine

Waterjet Stone Granite Water Jet Cutting MachineWaterjet Stone Granite Water Jet Cutting MachineStone Machine Feature:

1.    The bridge type infrared stone cutter is operated by computer so that it work automatically.

     2.    The parts and accessories of which are made of high quality steel.
