• Model NO.：PFW
• Crushing Style：Impact
• Compressive Strength (For Crushing)：Various Accoring to Different Models
• Crushing Degree：Intermediate Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：SGS
• Trademark：Zenith
• Origin：Shanghai, China
• HS Code：8474209000
• Production Capacity：20-500tph

Basic Info.

Model NO. PFW Crushing Style Impact Compressive Strength (For Crushing) Various Accoring to Different Models Crushing Degree Intermediate Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification SGS Trademark Zenith Origin Shanghai, China HS Code 8474209000 Production Capacity 20-500tph

Product Description

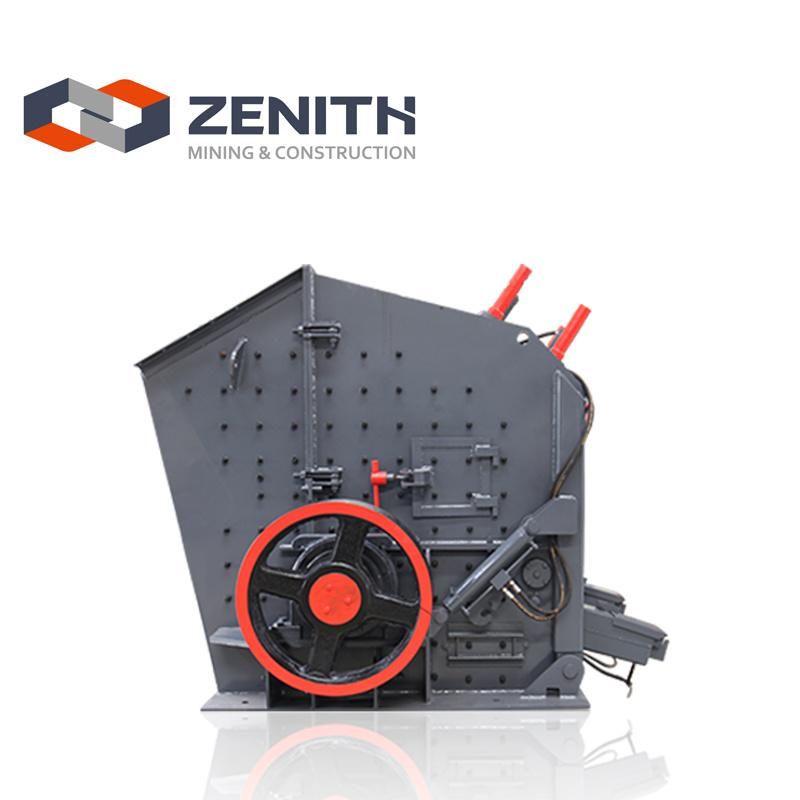

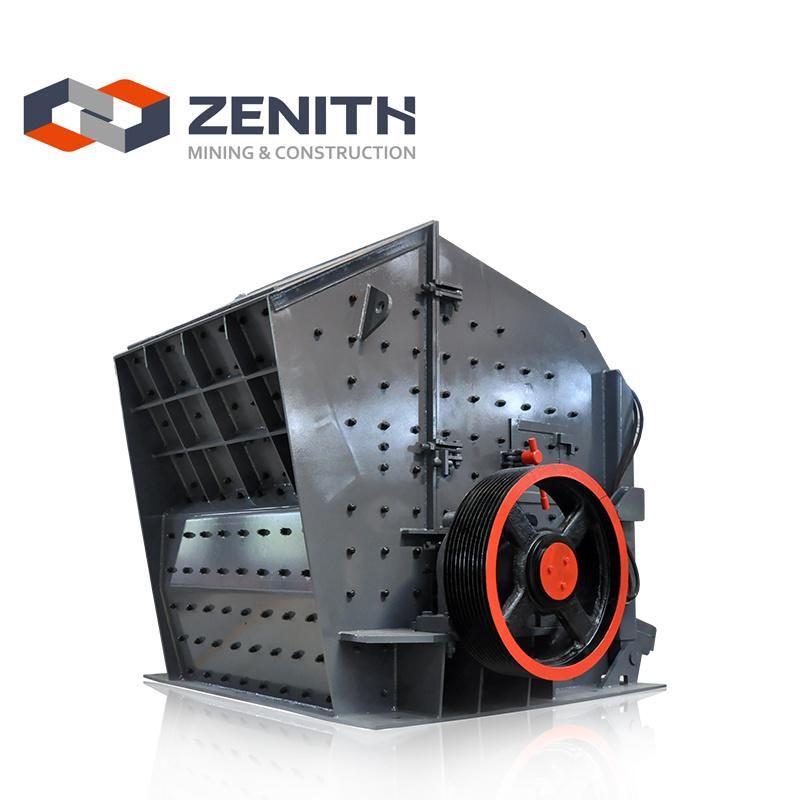

pf1314 impact stone crusher introduction:

Base on the plentiful experience of producing and marketing of limestone impact crusher , Zenith R&D institution designed the PFW series impact crusher. It is the newest style impact crusher and has been widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on


pf1314 impact stone crusher features :

    1.Advanced Manufacture process and high-end fabrication material
    2.Heavy rotor design and tight test method improve the rotor performance.
    3.Overall type cast steel structure bearing base improves anti load resistance capacity.
    4. Hydraulic jacking device and hydraulic regulated discharging port is helpful to save labor and time.


 pf1314 impact stone crusher working principle :

When pf1314 impact stone crusher works, materials are crushed by the high-speed impact of the blow bar after they enter the cavity, they will be fed into the impact plates for secondary crushing, then the materials will be shot back to the blow bar again for the third crushing. Repeat this movement until the materials are crushed to the required particle size and finally will discharged from discharging port. The size and shape of the finished material can be changed by adjusting the gap between the impact rack and rotor support.

pf1314 impact stone crusher  technical data:

Two-curtain cavity hydraulic impact crusher

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214II	1150×1400	1100×1430	500	130-200	4-132	Y315M-4/132	2400×2310×2550
PFW1315II	1300×1500	1200×1530	600	180-320	4-160	Y315L1-4/160	2700×2570×2800
PFW1318II	1300×1800	1200×1830	700	240-400	4-200	Y315L2-4/200	2700×2870×2800
PFW1415II	1400×1500	1450×1530	800	240-450	4-200	Y315L2-4/200	3000×2700×3070

Three-curtain cavity hydraulic impact crusher

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
