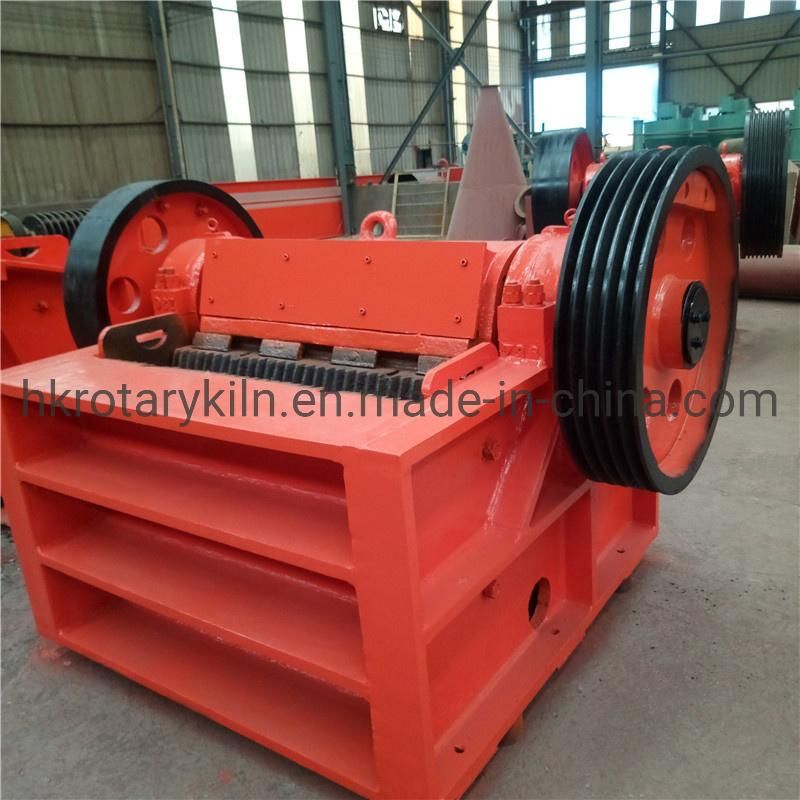

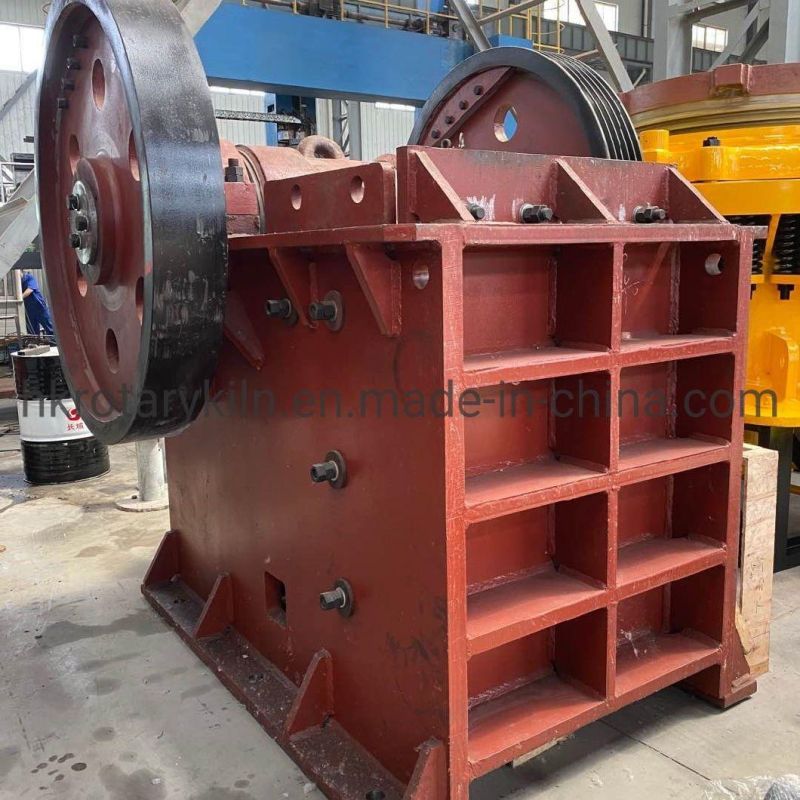

PE Jaw Crusher for Stone
Henan Hongke Heavy Machinery Co., Ltd.- After-sales Service:Life Long Time
- Warranty:Life Long Time
- Type:Jaw Crusher
- Application:Machinery & Hardware, Construction
- Drive:Electric
- Crushing Style:Grinding & Impact
Base Info
- Model NO.:600*800
- Compressive Strength (For Crushing):250-300MPA
- Crushing Degree:Fine Grinding Machine
- Finished Surface:Gear Process
- Certification:CE, ISO
- Condition:New
- Color:Red
- Size:250*400
- Capacity:10-20t,H
- Transport Package:as Your Customer Requirement
- Specification:400*600
- Trademark:HK
- Origin:China
- Production Capacity:10-20ton Per Hour
Description
Basic Info.
Model NO. 600*800 Compressive Strength (For Crushing) 250-300MPA Crushing Degree Fine Grinding Machine Finished Surface Gear Process Certification CE, ISO Condition New Color Red Size 250*400 Capacity 10-20t/H Transport Package as Your Customer Requirement Specification 400*600 Trademark HK Origin China Production Capacity 10-20ton Per HourProduct Description
PE Jaw Crusher For Stone1. Application of Jaw Crusher
Jaw Crusher is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower.
The angle between the fixed jaw and movable jaw becomes smaller.
The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
2. Working Principle of Jaw Crusher
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;
The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;
When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger;
the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring;
and then the crushed materials are discharged from the lower outlet of the crushing cavity
3.Technical of PE Jaw Crusher
Model | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
PE600×900 | 480 | 65-160 | 60-130 | 75 | 2290×2206×2370 | 16.5 |
PE750×1060 | 630 | 80-140 | 80-180 | 110 | 2620×2302×3110 | 29 |
PE900×1200 | 750 | 95-165 | 140-260 | 110 | 3789×2826×3025 | 54.5 |
PEX250×750 | 210 | 25-60 | 10-40 | 22 | 1667×1545×1020 | 5 |
PEX250×1000 | 210 | 25-60 | 15-50 | 30 | 1550×1964×1380 | 6.5 |
PEX250×1200 | 210 | 25-60 | 20-60 | 37 | 1560×2104×1415 | 7.7 |
