Middle Size Bridge Cutting Machine

Fujian Wanlong Diamond Tool Co., Ltd.
  • Type：Manual Polishing Machine
  • Control：Manual
  • Automation：Manual
  • Precision：Precision
  • Application：Ceramics, Cement Brick, Concrete Curb, Granite, Marble
  • Type for Grinding Machine：Special Grinding Machine

Base Info

  • Model NO.：QZQ-1600
  • Grinding Machine Type：Vibration Polishing Machine
  • Grinding Method：Wet Grind
  • Certification：ISO, CE
  • Condition：New
  • Main Motor Power：15kw
  • Max Cutting Size：3000*1200*450
  • Cutting Table Rotation：0-90degree
  • Blade Diameter：900-1200
  • Transport Package：1set Machine in One 20 Gp Container
  • Specification：5000*2200*2400mm
  • Trademark：wanlong
  • Origin：Fujian Quanzhou
  • HS Code：8464101000
  • Production Capacity：180sets,Month

Description

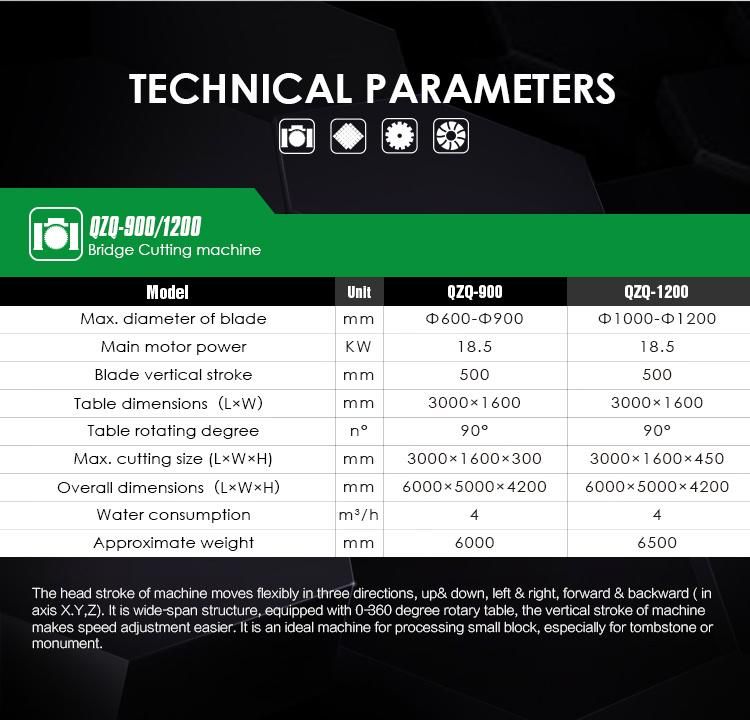

lTechnical ParameterBlade diameter (mm) 9001200Vertical stroke of blade (mm) Φ600-900 Φ1000-12000Max. cutting dimension (LxWxH/mm) 3000X1600X3003000X1600X450Worktable rotation 0-360° 0-360°Main motor power (kw) 18.518.5Power requirement 3 Phs 380V 50Hz, other is available 3 Phs 380V 50Hz, other is availableWater consumption (cbm/h) 44Worktable dimension (mm) 3000X2000 3000X2000Overall dimension (mm) 6000X5000X4200 6000X5000X4200Approx. Weight (kg) 60006500


Middle Size Bridge Cutting Machine
Middle Size Bridge Cutting Machine
Middle Size Bridge Cutting Machine



Professional Team

23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.

Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling.
Middle Size Bridge Cutting Machine


Following products are supplied:

1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.

2. Dry cutting & turbo saw blade.

3. Diamond wire and beads for granite & marble.

4. Polishing abrasive.

5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.

6. Bridge Cutting Machine & Auto Polishing Machine, etc.

 1).QSQ-2200/2500 Bridge Multiblade Block Cutter

 2). QZQ-900/1200 Bridge Cutting Machine

 3).PLC-400/600 Laser Bridge Cutting Machine

 4).MS-2600/3000 Polishing Machine

 5).SY-S80 Hydraulic Pressing Machine, etc.

Middle Size Bridge Cutting Machine

If any product meet your demand, please contact us for further information.


If any request, just feel free to contact us, we will keep providing quality products and excellent sevice for you.
