• Model NO.：HLCNC-3319
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*1900
• Touch Screen：Siemens
• Gearing：Rack Gear
• Transport Package：Polypropylene Plastics Packing
• Specification：6300(L)*3600(W)*3100(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month
• Package size per unit product：6300.00cm * 3600.00cm * 3100.00cm
• Gross weight per unit product：5000.000kg

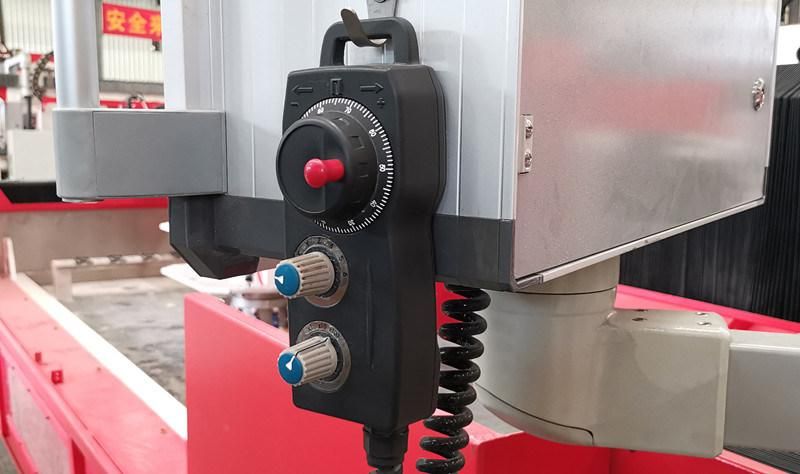

Hand-Wheel
wired to the control console, to duplicate the axis management, controlling the movement speed and position directly. It allows the
operator to be close to the piece to be machined thus controlling directly some delicately.



Machine Parts

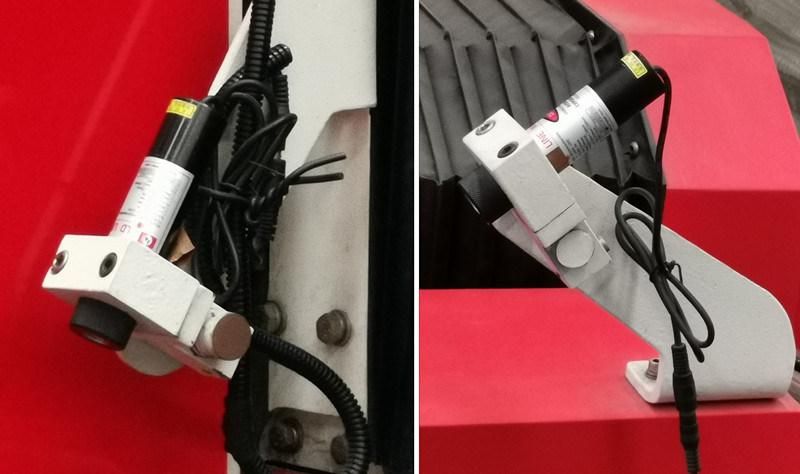

Name: Laser reticule apparatus
Original: China
Used to aid for accurate alignment in processing.

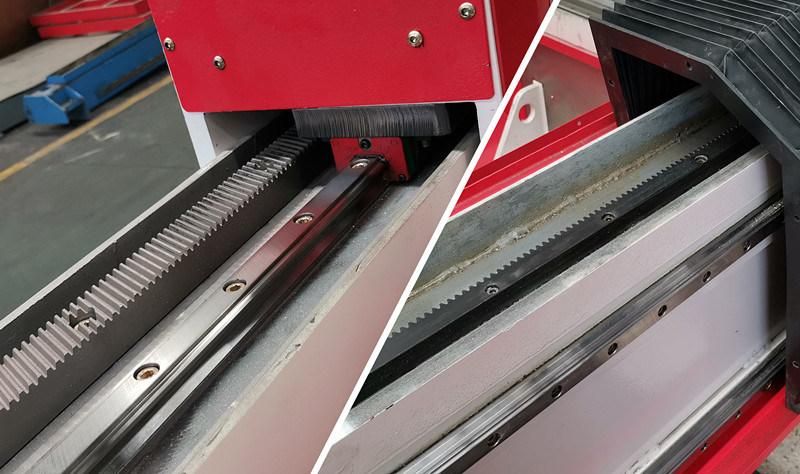

Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous product, top quality use on crossbeam and carling for good performance.

Application

Model NumberHLCNC-3015HLCNC-3319HLCNC-3520Stroke (X-axis)mm304035003870Stroke (Y-axis)mm154019502080Stroke (Z-axis)mm320320320Power of motorkw7.57.57.5Rotating speedrpm0-80000-80000-8000Tool holder modelBT404040Tool-store positionnr122020Workbench dimensionmm3000x15003300x19003500x2000Gross Weightkg400050005500Demension (L x W x H)cm 553x320x230
