• Model NO.：HPY300
• Crushing Degree：Intermediate Crusher
• Finished Surface：Outer Surface Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Yellow
• Motor Power：400kw
• Max. Feed Size：250mm
• Output Size：8-51mm
• Capacity：135-770t,H
• Installation：Engineer Guide
• Transport Package：Wooden Box Packing and Nude Packing
• Specification：34t
• Trademark：ATAIRAC
• Origin：China
• HS Code：847420900
• Production Capacity：30 Sets,Month

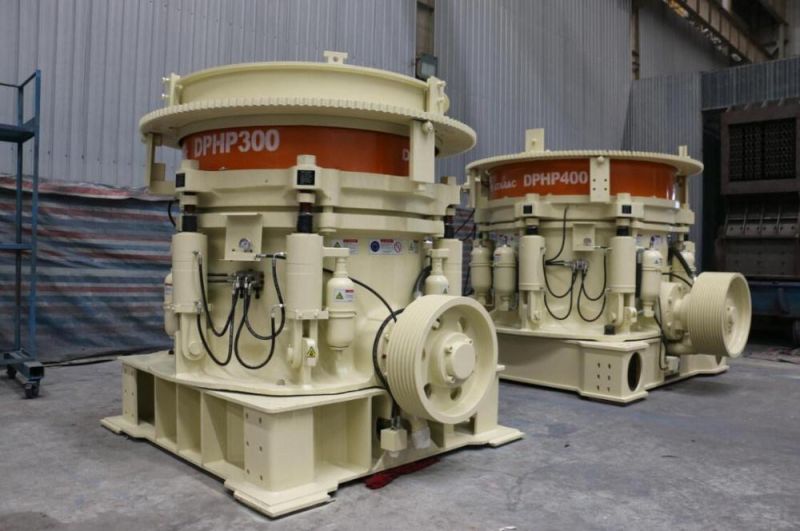

Overview Product Features

(1) Large eccentricity, high swing frequency and lamination crushing ensure higher productivity, bigger crushing ratio, and better end-products shape.
(2) Fixed main shaft design enhances its intensity and obtain larger crushing force.
(3) Advanced hydraulic protection device realizes the effective protection and monitoring for the main machine.
(4) Special designed sealing system ensures the clean of lubrication system.
(5) Higher automation, hydraulic chamber clearing can be realized by press a button.
(6) Easy maintenance, most parts can be assembled and disassembled on the upper and lateral side.
(7) Special adjustment method of blow liner ensures the stable crushing chamber, higher utilization ratio, longer service life, and uniform output size.
(8) Good seal performance, less powder spread, low noise, stable running, convenient operation and maintenance.

Technical Parameters

ModelInstallation Power    (kw)6mm8mm10mm13mm16mm19mm22mm25mm32mm38mm45mm51mmHPY30022075-95100-130110-140145-180170-215190-230220-260225-275245-320300-375345-430 HPY400315 105-140135-170180-225215-275250-320275-345285-365315-425350-480400-540455-615HPY500400 135-170170-220225-290270-245310-400340-425360-450400-530425-585500-670560-770HPY800630  240-335315-420375-500420-540465-590490-725545-790585-920670-990765-1100Packing and DeliveryThe hydraulic stone cone crusher should be processed to be rustproof and moisture proof before delivery.The small parts are packed into wooden crates;The big parts are wrapped by plastic sheeting.Company Overview

https://atairac.en.made-in-china.com/company-ATAIRAC-ENGINEERED-PRODUCTS-INC-CHINA-.html

ATAIRAC History & Scale
Established Time:In 1958
Production Base:Around 300,000 square meters
Employees No.Around 1000

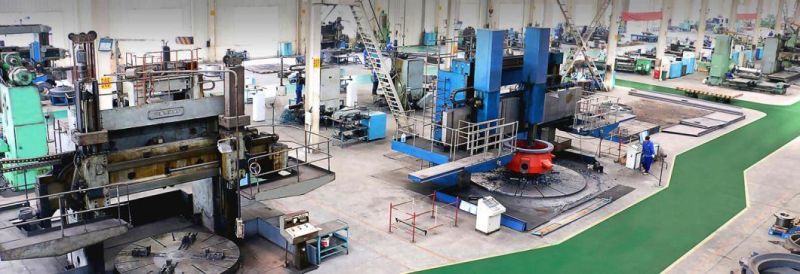

Machinery & Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates:ISO, CE,BV,TUV,GOST

R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery

ATAIRAC Crushing Solution

3000TPH downward stationary crushing&screen production line
800TPH downward mobile crushing&screen plant
300-2000 thousand tons per year steel slag recycling production line
Construction waste recycling production line


FAQ
1.How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.

2.How long is the gurantee period of your HPY hydraulic cone crusher?
We guarantee quality of the machines  (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidence.

3.What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run;The buyer should prepare the materials and tools needed, and offer necessary assistance.The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buyer.
