• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

new type Fine mineral crushing machine for Hard Stones

mineral crushing machine introduction:

mineral crushing machine is easy to install, operate and maintain. As per feedback, our experts will make continuous improvements on our products to meet customers' changing needs. Every feature of basalt stone crushing machine has been carefully designed to provide superior quality and performance. It is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc. Zentih has competive jaw crusher price for you.


mineral crushing machine Advantages:

1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types


mineral crushing machine work principle:

The working principle of mineral crushing machine is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, basalt stone crushing machine is easy to maintain and repair. These features promote its popularity to a great extant.


mineral crushing machine application

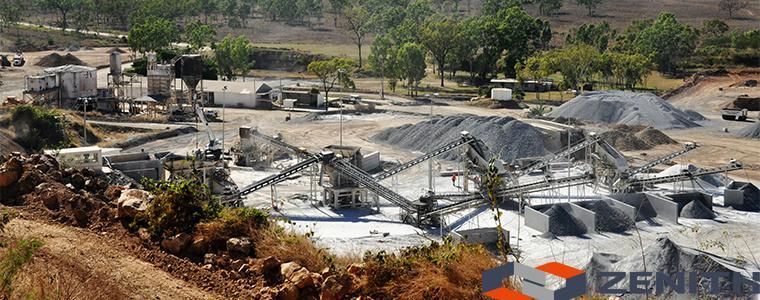

1.widely applied in mining, road&railway, concrete, chemical and building material industries.
2.Ores and rocks with various hardness
3.Concrete basis and steel structure basis
4.Stationary, half-mobile and mobile applications



mineral crushing machine technical data:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
