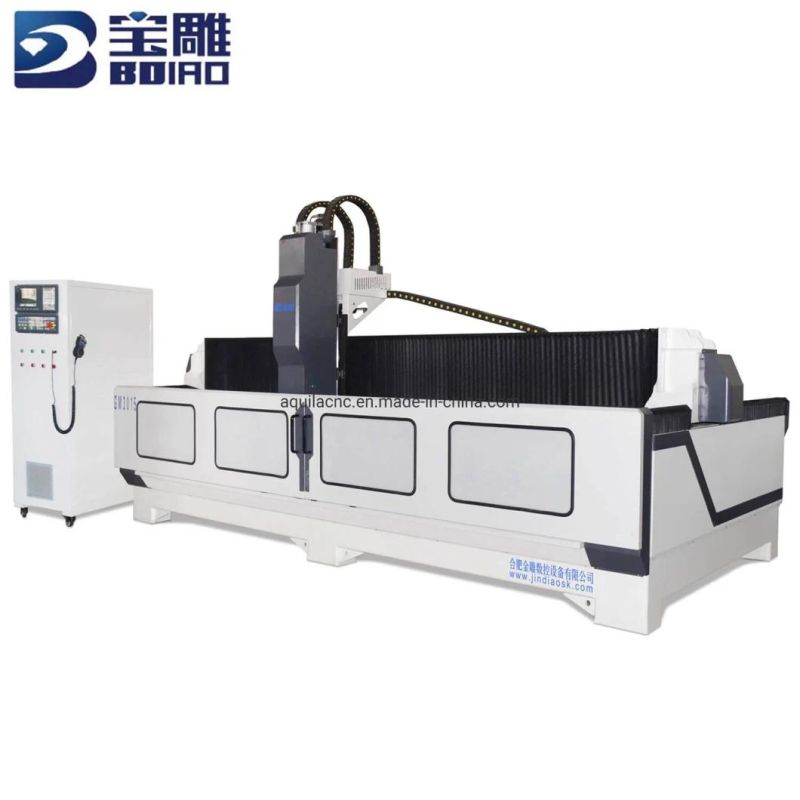

Good Durable GM2513 Stone CNC Router Machine Center
Hefei Aquila CNC Equipment Co., Ltd.- Function:Hollow out, Cutting, Line Engraving, Basso-relievo
- Application Material:Marble
- Automation:Automatic
- Control:CNC
- Motor Power:High Power
- Engraving Head Speed Adjustability:Wide Adjustable Range
Base Info
- Model NO.:GM2513
- Certification:CE, ISO
- Current:AC
- Application:Decoration, Advertising, Art & Craft, Stone Industry
- Customized:Customized
- Configuration:7.5kw Mechanical Spindle
- Drive Motor:Yaskawa Servo Motor
- Tool Shank Diameter:Bt40
- Linear Tool Change:8~20PCS
- Transport Package:Wrapped in Layers of Wrapping Film and Ponchos
- Specification:3000KG
- Trademark:Boiro
- Origin:China
- HS Code:8464909000
- Production Capacity:300 Sets,Month
Description
Basic Info.
Model NO. GM2513 Certification CE, ISO Current AC Application Decoration, Advertising, Art & Craft, Stone Industry Customized Customized Configuration 7.5kw Mechanical Spindle Drive Motor Yaskawa Servo Motor Tool Shank Diameter Bt40 Linear Tool Change 8~20PCS Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Boiro Origin China HS Code 8464909000 Production Capacity 300 Sets/MonthProduct Description
Good Durable GM2513 Stone CNC Router Machine CenterKeywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:
Good Durable GM2513 Stone CNC Router Machine Center is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:
The functions of this machine include cutting,drilling,sanding,chamfering and so on.
Applicable Materials:
Artificial stone,quartz stone,marble,granite and other special shaped stone.
Application Scope:
Suitable for artificial stone, quartz stone, granite, marble countertops and wash basins, tea tray carvings, European style edging, and other special shaped stone, ceramic, glass and microcrystalline stone. Cutting, drilling, shaping, polishing, all in one machine.
Parameters:
Model | Good Durable GM2513 Stone CNC Router Machine Center |
Workiing Area | 2500*1300*600mm |
Machine Size | 4600mm*3000mm*2600mm |
Transmission | X/Y axis helical rack & pinion, Z axis ball screw |
Way of Fixing Workpiece | Suction cup |
Drive Motor | Yaskawa servo motor |
Linear Tool Change | 8~20pcs |
Tool Shank Diameter | BT40 |
Spindle Speed | 0-12000r/min |
Working Voltage | AC380/3PH/50HZ |
Control System | Syntec/ NC Studio |
Net Weight | 3000KG |
Accessories:
Performance Features:
1. ATC system: linear-type ATC system makes the whole process from the holing, cutting , shaping, polishing finished at one go, fully realize high automation.
2. Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
3. Famous brand big torque motor, low noise, large power, high efficiency.
4. Adopt imported square linear guide rail, high speed, high precision, long life.
5. Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
6. Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
7. The software: for UncGraphics.NX3.0, Mastercam9.0 and other software, set the CAD / CAM as a whole, through digital analysis, design, the product was processed to support procedural pre / igs / scep / dxf / dwp and other documents.
Samples:
