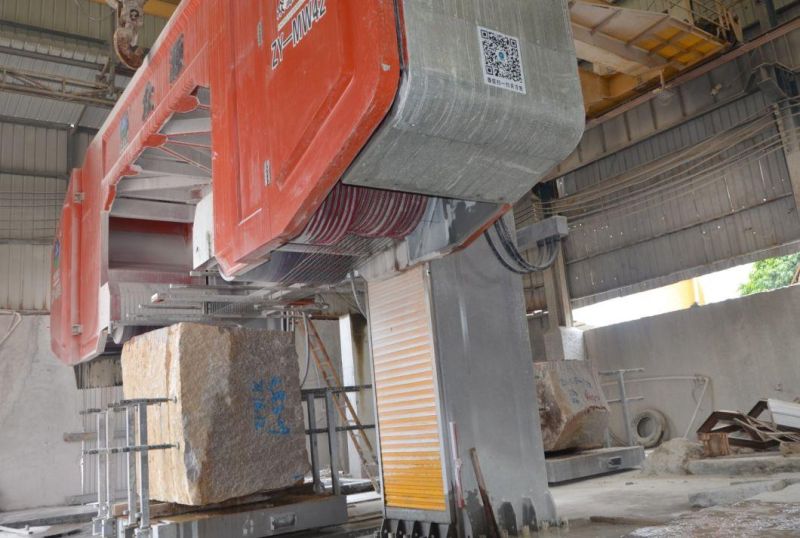

Multi Wire Diamond Saw Machine, Cutting Granite and Marble

Fujian Ningde Aqt Imp. & Exp. Co. Ltd
  • After-sales Service：7 Days 24 Hours
  • Warranty：1 Year
  • Type：Hydraulic Cutting Machine
  • Usage：Granite, Marble
  • Application：Machinery & Hardware, Mineral Industry, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：ZY-MW72
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：Artificial
  • Certification：ISO, CE
  • Multi-Wire Line：72
  • Wire Saw Length：24.1meters
  • Transport Package：Wooden Box Packing
  • Specification：11000X5900mm
  • Trademark：Stonewine
  • Origin：China
  • HS Code：8464109000
  • Production Capacity：100units,Year

Description

ZY-MW SERIES MULTI-WIRE SAW MACHINETECHNICAL DATAZY-MW 72MAX.CUTTING LENGTH3200mmMAX.CUTTING HEIGHT2200mmSLABS STANDARD THICKNESS20/30mmMAX.CUTTING SLAB QUANTITY71DIAMOND BEADS DIAMETER6.4/7.3mmDIAMOND WIRE LENGTH23700mmMAX.INDIVIDUAL WIRE TENSION200/250KGWIRE SAW SPEED0-35m/sMAIN MOTOR POWER280KWCOOLING WATER2300L/minMACHINE LENGTH11800mmMACHINE HEIGHT5900mmNET WEIGHT65T
