• Model NO.：SH-XE04-05
• Performance：Tilting or,and Rotation
• Transport Package：Plywood Case
• Trademark：SHENGHENG
• Origin：China
• HS Code：842890
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. SH-XE04-05 Performance Tilting or/and Rotation Transport Package Plywood Case Trademark SHENGHENG Origin China HS Code 842890 Production Capacity 500 Sets/Year

Product Description

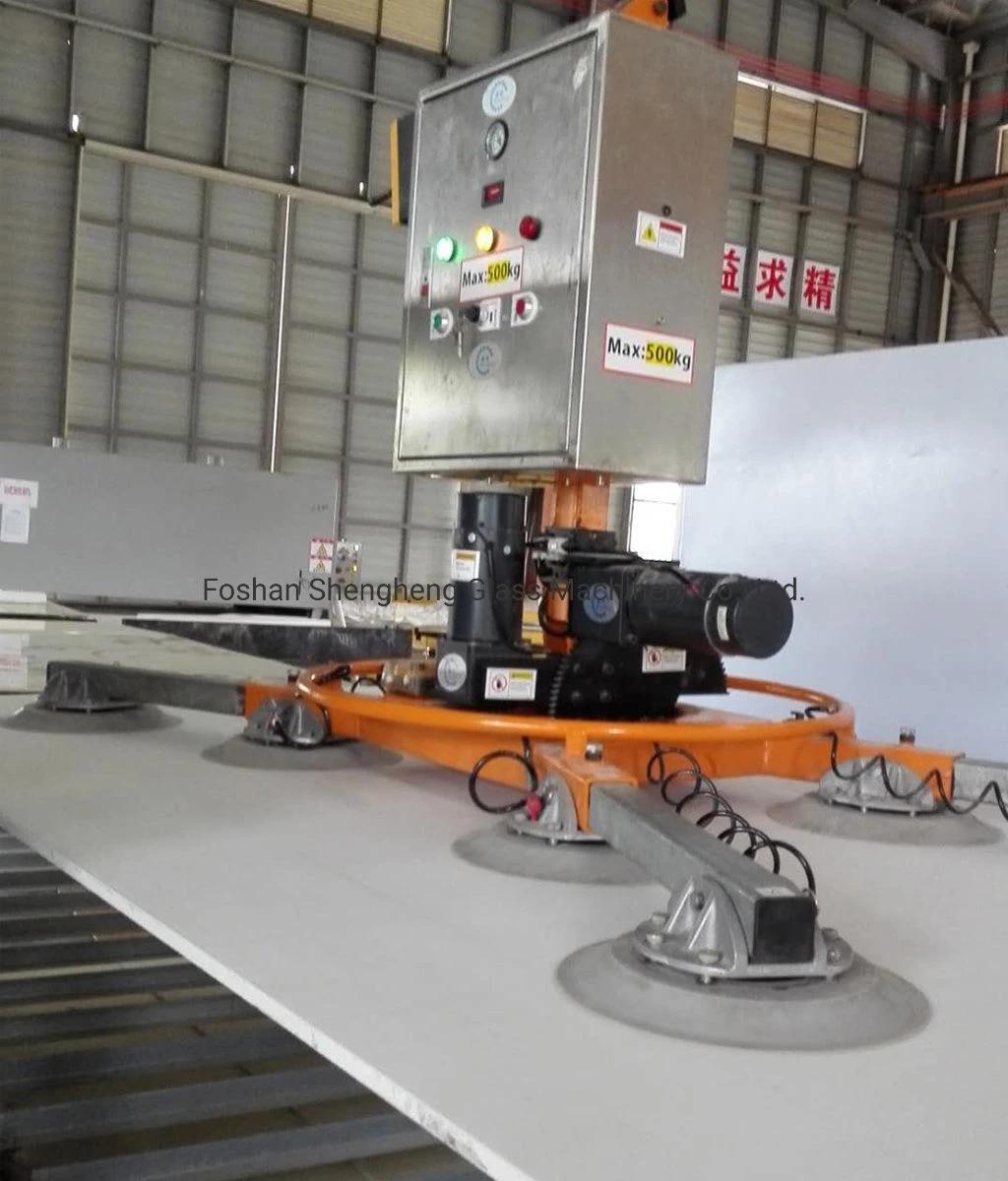

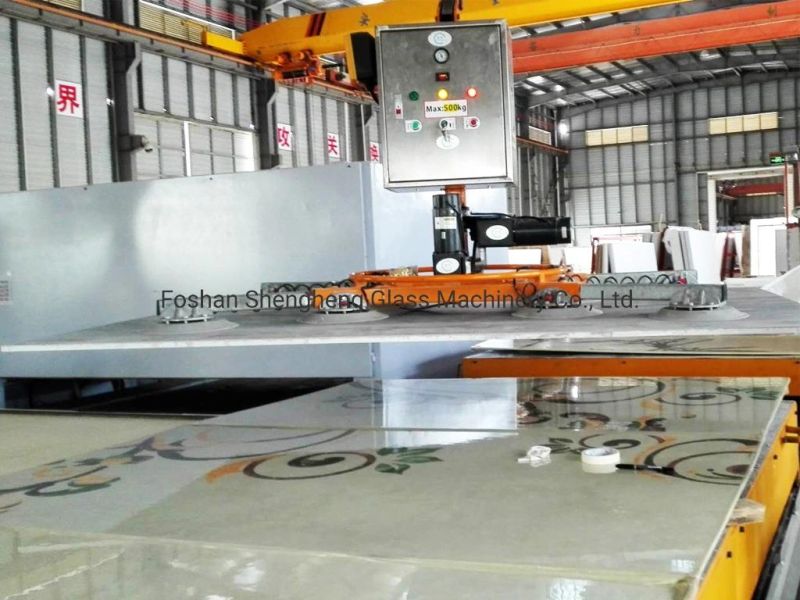

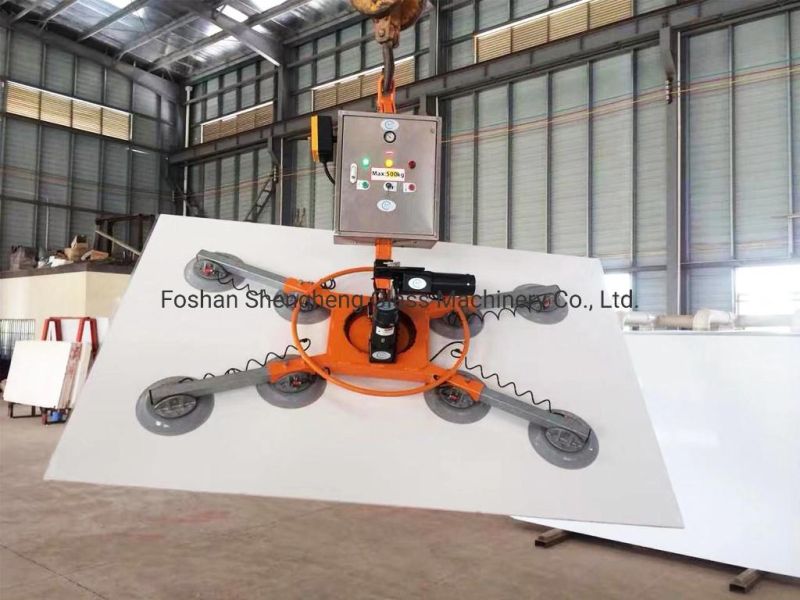

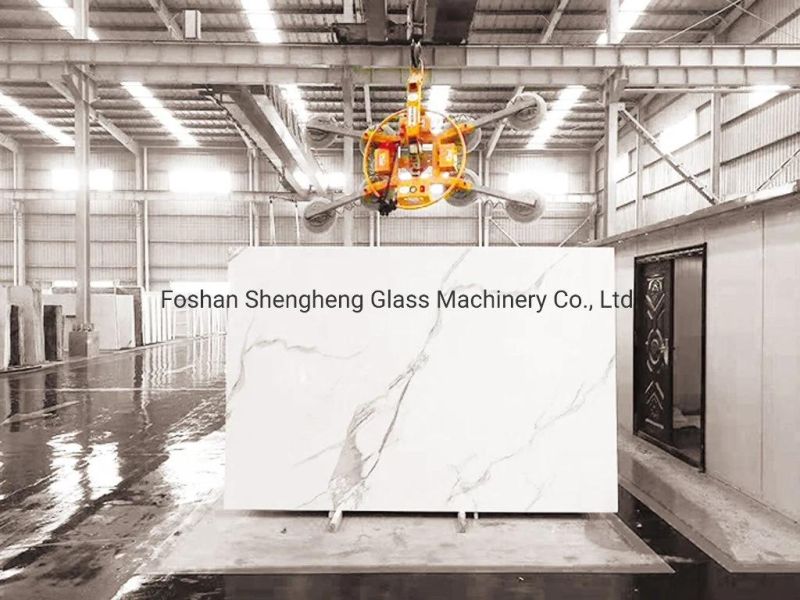

DC-powered vacuum lifters are designed to use vacuum to support the loads, hanging under the hoist equipment for moving and transporting. As with powered or manual movements, it can handle and lift the various kinds of stone slabs and ceramic tiles to the specified positions.

Not only for handling and transporting slabs and tiles in the production and processing, but also they can help to stack and pack slabs and tiles actively and orderly.




Features

1. DC power as main energy source provided
2. Executions of tilt and/or rotation movements are effected motorized or manually.

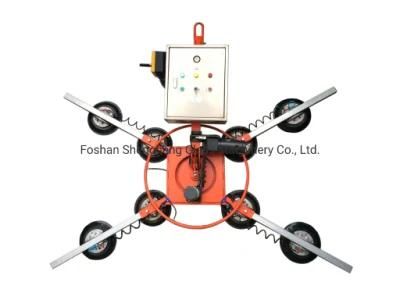

3. X-shape structure with extension arms is provided to match up with different dimension and weight of the loads.
4. Energy saving system assures of the enough working time.
5. Vacuum compensation function automatically sensors and restarts pump in low vacuum.
6. Lifting equipment solutions are provided mounted or attached on the forklift.

Technical Data

ITEM	DATA
Stone Type	Marble, granite, quartz, limestone, artificial slabs and porcelain tiles
Load Capacity	500 kg
Vacuum Pad	8 pcs, 250mm diameter, silicone material, with adjustable spring mounted base
Max. Slab Size	Suggested up to 4800 x 1600 mm
Hoist Device	Chain hoist, wire-rope hoist or forklift (required)
Hoist Movement	Crane hook 360°manually or fork motions
Suction Frame	X-shaped with/without telescopic extensions
Suction Frame Movements	Rotating 360°, manually / electrically Tilting 0-90°, manually / electrically
Vacuum System	Single vacuum circuit or dual vacuum circuits with non-return valve
Power Supply	D.C power 12V / 24V battery
Option	Acoustic & optical alarm Radio remote control Dual power Vacuum reservoir Telescopic extensions / beams Crane hook Attachment for forklift or cranes
