High Efficiency Hydraulic Cone Crusher Price (GPY200)
ATAIRAC ENGINEERED PRODUCTS INC(CHINA)- Type：Cone Crusher
- Application：Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Grinding & Impact
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Intermediate Crusher
Base Info
- Model NO.：GPY200(GP200)
- Finished Surface：Outer Surface Process
- Certification：CE, ISO, GOST
- Condition：New
- Color：Yellow
- Motor Power：160kw
- Max. Feed Size：210mm
- Output Size：10-30mm
- Capacity：85-215tph
- Transport Package：Wooden Box Packing and Nude Packing
- Specification：2310*2160*2190mm
- Trademark：ATAIRAC
- Origin：China
- HS Code：847420900
- Production Capacity：20 Sets, Month
Description
Product Features

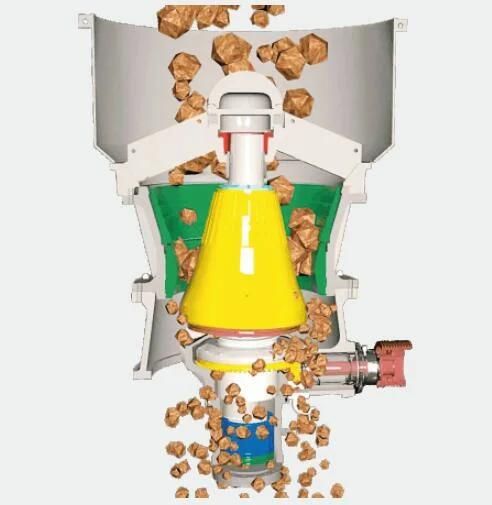

(1)The crushing chamber is designed as curve and combines the theory of laminating crushing, which features in high capacity, less platy grain content, because the material in chamber is squeezing each other and is crushed according to its texture.
(2)Compared with spur gear, the transmission gear possesses bigger torque and better transmission performance.
(3)The alloy casting frame is super robust and durable, besides, the lower frame is specially enhanced.
(4)The high-strength forging main shaft is super robust and durable, which is suitable of crushing hard rocks, at the same time, it is light in weight.
(5)The modular design of lubrication system and hydraulic system work separately, so the breakdown probability is reduced.
(6)The positive pressure anti- dust system ensures the clean of lubrication system. No extra grease seal and labor maintenance needed during operation.
(7)LC intelligent operating system makes the over-load protection, iron enter protection and plate wearing auto compensation high automated. Besides it can remotely monitor the oil temperature, flow, pressure and other parameters.
(8)Special designed mantle and bowl liner with high utilization ratio, which greatly reduce the wearing parts stock expenses.
(9)Most parts can be assembled and disassembled on the upper and lateral sides, which makes the machine maintenance labor-save and time-save.

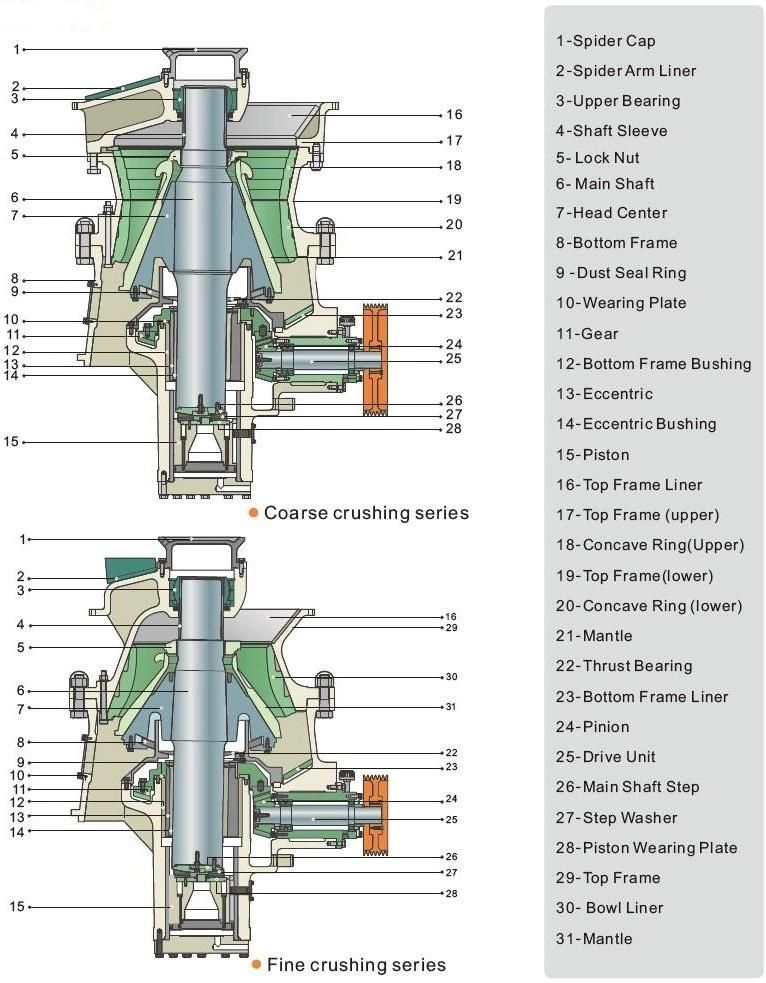

Structure

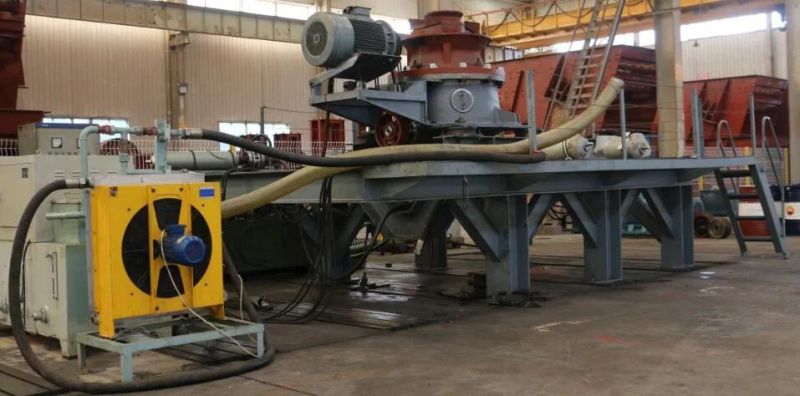

Test Running
Before delivery, we do trail running on the crusher, the technicians will check the vibration, noise, heating and other conditions of the crusher. Unqualified products could not be delivered to the customers.

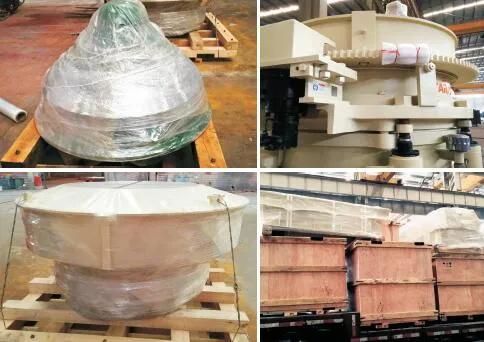

Package and Delivery
The hydraulic stone cone crusher should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Company Overview
ATAIRAC History&Scale
Established Time:In 1958
Production Base:Around 300,000 square meters
Employees No.Around 1000

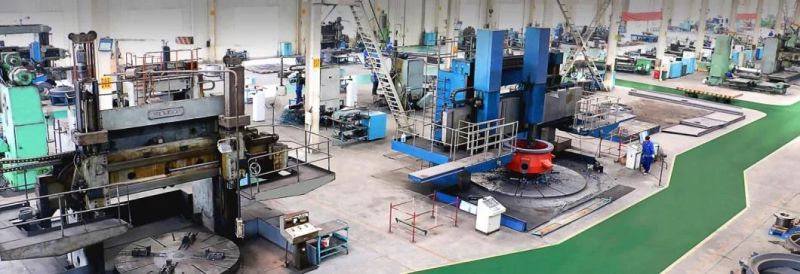

Machinery&Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates:ISO, CE,BV,TUV,GOST
R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery
ATAIRAC Crushing Solution
3000TPH downward stationary crushing&screen production line
800TPH downward mobile crushing&screen plant
300-2000 thousand tons per year steel slag recycling production line
Construction waste recycling production line
FAQ
1. How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.
2. How long is the gurantee period of your GPY hydraulic cone crusher?
We guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidence.
3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buyer.
