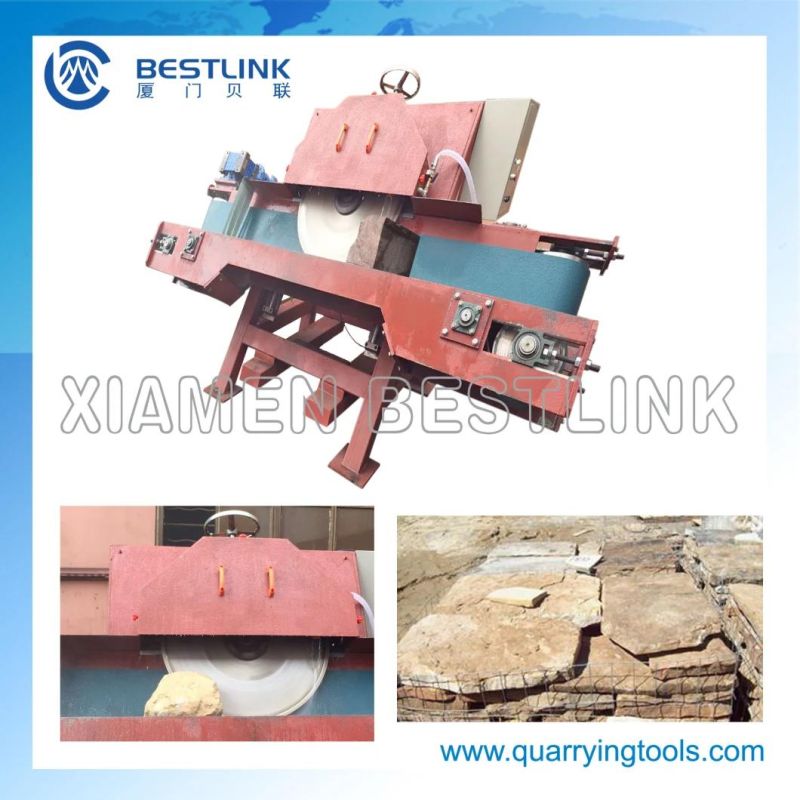

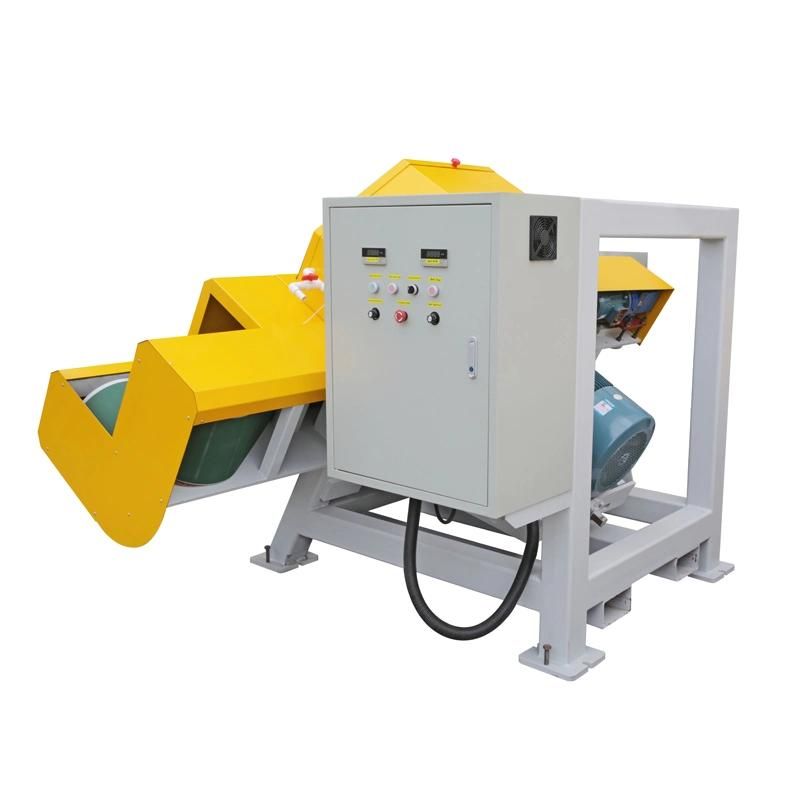

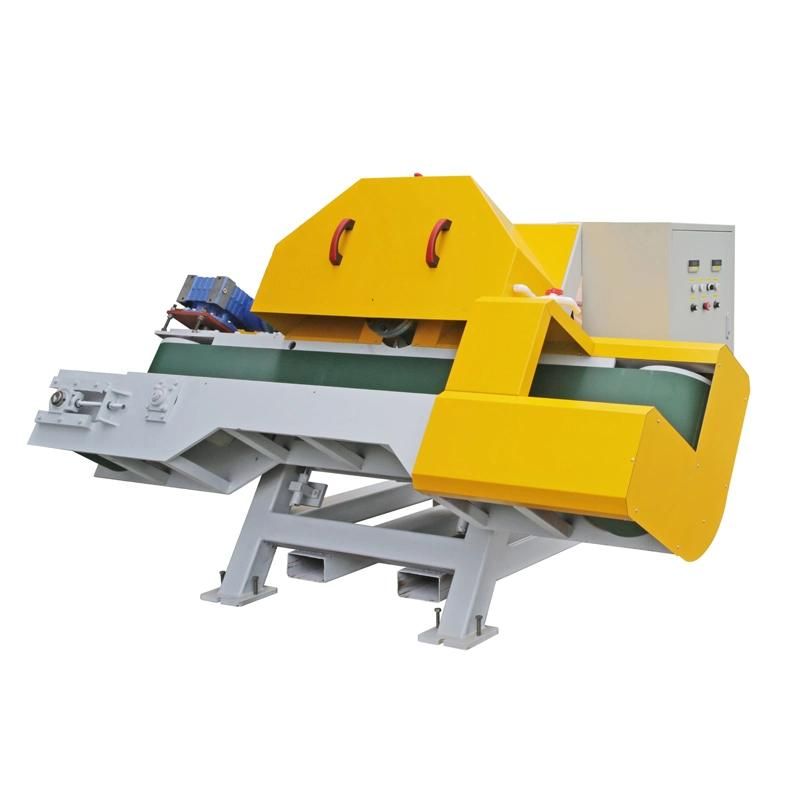

Thin Stone Veneer Saw Machine (Mighty Stone Saw Machine)

Xiamen Bestlink Factory Co., Ltd.
  • Warranty：12 Months
  • Type：CNC Cutting Machine

Base Info

  • Model NO.：VS-30,VS-60
  • Usage：Granite, Marble, Limestoe
  • Application：Construction, Mineral Industry, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：CE
  • Main Motor Power：22kw(30HP) 45kw(60HP)
  • Water Consumption：3.5m³,H
  • Transport Package：Wooden
  • Specification：750mm-1200mm
  • Trademark：BESTLINK
  • Origin：Xiamen, Fujian
  • HS Code：84791090
  • Production Capacity：200set ,Month
  • Package size per unit product：285.00cm * 190.00cm * 180.00cm
  • Gross weight per unit product：2300.000kg

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min
