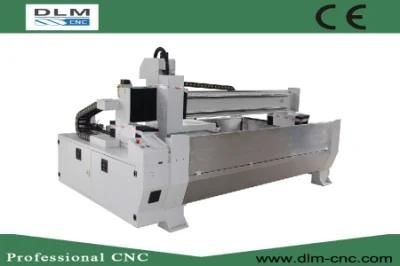

China Hearvy Duty Marble Engraving Machine
JINAN DLM CNC ROUTER CO., LTD.- Function：Cutting
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：Small Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：DLM-2513
- Certification：CE, ISO
- Current：AC
- Application：Advertising, Stone Industry
- Customized：Customized
- Spindle：5.5kw , 7.5kw
- Table：T-Slot Steel Table and Water Tank
- Motor：Servo Motor
- Controller：Taiwan Syntec
- Chiller：Cw 5000
- Rail：25mm Hiwin
- Rack：Helical Rack
- Ball Screw：High Precision
- Transport Package：Plywood Box
- Specification：1300mm*2500mm
- Trademark：DLM
- Origin：China
- HS Code：84609090
- Production Capacity：500 Sets, Year
Description
Description
Parameter
X,Y working area
2500mm*1300mm
Z working area
200mm
Table design
heavy duty
Resolution
0.05mm
Lathe structure
Seamless welded steel structure
X,Y structure
Pack and pinion transmission, Linear orbit
Z structure
Imported ball screw
Max. idling speed
40m/min
Spindle motor power
5.5Kw/ 7.5KW / water cooling
Spindle rotate speed
0-24000r/min
Working voltage
AC380V/50Hz
Working mode
Servo motor
Driver
Servo
Command
G code, HPGL, U00, mmg, plt
Operating system
Taiwan Syntec
Interface
USB
Diameter of cutter
φ3.175 , φ6 φ, 12.7mm
Dust-collect function
Yes
Working-holding
By clamp
Net weight
3000KG
