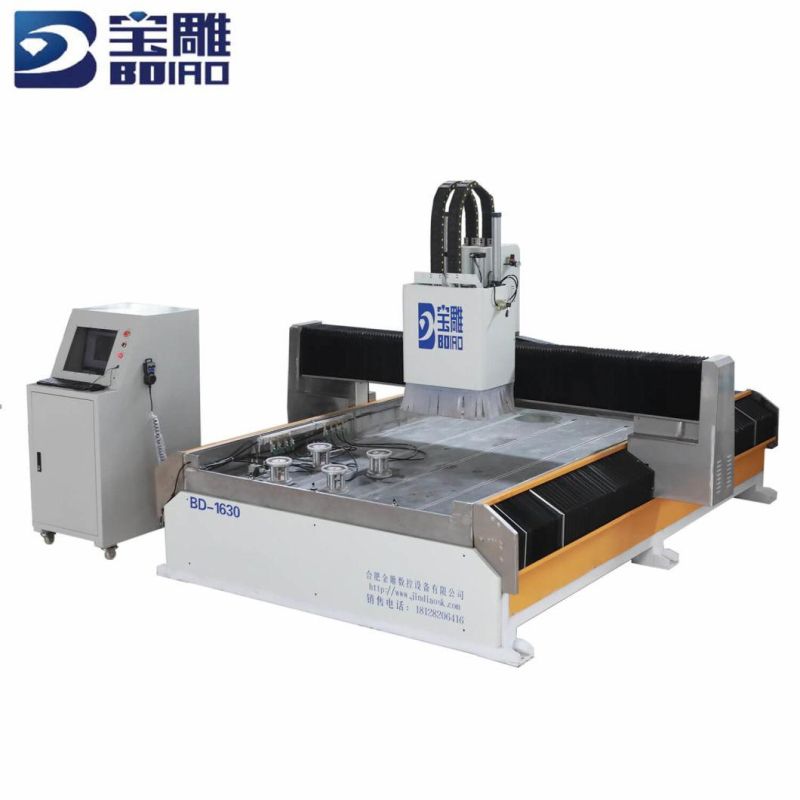

Mars CNC Router Machine/Carving Machine for Stone

Hefei Aquila CNC Equipment Co., Ltd.
  • Function:Cutting, Line Engraving
  • Application Material:Marble
  • Automation:Automatic
  • Control:CNC
  • Motor Power:High Power
  • Engraving Head Speed Adjustability:Wide Adjustable Range

Base Info

  • Model NO.:BD-1630
  • Certification:CE, ISO, SGS,BV
  • Current:AC
  • Application:Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry
  • Customized:Customized
  • Transport Package:Wrapped in Layers of Wrapping Film and Ponchos
  • Specification:1600x3000x400mm
  • Trademark:Boiro
  • Origin:Hefei City, China
  • HS Code:8464909000
  • Production Capacity:3000 Sets, Year

Description

Basic Info.

Model NO. BD-1630 Certification CE, ISO, SGS,BV Current AC Application Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry Customized Customized Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1600x3000x400mm Trademark Boiro Origin Hefei City, China HS Code 8464909000 Production Capacity 3000 Sets/ Year

Product Description

Mars CNC Router Machine/Carving Machine for Stone
Keywords:15 years experience of production
                         ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                         Three Brand: Mars, Golden Eagle,Borio

Mars CNC Router Machine/Carving Machine for Stone
Description:
China Stone Material Tea Tray Carving CNC Router Machine is BOIRO featured machine widely used in quartz stone, marble, granite and other materials made of countertop, wash basin, shaped lines, grinding and cutting process. BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.

Functions:

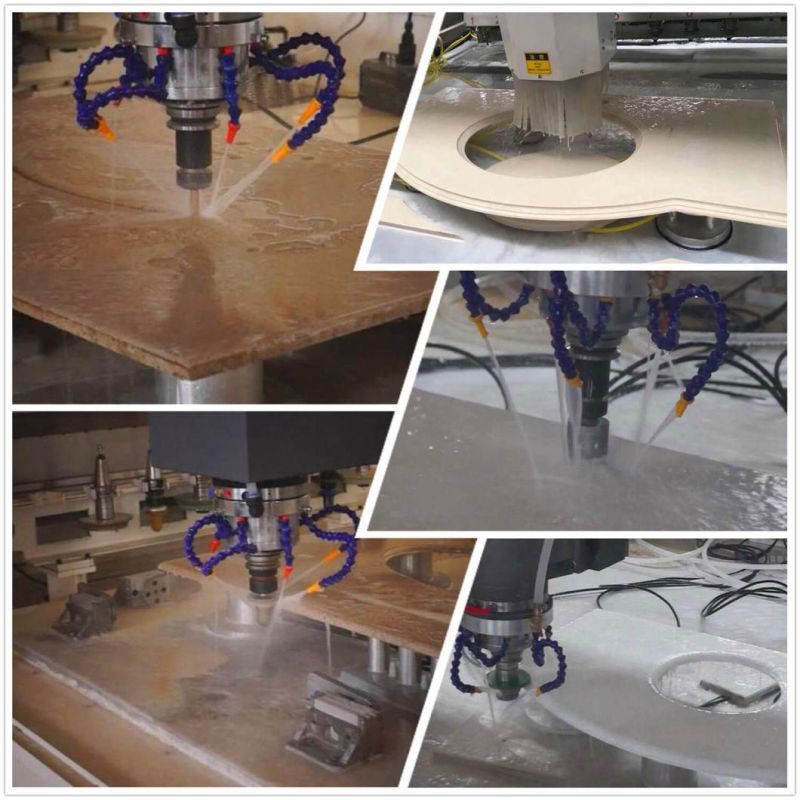

The functions of this machine include 2D sculpture,3D relief,cutting,chamfering,drilling and engraving.
Mars CNC Router Machine/Carving Machine for Stone

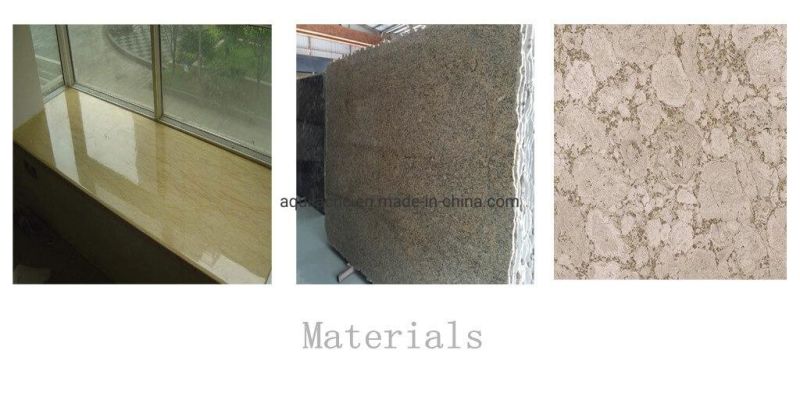

Applicable Materials:
Widely used for marble, jade, granite, tombstones, milestones,ceramic tiles,glass,bluestones and etc..
Mars CNC Router Machine/Carving Machine for Stone

Application Scope:
Suitable for stone processing, countertop, wash basin, shaped lines, grinding and cutting process, tombstone processing, mold prcessing,art relief, decoration, ceramic processing, advertising industry.
Mars CNC Router Machine/Carving Machine for Stone

Parameters:
ModelMarble and Granite Coutertops Engraving, Polishing, Chamfering CNC Machine
X/Y/Z Axis Working Area1600*3000*240mm
Machine Size4010*2700*2400mm (After disassembling, size should be around 4010*2250*2400mm)
Working TableAviation aluminum plate + engineering plastic table top
Machine StructureThick steel welded, with aging treatment
Control SystemNC Studio NC65C
Drive MotorLeadshine servo motor and Stepper driver motor
Spindle Motor Power5.5KW+7.5KW water cooled spindle
Spindle speedAdjustable Rotational Speed with 0-24000 rpm/min
InverterZoncn (Optional with Fuling)
Drive SystemX/Y axis helical rack & pinion, Z axis Taiwan ball screw
Guide RailTaiwan imported linear guide rail PMI
Cooling SystemCirculating water-refluxing design/Round Spray
Oil SystemAutomatic Oil system
Way of Fixing WorkpieceDouble-sided sealed vacuum adsorption system
Suction cup6pcs
Water and dust resistantIntelligent dust proof cooling system
Hand wheelElectric hand wheel
Profile polishing wheelMax diameter 150mm
Tool typeBT40, Φ35, Φ30
Collet/Tool holderER32, Φ10, Φ12, Φ12.7, Φ16, Φ20
Electric Motor7.5KW
Positioning cylinder6pcs
Electric ApplianceGermany Schneider
ReducerPlanetary reducer
Working accuracy±0.08mm
Re-positioning accuracy±0.05mm
Max. Traveling Speed25 m/min
Max.Working Speed15 m/min
Water Sink/TankPowder-painting (Stainless steel is optional)
Dictate FormatG-Code / HPGL
Water consumption46L/min
Air pressure0.8Mpa
Weight3000KGS
Working VoltageAC380V 3PH 50HZ
Vacuum Pump1*7.5KW

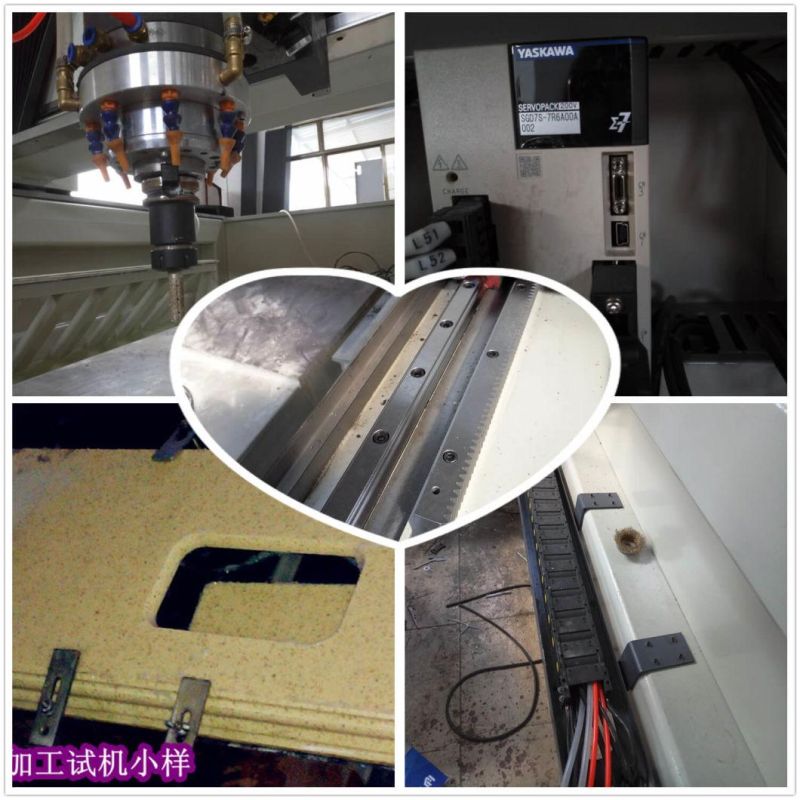

Accessories:
Mars CNC Router Machine/Carving Machine for Stone

Performance Features:
1Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability
2Famous brand big torque motor, low noise, large power, high efficiency
3Adopt imported square linear guide rail, high speed, high precision, long life
4Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength
5Reasonable dustproof and waterproof design, fully protect the machine transmission parts
6Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..
7Tools and abrasives: a large number of imported and domestic specifications and shapes of tools and abrasives, as well as a variety of processing requirements
8Vacuum adsorption device with double-sided seal makes the workpiece loading and unloading convenient, fast and accurate, ensuring that the stone is not moved when grinding and polishing

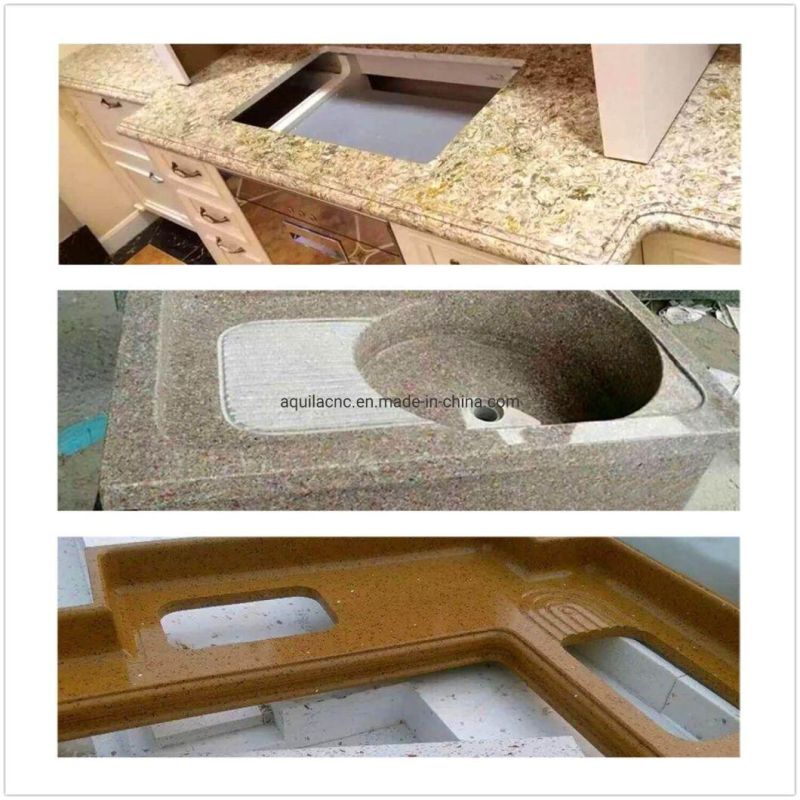

Samples:
Mars CNC Router Machine/Carving Machine for Stone

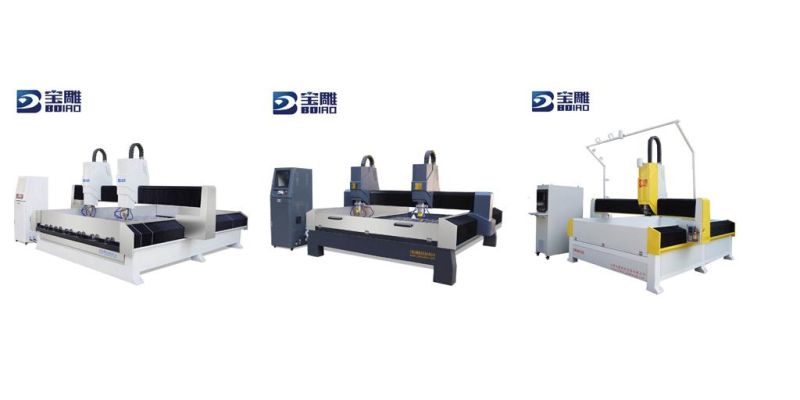

Similar Products:
