• Model NO.：BTC-2200,2500,2800
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO
• Color：Black and Yellow
• Max Blade Diameter：2200mm,2500mm,2800mm
• Max Processing Length：3000,3300,3600mm
• Max Processing Width：2200,2500mm
• Max Lifting Travel：1100,1300mm
• Main Motor：45,55kw
• Gross Motor：56,66kw
• Water Consumption：15m³,H
• Gross Weight：14000,14500,15000kgs
• Specification：7350,7850x4500,4800x3400,3700mm
• Trademark：XIANDA
• Origin：Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. BTC-2200/2500/2800 Cutting Ability High Speed Control PLC Certification ISO Color Black and Yellow Max Blade Diameter 2200mm/2500mm/2800mm Max Processing Length 3000/3300/3600mm Max Processing Width 2200/2500mm Max Lifting Travel 1100/1300mm Main Motor 45/55kw Gross Motor 56/66kw Water Consumption 15m³/H Gross Weight 14000/14500/15000kgs Specification 7350/7850x4500/4800x3400/3700mm Trademark XIANDA Origin Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

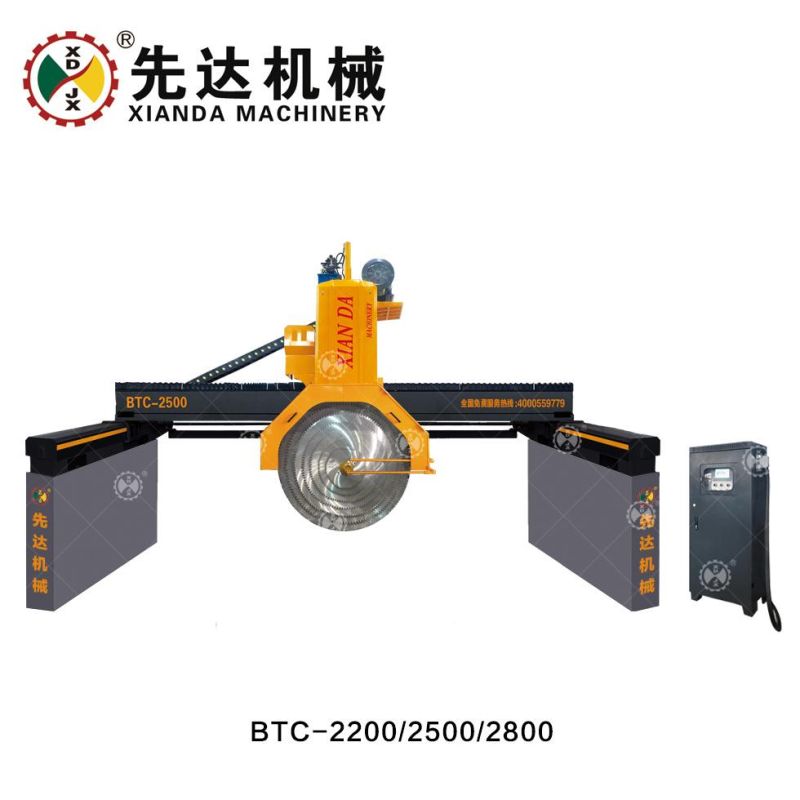

multi-blade large stone block cutting machine marble granite block cutter

BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	φ2200	φ2500	φ2800
Max processing length	mm	3600	3300	3000
Max processing width	mm	2200	2200	2200
Max lifting stroke	mm	1350	1350	1350
Main motor	kw	45/55	45/55	55
Gross motor	kw	56/66	56/66	66
Outline dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800*3700
Water consumption	m³/h	15	15	15
Gross weight	kg	14000	14500	15000



Product Show



Factory Overviews



Certifications



Our Services



We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
