• Model NO.：MS-2600
• Grinding Machine Type：Stone Polisher
• Grinding Method：Wet Grind
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Condition：New
• Main Motor：4.5,5.5kw
• Pneumatic Components：Airtec
• Max. Processing Size：2600X900mm
• After-Sales Serivces：Overseas Engineers Available
• Voltage：380V,50Hz (Others Are Available)
• Production Capacity for Granite：15-20m2,H
• Production Capacity for Marble：35-40m2,H
• Material：Strong Cast Iron
• Name：Stone Polishing Machine
• Transport Package：by Container
• Specification：3500x650x1700mm
• Trademark：wanlong
• Origin：China
• HS Code：8464209000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. MS-2600 Grinding Machine Type Stone Polisher Grinding Method Wet Grind Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Condition New Main Motor 4.5/5.5kw Pneumatic Components Airtec Max. Processing Size 2600X900mm After-Sales Serivces Overseas Engineers Available Voltage 380V/50Hz (Others Are Available) Production Capacity for Granite 15-20m2/H Production Capacity for Marble 35-40m2/H Material Strong Cast Iron Name Stone Polishing Machine Transport Package by Container Specification 3500x650x1700mm Trademark wanlong Origin China HS Code 8464209000 Production Capacity 30 Sets Per Month

Product Description

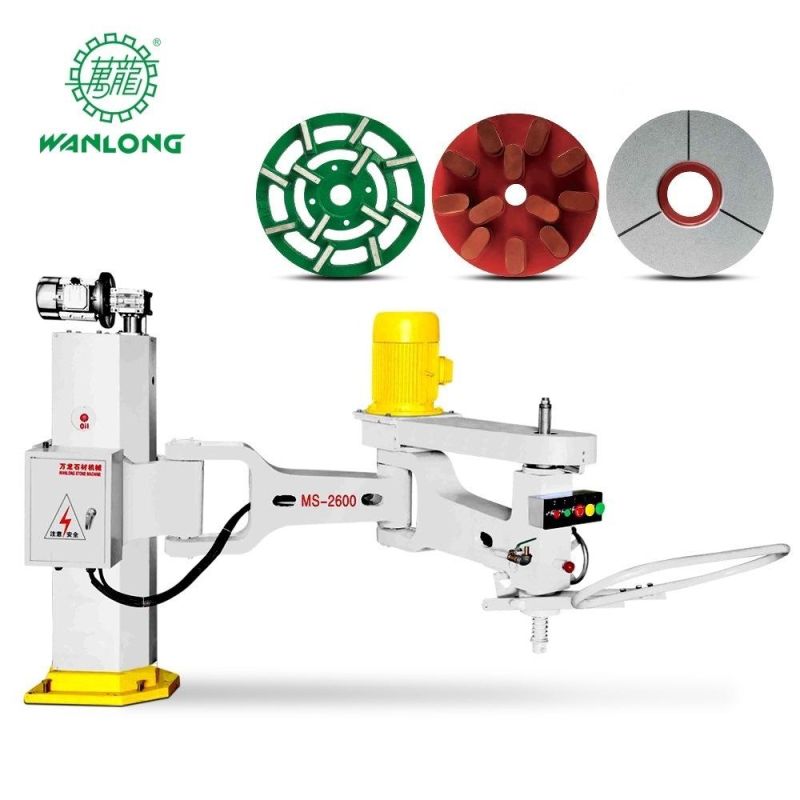

Manual stone polish machine for granite

MS-2600 Polishing Machine

This machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive    motors (single speed and dual speeds) are upon the client's choice. It is applicable to surface grinding and polishing of  granite and marble. especially for tombstones, slabs and mosaic.

Available for Arc slab polishing as well if assorted with table.

Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4.Touch sensitive Panel Easy for worker to operate.
5. 8-9 sqm per hour for medium hard marble with 20-30mm thicknesss.
Technical Parameters

Model		MS-2600
Gyro radius	mm	2600
Range of vertical stroke	mm	0-800
Grinding wheel diameter	mm	220
Overall dimensions (L x W x H)	mm	3500 x 650 x 1700
Main motor power	kw	5.5
Water consumption	m³/h	3
Approximate weight	kg	850

 Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling.

Professional Team

23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.

Company Information

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 22 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.

Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

Machinery: Wanlong Mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. More than 22 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.



Following products are supplied:

1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.

2. Dry cutting & turbo saw blade.

3. Diamond wire and beads for granite & marble.

4. Polishing abrasive.

5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.

6. Bridge Cutting Machine & Auto Polishing Machine, etc.

 1).QSQ-2200/2500 Bridge Multiblade Block Cutter

 2). QZQ-900/1200 Bridge Cutting Machine

 3).PLC-400/600 Laser Bridge Cutting Machine

 4).MS-2600/3000 Polishing Machine

 5).SY-S80 Hydraulic Pressing Machine, etc.

Kindly please any more info needed, dont heistate to contact Lisa fu At:
