3D Stone Marble CNC Carving Machine

Jinan Zhongke CNC Equipment Co., Ltd.
  • Warranty：1 Year
  • Function：Cutting, Line Engraving
  • Application Material：Marble
  • Automation：Automatic
  • Control：CNC
  • Motor Power：High Power

Base Info

  • Model NO.：1325
  • Engraving Head Speed Adjustability：Wide Adjustable Range
  • Certification：CE
  • Current：AC
  • Application：Glass, Stone Industry
  • Customized：Customized
  • Working Area：1300*2500*300mm
  • Spindle：Water Cooling Spindle(Optional Air Cooling)
  • Spindle Speed：600-24000rpm
  • Table：Aluminum T-Slot Table
  • Transmission：Helical Rack
  • Motors：Stepper Motor
  • Control System：Ncstudio Control System
  • Inverter：Sunfar Inverter
  • Delivery Time：15 Working Days
  • Transport Package：Exporting Plywood Package
  • Specification：CE
  • Trademark：ZHONGKE
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：100 Sets,Month

Description

Model

ZK-9015

Machine lathe

Whole thicker seamless steel structure

Work dimensions

1300*2500*300mm

Max. feeding height

300mm or bigger

Working table

Aluminum T-slot table with stianless steel water tank

Guide way

Imported HIWIN square orbit from Taiwan

Driving mode

XY-axis rack pinion, z-axis ball screw

Mechanical precision

0.02mm

Repositioning accuracy

0.05mm

Max. Speed

10m/min

Working speed

0-6m/min

Driving motor

Stepper motor

Software

Type 3, Art cut, Art cam and Ucancam software

Voltage

AC 380V 50Hz or 220V 50Hz

Spindle

3.2KW water cooling spindle

Spindle speed

0 - 24,000rpm/min

Blade diameter

3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm

Control system

Ncstudio control card system

Command

G code, u00, mmg, plt

Auxiliary device

Rotary chuck

Certification

CE

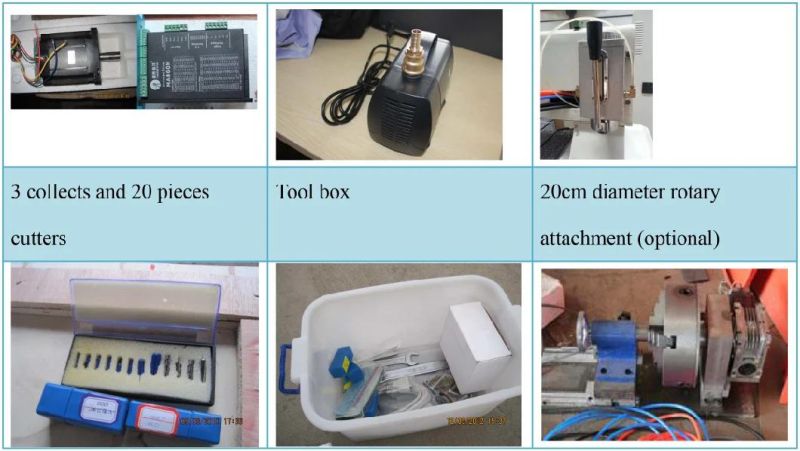

Configuration photos:
3D Stone Marble CNC Carving Machine

If you are interested in our machine, welcome to contact with me
