Best Quality Stone Mining Sand Making Impact Crusher with High Capacity
Xinxiang Great Wall Machinery Co., Ltd.- Type:Impact Crusher
- Application:Mineral Industry, Stone Industry
- Drive:Electric
- Crushing Style:Impact
- Compressive Strength (For Crushing):>300MPA
- Crushing Degree:Fine Grinding Machine
Base Info
- Model NO.:Impact Crusher
- Finished Surface:Outer Surface Process
- Certification:CE, ISO
- Condition:New
- Color:Based on Customer′s Needs
- Feed Size:0-1500mm
- Transport Package:Standard Packaging
- Specification:capacity: 70-1400 t,h
- Trademark:CHAENG
- Origin:Xinxiang City, Henan Province, China
- Production Capacity:50000 PCS , Year
Description
Basic Info.
Model NO. Impact Crusher Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Based on Customer′s Needs Feed Size 0-1500mm Transport Package Standard Packaging Specification capacity: 70-1400 t/h Trademark CHAENG Origin Xinxiang City, Henan Province, China Production Capacity 50000 PCS / YearProduct Description

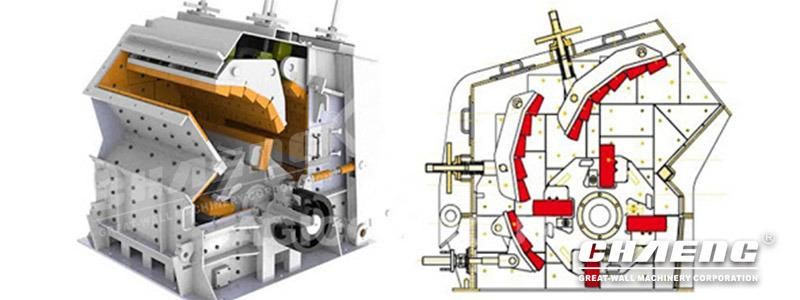

Stone Mining Impact Crusher Product descriptionBest Quality Stone Mining Sand Making Impact Crusher with High Capacity is designed and produced by Xinxiang Great Wall after absorbing advanced technologes in the world. It can handle different material with compressive strength no more than 320 MPa, and it has features of large crushing ratio, higher efficiency, easy maintenance etc. The final products are in cubic shape and are uniform in size, so this kind of crusher is the ideal choice when processing aggregate for higway pavement and hydropower construction.
![Best Quality Stone Mining Sand Making Impact Crusher with High Capacity](http://www.769669.com/uploads/image/2021/53/27/7d/01/6ea42b028a54ee6ff2d3cb94c64e23f8.jpg)
Processing capacity 70-1400 t/h
Feed size 0-1500mm
Application fields ore crushing, railways, highways, energy, cement, chemicals, construction and other industries.

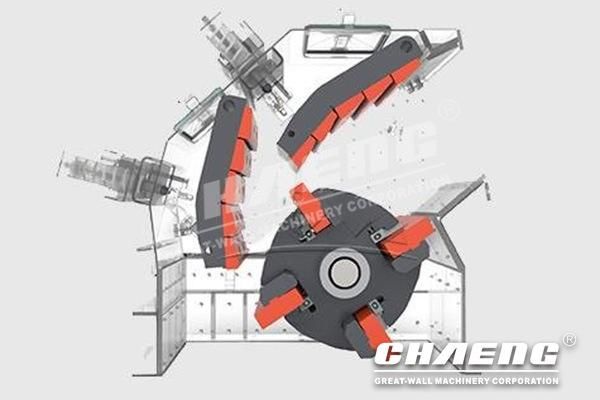

Sand Making Crusher Working Principle
The impact crusher is a crushing machine that uses impact energy to break up materials in Stone Crushing Produiction Line. When the impact crusher is working, the rotor rotates at a high speed under the driving of the motor. When the material enters the action area of the flat hammers, it is broken through the collision with the hammers on the rotor, and then is thrown to the impact device for breaking again, and then rebounds from the impact plat to the hammer action zone. The process is repeated, the material enters the first, second and third impact chambers in order from large size to small size until the material is crushed to the required particle size and discharged from the outlet port.
![Best Quality Stone Mining Sand Making Impact Crusher with High Capacity](http://www.769669.com/uploads/image/2021/c9/c8/e0/ca/94ec33ab1c933680e489a81fcb2ad1eb.jpg)

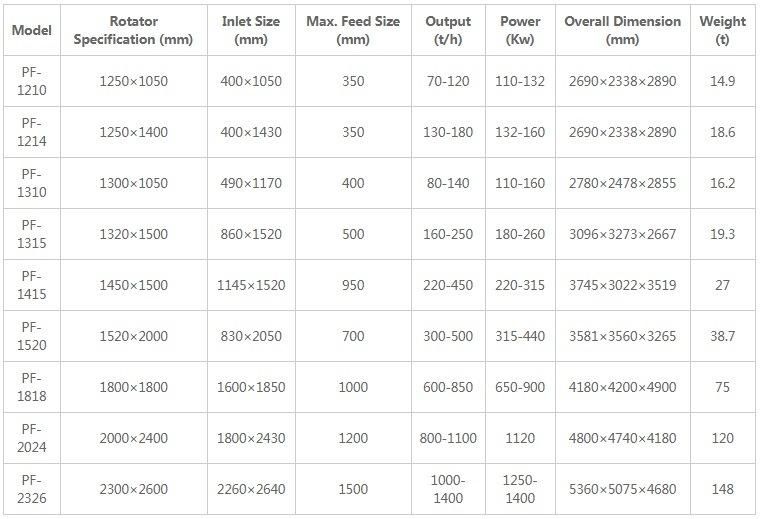

Impact Crusher Parameters
![Best Quality Stone Mining Sand Making Impact Crusher with High Capacity](http://www.769669.com/uploads/image/2021/6b/f0/95/69/95291399f4c0ff660a144ee2894285a5.jpg)
Impact Crusher Advantages
1. Multi-cavity uniform crushing, suitable for crushing rock with medium and below hardness, high efficiency and energy saving.
2. The chunky and large material inlet makes it easy to arrange the production line and increase inlet size.
3. Full hydraulic pressure start-up, and it is easy for maintenance and changing spare parts.
4. New type wear-resistant material assures the hammer, impact bracket and liner have long service life.
5. It has the functions of 3-stage crushing and shaping. The final products are in cubic shape without tension crack. The discharging size is adjustable, which simplifies the crushing process.
![Best Quality Stone Mining Sand Making Impact Crusher with High Capacity](http://www.769669.com/uploads/image/2021/19/f9/d5/42/487618b45e32b4e3486b249c08ca384d.jpg)
CHAENG's Strength
1. Based on high-end and advanced equipment

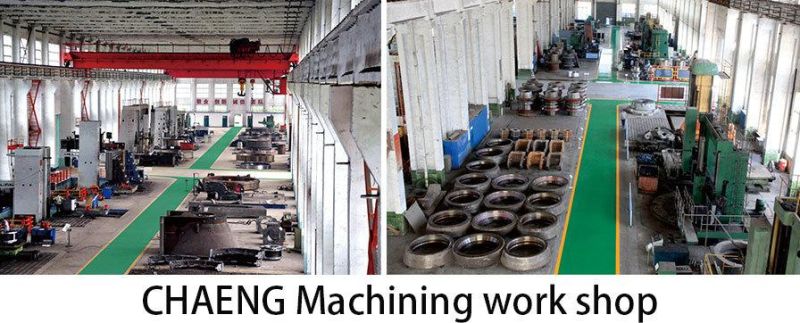

With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.
![Best Quality Stone Mining Sand Making Impact Crusher with High Capacity](http://www.769669.com/uploads/image/2021/9d/26/37/9e/1905e0a49ad0bf13016be6fce49a50a3.jpg)
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
![Best Quality Stone Mining Sand Making Impact Crusher with High Capacity](http://www.769669.com/uploads/image/2021/d1/71/92/5a/c903bcdc13c68dd7edb4d227e4433217.jpg)
