• Model NO.：ZXM-YB5

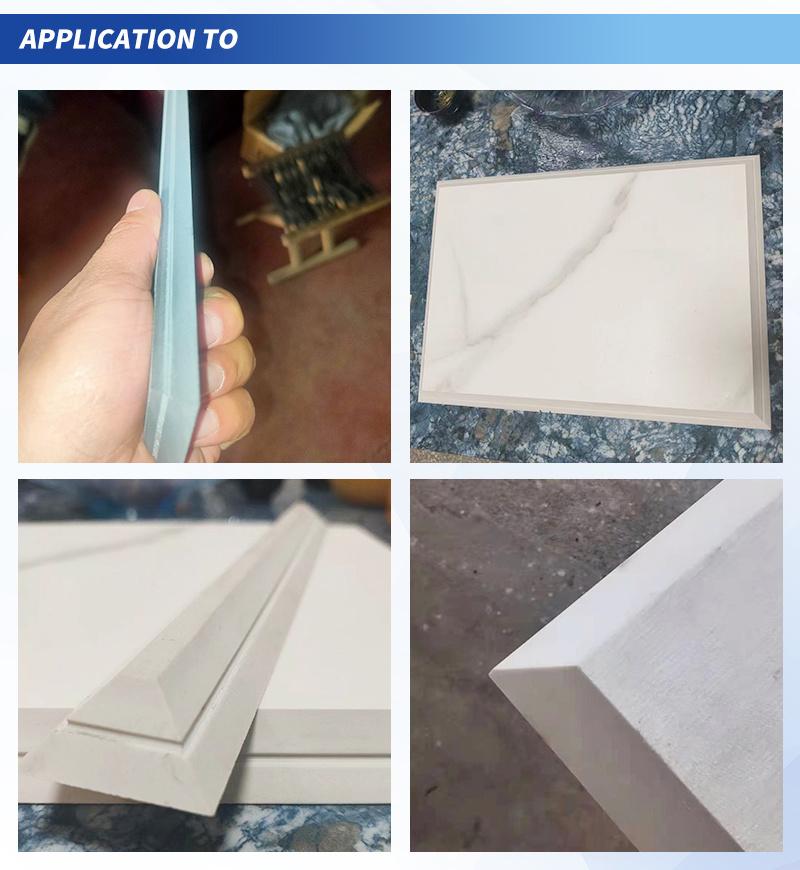

• Application：Ceramics, Stone Quartz,Marble,Granite Slab
• Type for Grinding Machine：Special Grinding Machine
• Grinding Machine Type：Barrel Polishing Machine
• Certification：ISO, CE
• Condition：New
• Machine Size：3800*1800*1730mm
• Weight：1800kg
• Thickness：2-20mm
• Angle：45°
• Mini Size：40*40mm
• Speed：0-4m,Min
• Volt. /Frequency：380V,50Hz
• Power：19.85kw

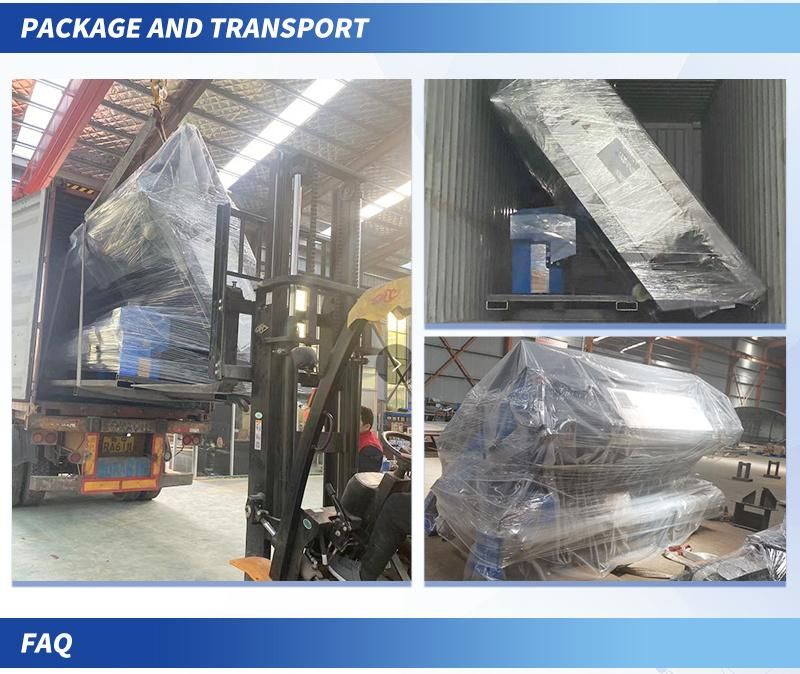

• Transport Package：PP. Film or Plywood Case
• Specification：CE
• Trademark：ZNXU
• Origin：China
• HS Code：84642010
• Production Capacity：100%

Basic Info.

Model NO. ZXM-YB5 Application Ceramics, Stone Quartz/Marble/Granite Slab Type for Grinding Machine Special Grinding Machine Grinding Machine Type Barrel Polishing Machine Certification ISO, CE Condition New Machine Size 3800*1800*1730mm Weight 1800kg Thickness 2-20mm Angle 45° Mini Size 40*40mm Speed 0-4m/Min Volt. /Frequency 380V/50Hz Power 19.85kw Transport Package PP. Film or Plywood Case Specification CE Trademark ZNXU Origin China HS Code 84642010 Production Capacity 100%

Product Description

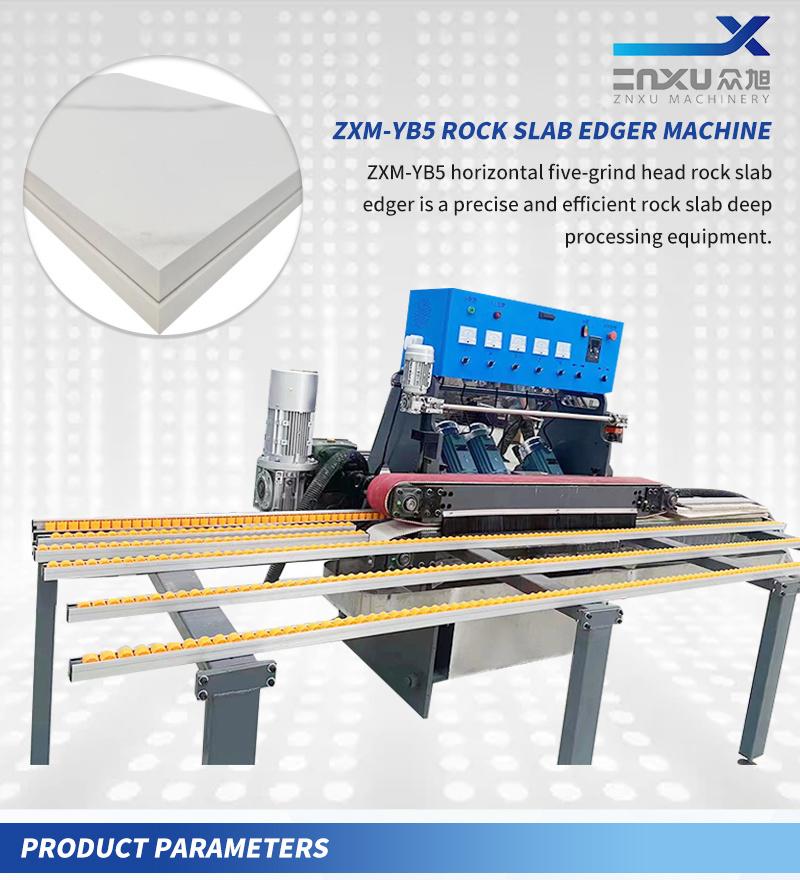

Model	ZXM-YB5
Machine Size	3800*1800*1730mm
Weight	1800kg
Thickness	2-20mm
Angle	45°
Mini size	40*40mm
Speed	0-4m/min
Volt. /Frequency	380v/50hz
Power	19.85kw
Wheels Distribution	#1 Cutter d210mm #2 Resin Wheel#240 for botom grinder #3 Resin Wheel#180 for 45° Edger #4 Resin Wheel#240 for45° Edger #5 Resin Wheel#320 45° Edger

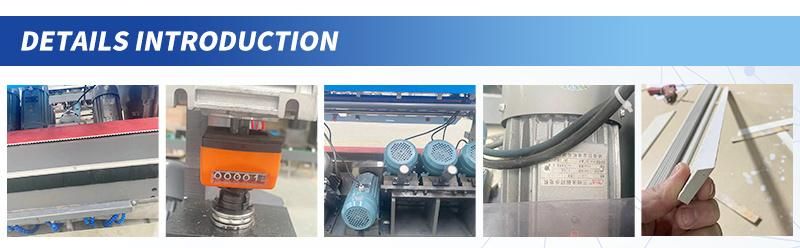

Keywords: #ceramic tiles grinding machine#ceramic tiles#grinding machine#45 chamfer#grinder machine#polishing machine#slab plate#stone#Stone Quartz#Marble#Granite Slab chamfering machineThe key supporting parts such as the guide rail frame and the motor seat are all cast iron castings and processed after natural aging. They have the advantages of flat, smooth, beautiful and non-deformed appearance, so as to ensure the accuracy of the whole machine after long-term use; Some use worm gears for variable speed, uniform and continuous speed change, and a wide range of speed adjustment (0-4 m/min) to meet the different processing needs of different manufacturers. The clamping part adopts high-quality timing belt, and the surface is adhered with PU and red glue, which not only ensures the proper clamping force and friction force, but also solves the problem that the ultra-thin rock slab is easy to be broken and difficult to be clamped and transported. The grinding system uses a three-phase high-speed motor and the latest technology grinding wheel, which is especially suitable for long-term use by the rock slab manufacturer. The platform is adopted and the synchronous belt shared with the conveying mechanism is selected to avoid surface scratches during the operation of the glass. The working parts are organically coordinated, people-oriented, and humanized design is highlighted. The method of use is simple and clear, and the grinding accuracy is stable and continuous. The whole work process can be monitored through the transparent observation window, which is clear at a glance. It is an ideal choice for slab deep processing enterprises.

Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
